Small wrist top GPS receiver with easy to read display. Multi-sport training assistant for runners, bikers, swimmers and for many other outdoor activities. Barometrical altimeter, heart rate monitoring (sensor included with pack) and wireless data exchange with USB receiver. Also well suited as bike computer.

As a personal training assistant, the GARMIN Forerunner 910XT helps to achieve your personal workout goals, regardless of if you run, bike, swim - or even all together. It records the travelled path (track), your heart rate (requires heart rate monitor), distance, time, pace or speed and computes the calories burned. When you swim, it tracks the distance and the number of strokes. The device is very easy to use, supports multiple languages and has an extremely sensitive antenna. It is the perfect partner for any outdoor activities. Supports wireless data exchange with a PC via the included USB receiver.
The optional speed and cadence sensor plus the mounting kit for handlebar make the Forerunner 910XT also well suited as a bike computer. Also, there is an optional foot pod to measure speed and distance indoor.

The Forerunner 910XT is especially well suited to provide information about your outdoor activities (track, speed, distance, elevation profile, heart rate, time a.s.o.). Use the function "mark waypoint" to get the coordinates of the current location. The device also shows distance and direction from the current location to user defined waypoints.

Differences between the various Forerunner models:

All models provide similar functions; these are the main differences:

Model / Feature Power supply Interface Heart rate monitor Navigation Dimensions
in mm		 Weight
in g		 Price
Forerunner 101 batteries (2 x AAA) - - Back to start only 83x43x23 74 discontinued
Forerunner 110 rechargeable battery USB YES
(included with the models pink and red)		 - 45x69x14 52 discontinued
Forerunner 201 rechargeable battery SERIAL - Back to start only 83x43x18 78 discontinued
Forerunner 205 rechargeable battery USB - Back to start and routes from waypoints 53x69x18 77 discontinued
Forerunner 210 rechargeable battery USB YES
(Premium monitor)		 - 45x69x14 52 discontinued
Forerunner 220 rechargeable battery USB YES
(Premium monitor)		 - 45x45x13 41 discontinued
Forerunner 225 rechargeable battery USB YES
(built-in, no belt)		 - 48x48x16 54 discontinued
Forerunner 301 rechargeable battery USB YES Back to start and routes from waypoints 83x43x18 78 discontinued
Forerunner 305 rechargeable battery USB YES Back to start and routes from waypoints 53x69x18 77 discontinued
Forerunner 310XT rechargeable battery USB (wireless) YES
(premium monitor included in the pack)		 Back to start only 54x56x19 72 discontinued
Forerunner 405 rechargeable battery USB (wireless) YES Back to start only 48x71x16 60 discontinued
Forerunner 410 rechargeable battery USB (wireless) YES
(included in the pack)		 Back to start only 48x71x16 60 discontinued
Forerunner 610 rechargeable battery USB (wireless) YES
(premium monitor included in the pack)		 Back to start only 46x64x14 72 discontinued
Forerunner 620 rechargeable battery BlueTooth, WLAN, USB YES
(HRM-Run with G-sensor included in the pack)		 - 45x45x12.5 44 discontinued
Forerunner 910XT rechargeable battery USB (wireless) YES
(premium monitor included in the pack)		 Back to start and routes from waypoints 54x61x15 72 discontinued
Forerunner 920XT rechargeable battery BlueTooth, WLAN, USB YES
(HRM-Run with G-sensor included in the pack)		 Back to start and routes from waypoints 48x55x13 61 discontinued

Please find a table with detailed technical data in our Buyer's guide.

Contents: Features - Overview - Main Pages - Training Center - Prices - Options - Downloads - Order

GARMIN Forerunner 910XT

Features:

  • Wrist top device, robust, very handy, water resistant up to 50 meters (150 feet)
  • Easy to read display with background illumination
  • Multilingual user interface in Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish and Swedish
  • Integrated 12 channel GPS receiver with very sensitive built-in SiRFstarIII antenna. The antenna is positioned behind the bended part of the housing and provides the best possible conditions for receiving the satellites signals regardless of the position of the bearer's wrist.
  • Barometrical altimeter for precise elevation recording¹
  • Chest belt with heart rate monitor (included with the "Pack", but also available as an option). The chest belt uses a digitally coded signal, which means, once a heart beat sensor and the GPS have been paired, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference.
  • Powered by built-in, rechargeable battery (lasts about 20 h), battery charger included
  • Short time to first fix (TTFF²: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
  • Firmware stored in Flash-Memory, can be updated by the user
  • Operating temperatures -20 .. 60°C (-4° .. 140°F)
  • USB stick for wireless data exchange with a PC included
  • Dimensions: 54x61x15 mm (2.1x2.4x0.6 inches)
  • Weight: 72 g (2.5 ounces); Chest belt 21 g (0.74 ounces)
  • ¹) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
  • ²) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information about your training:

  • Profile: stores personal information such as gender, weight and date of birth (in order to calculate the calories burned)
  • Stores various settings per sport mode (running, biking, swim, other), such as values to be displayed on the custom page, heart rate zones, limits etc.
  • Swim mode: Tracks distance, counts strokes, computes swolf (sum of elapsed time in seconds plus number of strokes for a particular distance), no heart rate monitoring possible in while in water.
  • Stop watch with split times (laps). Records split times either manually by pressing the "lap" key or automatically based on a user defined distance or location.
  • Auto pause: Stops the watch automatically if the current speed drops below a user defined value, e.g. when waiting at a red light or during a short break.
  • Virtual Partner: This unique feature helps you to achieve certain goals for your workout. The virtual partner will keep exactly the pace / speed required to achieve the goal you have set. Forerunner will constantly measure your current pace / speed and compares it to the virtual partner's pace / speed. It will ask you to speed up or slow down as needed and it shows on the display whether you are ahead or behind your virtual partner.
  • History: Forerunner keeps track of your workouts. It stores the date, time, number of laps, duration, distance, average speed, calories burned, average and maximum heart rate on a daily basis. It also provides weekly overviews and running totals for the duration, distance and calories burned.
  • Navigation: Indicates distance and direction from your current location to a user specific waypoint. Stores up to 100 waypoints.
  • Course: Follow a course based on previously recorded activities or downloaded from the web to match or exceed your or someone else's goal. The Forerunner tracks your workout, but also indicates if you are on your course path or not.
  • Back to start: This feature helps you to travel all the way back to the starting point of your trip.
  • Stores up to 1'000 laps.
  • Supports metric and U.S. units.
To table of contents To table of contents

GARMIN Forerunner 910XT overview:

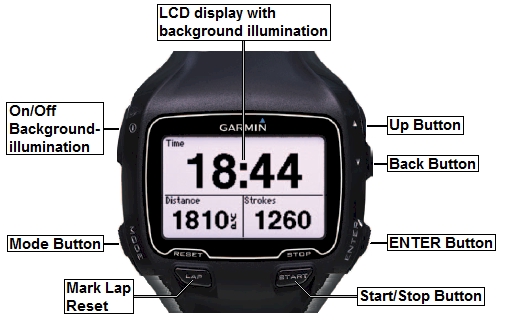

Buttons and connectors of the GARMIN Forerunner 910XT
To table of contents To table of contents

Main pages of the GARMIN Forerunner 910XT:

Note: You may configure the main pages through options. The screenshots below are just examples, the actual appearance may vary from the pages shown below depending on the current settings. Especially the content of the data fields is user configurable. You can choose from 111 different values, see the table below.

Satellites Menu Settings Waypoint
GARMIN Forerunner 910XT Satellites GARMIN Forerunner 910XT Menu GARMIN Forerunner 910XT Settings GARMIN Forerunner 910XT Waypoint
  • Current position of the satellites in the sky (upper image)
  • Accuracy of current position information
  • Strength of satellites' signals
  • Numbers of the visible satellites
  • History: Information about activities, running totals, manage goals and transfer data
  • Training settings: Time, distance, calorie, heart rate alerts etc.; Manage workouts, courses, virtual racer, multisport settings etc.
  • GPS: GPS settings and status information; Navigate back to start or to a location, save current location
  • Settings: See settings page in the next column
  • Status line with battery charging state, GPS status, current sport, current time
  • Settings for each sport type: Number of pages and number of fields for each page, choose values for each field; Auto lap, pause and scroll settings; Heart rate settings, virtual partner settings
  • System: Language, tones and vibration, display, map, time format, units, manage fitness equipment and data recording etc.
  • Manage user profiles
  • Information about the unit (firmware version etc.)
  • Status line with battery charging state, GPS status, current sport, current time
  • Symbol
  • Name (max. 16 characters)
  • Coordinates
  • Elevation above sea level
  • Delete waypoint
  • Show waypoint on map
  • Save changes and exit this page

Training Virtual Partner Compass Map
GARMIN Forerunner 910XT Training GARMIN Forerunner 910XT Virtual Partner GARMIN Forerunner 910XT Compass GARMIN Forerunner 910XT Map
  • Duration of the current workout
  • Current pace
  • Distance travelled

You can set the unit to show 1 to 4 data fields per page. Select for every field which value to show, there is a choice of 111 different values, see table below.
  • Selected pace (time per distance)
  • Your position (below) in relation to your virtual partner (above)
  • Direction to next waypoint
  • Distance to next waypoint
  • Estimated remaining time until arrival at next waypoint
  • Map with waypoint (flag), current position (triangle) and travelled path (track)
  • Current scale

Data fields on pages with user selectable data fields:

  1. You can configure the device to show values in english or metric units.
  2. Speed is measured in distance per time, usually kilometers per hour (km/h) or miles per hour (mi/h).
  3. Pace is measured in time per distance, usually minutes and seconds per kilometer (/km) or mile (/mi).
  4. FTP: The Functional Threshold Power is by definition the Normalized Power for an all out effort of 60 minutes, used to automatically compute the seven power ranges, see what is threshold power
  5. For detailed information about power metrics, see normalized power (NP), intensity factor (IF), and training-stress-score (TSS) as well as training stress scores (TSS) provided by TrainingPeaks.
  6. Swim efficiency index: Sum of time in seconds plus number of strokes that it takes to swim 25 meters.
  7. Swolf score: Sum of time in seconds plus number of strokes that it takes to swim one pool length.
  8. For each data field, you can choose one from the following 111 values. However the actual available values depend on the currently selected type of sport. the following sport types are available:
    1. Run
    2. Bike
    3. Swim in Open Water (GPS enabled)
    4. Swim in Pool (GPS disabled)
    5. Other
No A B C D E Name Explanation
1
X


Balance Contribution of the left and the right leg to the total power output in percent (requires optional 3rd party power meter).
2
X


Balance - 3s Average Average contribution of the left and the right leg to the total power output during the last 3 seconds in percent (requires optional 3rd party power meter).
3
X


Balance - 10s Average Average contribution of the left and the right leg to the total power output during the last 10 seconds in percent (requires optional 3rd party power meter).
4
X


Balance - 30s ØAverage Average contribution of the left and the right leg to the total power output during the last 30 seconds in percent (requires optional 3rd party power meter).
5
X


Balance - Average Average contribution of the left and the right leg to the total power output during this workout in percent (requires optional 3rd party power meter).
6
X


Balance - Lap Average contribution of the left and the right leg to the total power output during the current lap in percent (requires optional 3rd party power meter).
7 X X


Cadence Revolutions of the crank arm (cadence) per minute or number of steps per minute (requires a speed and cadence sensor or a foot-pod which are available as options).
8 X X


Cadence - Average Average cadence or average number of steps for this workout (requires a speed and cadence sensor or a foot-pod which are available as options).
9 X X


Cadence - Lap Average cadence or average number of steps for the current lap (requires a speed and cadence sensor or a foot-pod which are available as options).
10 X X


Cadence - Last Lap Average cadence or average number of steps for the last completed lap (requires a speed and cadence sensor or a foot-pod which are available as options).
11 X X X X X Calories Calories burned during this workout.
12 X X

X Calories - Fat Fat calories burned during this workout (requires a new leaf assessment).
13 X X X X X Distance Distance travelled during this workout.
14

X X
Distance - Interval Distance travelled during the current swim interval.
15 X X

X Distance - Lap Distance travelled during this lap.
16

X X
Distance - Last Interval Distance travelled during the last completed swim interval.
17 X X

X Distance - Last Lap Distance travelled during last completed lap.
18



X Distance - Nautical Distance travelled in nautical miles.
19

X X
Efficiency - Average Average swim efficiency index for the current workout.
20

X X
Efficiency - Interval Swim efficiency index for the current interval.
21

X X
Efficiency - Last Interval Swim efficiency index for the last completed interval.
22


X
Efficiency - Last Length Swim efficiency index for the last completed pool length.
23 X X

X Elevation Current altitude above sea level.
24 X X X
X GPS Accuracy The current accuracy of your GPS determined position.
25 X X

X Grade Current grade computed from elevation change over distance.
26 X X X
X Heading The direction in which you are currently moving.
27 X X

X Heart Rate Current heart rate (heart beats per minute, bpm) (requires heart rate monitor which is included in the pack but is also available as an option).
28 X X

X Heart Rate - %HRR Percentage of heart rate reserve (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
29 X X

X Heart Rate - %Max Percentage of maximum heart rate (requires heart rate monitor which is included in the pack but is also available as an option).
30 X X

X Heart Rate - Average Average heart rate for this workout (requires heart rate monitor which is included in the pack but is also available as an option).
31 X X

X Heart Rate - Average %HRR Average percentage of heart rate reserve for this workout (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
32 X X

X Heart Rate - Average %Max Average percentage of maximum heart rate for this workout (requires heart rate monitor which is included in the pack but is also available as an option).
33 X X

X Heart Rate - Lap Average heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option).
34 X X

X Heart Rate - Lap %HRR Average percentage of heart rate reserve for this lap (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
35 X X

X Heart Rate - Lap %Max Average percentage of maximum heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option).
36 X X

X Heart Rate - Last Lap Average heart rate for the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option).
37
X

X Heart Rate Graph Graphical representation of the heart rate zone over time (requires heart rate monitor which is included in the pack but is also available as an option).
38 X X

X Heart Rate Zone Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires heart rate monitor which is included in the pack but is also available as an option).
39 X X

X Laps Number of completed laps.
40


X
Lengths Number of completed pool lengths.
41


X
Lengths - Interval Number of completed pool lengths during the current interval.
42


X
Lengths - Last Interval Number of completed pool lengths during the last interval.
43 X


X Pace Current pace (time per distance unit).
44 X
X X X Pace - Average Average pace during the current workout.
45

X X
Pace - Interval Average pace during the current swim interval.
46 X


X Pace - Lap Average pace for current lap.
47 X


X Pace - Last Lap Average pace for last completed lap.
48

X X
Pace - Last Interval Average pace for last completed swim interval.
49


X
Pace - Last Length Average pace for last completed pool length.
50
X


Power Current power output (requires optional 3rd party power meter).
51
X


Power - 3s Average Average power output during the last 3 seconds moving (requires optional 3rd party power meter).
52
X


Power - 10s Average Average power output during the last 10 seconds moving (requires optional 3rd party power meter).
53
X


Power - 30s Average Average power output during the last 30 seconds moving (requires optional 3rd party power meter).
54
X


Power - Average Average power output during this workout (requires optional 3rd party power meter).
55
X


Power - Intensity Factor (IF) The ratio of the Normalized Power (NP) to the functional threshold power (FTP), see TrainingPeaks for details (requires optional 3rd party power meter).
56
X


Power - Kilojoules Total (cumulative) power output during this workout (requires optional 3rd party power meter).
57
X


Power - Lap Average power output during this lap (requires optional 3rd party power meter).
58
X


Power - Last Lap Average power output during the last completed lap (requires optional 3rd party power meter).
59
X


Power - Max Maximum power output achieved during this workout (requires optional 3rd party power meter).
60
X


Power - Max Lap Maximum power output achieved during the current lap (requires optional 3rd party power meter).
61
X


Power - Normalized Power (NP) An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current workout, see TrainingPeaks for details (requires optional 3rd party power meter).
62
X


Power - Normalized Power (NP) Lap An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current lap, see TrainingPeaks for details (requires optional 3rd party power meter).
63
X


Power - Normalized Power (NP) Last Lap An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the last completed lap, see TrainingPeaks for details (requires optional 3rd party power meter).
64
X


Power - Training Stress Score (TSS) A composite number that takes into account the duration and intensity of a workout to arrive at a single estimate of the overall training load and physiological stress created by that training session, see TrainingPeaks for details (requires optional 3rd party power meter).
65
X


Power - Watts/kg Power output in watts per kilogram of your body weight (requires optional 3rd party power meter).
66
X


Power Zone Current power zone (1..7). The zones are based on your FTP or user settings (requires optional 3rd party power meter).
67 X X

X Speed Current speed (distance per time unit).
68 X X

X Speed - Average Average speed since the last reset.
69 X X

X Speed - Lap Average speed for this lap.
70 X X

X Speed - Last Lap Average speed for the last completed lap.
71 X X

X Speed - Max Maximum speed since last reset.
72



X Speed - Nautical Current speed in nautical miles.
73 X X

X Speed - Vertical 30s Average vertical speed during the last 30 seconds moving.
74 X X

X Speed - Vertical Rate of ascent or descent.
75 X X X X X Sport Symbol for the current sport mode: Running, biking, swimming in open water (outdoors), swimming in pool (indoors), other.
76 X



Steps Number of steps during the current workout.
77 X



Steps - Lap Number of steps during the current lap.
78 X



Steps - Last Lap Number of steps during the last completed lap.
79

X

Stroke Distance - Average Average distance travelled during one stroke.
80

X

Stroke Distance - Interval Average stroke distance during the current interval.
81

X

Stroke Distance - Last Interval Average stroke distance during the last completed interval.
82

X X
Stroke Rate Average number of strokes per minute (spm) during the swim workout.
83

X X
Stroke Rate - Interval Average number of strokes per minute during the current interval.
84

X X
Stroke Rate - Last Interval Average number of strokes per minute during the last completed interval.
85


X
Stroke Rate - Last Length Average number of strokes per minute during the last completed pool length.
86


X
Stroke Type Stroke type determined during the current interval: backstroke, breaststroke, butterfly, freestyle, mixed.
87


X
Stroke Type - Last Interval Stroke type determined during the last completed interval.
88


X
Stroke Type - Last Length Stroke type determined during the last completed pool length.
89

X X
Strokes Number of strokes during the current workout.
90


X
Strokes - Interval Number of strokes during the current interval.
91

X X
Strokes - Last Interval Number of strokes during the last completed interval.
92


X
Strokes - Last Length Number of strokes during the last completed pool length.
93


X
Strokes/Length - Last Interval Average number of strokes per pool length during the last completed interval.
94


X
Strokes/Length - Average Average number of strokes per pool length during the current workout.
95 X X X
X Sunrise Time of sunrise at the current position.
96 X X X
X Sunset Time of sunset at the current position.
97


X
Swolf - Average Average swolf score for the current workout.
98


X
Swolf - Interval Swolf score for the current interval.
99


X
Swolf - Last Interval Swolf score for the last completed interval.
100


X
Swolf - Last Length Swolf score for the last completed pool length.
101 X X X X X Time Stopwatch time.
102 X X

X Time - Average Lap Average time for the completed laps.
103 X X X X X Time - Elapsed Time since last reset.
104

X X
Time - Interval Elapsed time for the current swim interval.
105 X X

X Time - Lap Elapsed time for the current lap.
106

X X
Time - Last Interval Elapsed time for the last completed swim interval.
107 X X

X Time - Last Lap Elapsed time for the last completed lap.
108 X X X X X Time of Day Current time.
109 X X

X Total Ascent Total elevation gain for the current workout.
110 X X

X Total Descent Total elevation loss for the current workout.
111 X X


Training Effect Current training impact on your aerobic fitness (1.0 .. 5.0 corresponds to recovery, maintains, improves, highly improves your fitness, temporary overload).
To table of contents To table of contents

Training Center:

You may download this software either from GARMIN's website or from our server, see Downloads below. The software requires a PC with Windows 2000 or later and an USB connector or an Intel-based Mac or PowerPC (G3 or newer) running OS X 10.4 or later with an USB connector. Training Center provides the following features:

Examples:

Hint: Click on the images for an enlargement

User profile Overview graphics Overview graphics
Training Center user profile Training Center overview graphics 1 Training Center overview graphics 2
Username, gender, weight, date of birth, speed zones etc. Calendar, logs, track, graphical representation for elevation and pace Calendar, logs, track, graphical representation for grade and speed

Overview values Graph speed over time Detailed map with track
Training Center overview totals Training Center graph speed over time Training Center detailed map
Calendar, logs, totals, graphical representation Graphical representation speed over time If you own a map with detailed information (e.g Topo Switzerland), you can display the track on these maps as well

Training schedule Workout (example 1) Workout (example 2)
Training Center training schedule Training Center workout 1 Training Center workout 2
The Training Center helps you to manage work outs and training schedules.
To table of contents To table of contents

Prices:

This model has been discontinued; however, you can still order options for the Forerunner 910XT.

To table of contents To table of contents

Options:

Power supply with USB connector (cable not included)
(One such power supply comes with the Forerunner 910XT)		 Add item to shopping basket CHF 17 [Picture and details]
USB power cable
(One such power cable comes with the Forerunner 910XT)		 Add item to shopping basket CHF 20 [Picture and details]
Belt for premium heart rate monitor
(Such a belt comes with the Forerunner 910XT Pack)		 Add item to shopping basket CHF 38 [Picture and details]
Expander strap black
(Such an expander strap comes with the Forerunner 910XT)		 Add item to shopping basket CHF 8 [Picture and details]
Mounting kit for handlebar Add item to shopping basket CHF 22 [Picture and details]
Front mounting kit for handlebar
(Requires quick release kit)		 Add item to shopping basket CHF 59 [Picture and details]
Straps for quick release kit
(One set with mounting straps comes with the quick release kit)		 Add item to shopping basket CHF 9 [Picture and details]
USB ANT stick
(Such a USB stick comes with the Forerunner 910XT)		 Add item to shopping basket CHF 49 [Picture and details]
Soft case Add item to shopping basket CHF 23 [Picture and details]

All options for the GARMIN Forerunner 910XT in detail.

To table of contents To table of contents

Downloads:

Here we provide additional documentation and software updates related to the Forerunner 910XT.

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.
To table of contents To table of contents

Order:

To order options for the GARMIN Forerunner 910XT please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents To table of contents

Specifications and packaging of the products are subject to change without notice.

Home | GPS | Special Offers | Deutsch

TRAMsoft GmbH
Laettenweg 19 / CH-8335 Hittnau / Switzerland
Contact
Last modification: 06/30/2024 (RA)

(This document was created with TRAMsoft XbCMS V1.3-00, does not require any browser specific features and is compliant with the W3C standard "HTML 4.01 Transitional")
