The Edge 510 supports the Russian GLONASS satellites

Small GPS receiver, designed as personal training assistant and bike computer with high-sensitive antenna, large, easy to read color display with touchscreen and USB interface. Faster and more precise position tracking thanks to additional support for GLONASS satellites.

As a personal training assistant, the GARMIN Edge 510 records the travelled path (track), distance, time, computes the calories burned and helps to achieve your personal workout goals. The device is very easy to use, supports multiple languages and has an extremely sensitive antenna. It is the perfect partner for any biking activities. The built-in USB interface supports data exchange with a PC.

If you have an iPhone or an Android smartphone, you may connect it with your Edge 510 using Bluetooth. Use this feature to download up-to-date weather forecasts and to share your position and workout data with your friends in real-time (live tracking). The free App Garmin Connect Mobile must be installed on your smartphone in order to use this functionality.

This device is especially well suited to provide information about your outdoor activities (track, speed, maximum speed, distance, elevation profile, time a.s.o.). The coordinates of the current location are shown on the satellite page. The device also shows the current location on the map in relation to user defined or downloaded routes (so called courses).

Differences between the various Edge models:

All models provide similar functions; these are the main differences:

Feature / Model	Display	Touchscreen	Shows map	Slot for µSD memory card	Barometrical altimeter	Heart rate, speed/cadence	Data fields	Price
Edge 205	gray scale 128x160	-	-	-	-	-	23	Discontinued
Edge 305	gray scale 128x160	-	-	-	YES	YES	32	Discontinued
Edge 500	gray scale 128x160	-	-	-	YES	YES	45	Discontinued
Edge 510	color 176x220	YES	-	-	YES	YES	84	Discontinued
Edge 520	color 200x265	-	-	-	YES	YES	135	Discontinued
Edge 605	color 176x220	-	YES	YES	-	-	23	Discontinued
Edge 705	color 176x220	-	YES	YES	YES	YES	32	Discontinued
Edge 800	color 160x240	YES	YES	YES	YES	YES	69	Discontinued
Edge 810	color 160x240	YES	YES	YES	YES	YES	84	Discontinued
Edge 1000	color 240x400	YES	YES	YES	YES	YES	94	Discontinued

Please find a table with detailed technical data in our Buyer's guide.

Contents: Features - Overview - Main Pages - Prices - Options - Downloads - Order

Features:

Best suited to be fixed on a bike, robust, very handy
Easy to read color display with background illumination (176x220 pixels)
Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish
Integrated antenna to receive signals of GPS and GLONASS satellites. The accuracy of the position tracking gets increased by combining the two systems because there are usually more satellites visible.
Powered by built-in, rechargeable battery (lasts about 20 h), battery charger included
Chest belt with heart rate monitor. The chest belt uses a digitally coded signal, which means, once a heart beat sensor and the GPS have been paired, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference. Heart rate monitor either included in the package or available as an option.
Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 55°C (-4° .. 130°F)
USB interface (connection cable included)
Dimensions: 52x86x24 mm (2.0x3.4x0.9 inches)
Weight: 80 g (2.8 ounces)
Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (IPX7)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

Information about your training:

Personal profile: Stores personal information such as gender, weight and date of birth (in order to calculate the calories burned)
Bike profile: Stores the weight of three different bikes.
Stop watch with split times (laps). Records split times either manually by pressing the "lap" key or automatically based on a user defined distance or position.
Auto pause: Stops the watch automatically if the current speed drops below a user defined value, e.g. when waiting at a red light or during a short break.
Speed alert: Goes off when the current speed exceeds a user defined upper limit or when the current speed drops below a user defined lower limit.
Distance alert: Goes off after you have travelled a user defined distance. The alert can be set to go off only once or repetitive.
Time alert Goes off after a user defined time period. The alert can be set to go off only once or repetitive.
Virtual Partner: This unique feature helps you to achieve certain goals for your workout. The goals are based on a previous drive over the same track or on a course downloaded over the Internet. You may adjust the time for your current workout. The virtual partner will keep exactly the speed required to achieve the goal you have set. The Edge 510 will constantly measure your current speed and compares it to the virtual partner's speed. It will ask you to speed up or slow down as needed and it shows on the display whether you are ahead or behind your virtual partner.
History: The Edge 510 keeps track of your workouts. It stores the date, time, number of laps, duration, distance, average speed, calories burned, average and maximum heart rate on a daily basis. It also provides weekly overviews and running totals for the duration, distance and calories burned.
Stores up to 180 hours of training data.
Supports metric and U.S. units.

To table of contents

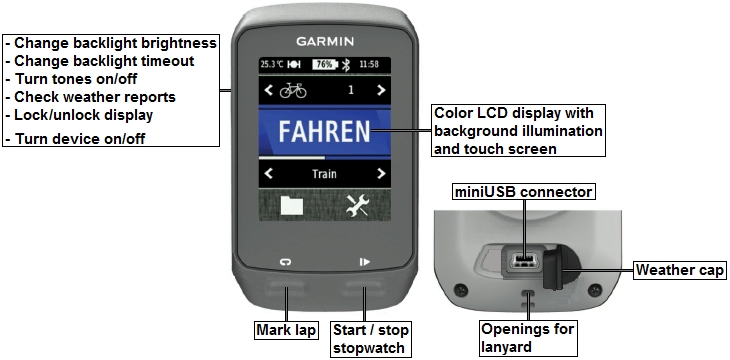

GARMIN Edge 510 overview:

To table of contents

Main pages of the GARMIN Edge 510:

Hint: The images below show the display of the Edge 510 in true resolution (176x220 pixels). This does not necessarily mean that the display is shown it its true size (35x44 mm). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 87 different values grouped in 12 categories, see selection.

Main Page	Satellites	Compass	Virtual Partner

Ambient temperature GPS status Battery level Bluetooth status Current time of day Change bike profile Change activity profile Data of previous rides, manage courses, workouts, personal records Settings	Coordinates of the current location Position of the satellites in the sky Current elevation above sea level Strength of the satellites signals Back Accuracy of the position indication	Coordinates of the current location Current heading and bearing to the next waypoint Back to the map	Preset speed (goal) Increase or decrease speed Virtual partner (top), your own position (bottom) Distance ahead or behind Time ahead or behind

Settings (1 of 2)	Settings (2 of 2)	System Settings (1 of 2)	System Settings (2 of 2)

Activity profiles Bike profiles Bluetooth settings System settings Quit To next settings	Settings for heart rate monitor User profile Training zones Pairing with weight scale Quit To previous settings	GPS: Mode, save current location, show satellites Display: Background illumination, background color, calibrate touch screen, color mode Data recording: Storage location (internal memory or memory card), data averaging Units: Metric or English, position format and map datum Back To next system settings	Device reset: Start setup assistant, factory reset Select language Turn tones on or off Configure auto power off About: Shows current firmware version, unit ID, copyright information (not shown) Back To previous system settings To next system settings

Bike Profile (1 of 2)	Bike Profile (2 of 2)	Activity Profile (1 of 2)	Activity Profile (2 of 2)

Name of the bike Icon (choice of 12 icons) Bike's weight Wheel size (manual input or automatic) Back	Bike's weight Wheel size (manual input or automatic) Odometer (user changeable) Crank length (manual input or automatic) Back Supports 10 different bike profiles	Name of the activity profile Color of the activity profile Training pages (select pages, number of pages, number of data fields per page, select data fields) Alarms (time, distance, calories, heart rate, cadence, power) Back To next activity settings Delete activity profile	Auto pause settings when stopped or below a custom speed Auto lap settings (based on location or distance) Auto page scrolling (off, slow, fast) Configure start notice about stop watch Back To previous activity settings Delete activity profile

User Profile	Display	Display	Elevation Profile

Gender Age Weight Height Your sports activities (not shown) Back To next user settings	Current speed Distance travelled during this ride Current cadence (number of rotations of the cranks per minute)	Duration of this activity (stop watch) Current speed Distance travelled during this ride Current time of day Current elevation above sea level Current heading Current accuracy of the position indication Current charging level of the battery Current lap distance Calories burned	Elevation profile with scales Change scale Back Total accumulated ascent Current elevation above sea level
	These pages support from 1 to 10 data fields. There is a choice of 87 different values grouped in 12 categories, see selection.

Ride (1 of 3)	Ride (2 of 3)	Ride (3 of 3)	Personal Records

Date and time of the beginning of the ride Duration of the ride Travelled distance during this ride Number of completed laps Back To next values	Date and time of the beginning of the ride Number of completed laps Average speed Maximum speed Back To previous values To next values	Date and time of the beginning of the ride Calories burned Total accumulated ascent Total accumulated descent Back To previous values	Farthest distance travelled during one ride Shortest time to travel 40 km Most accumulated ascent during one ride Best power output during 20 minutes (not shown)

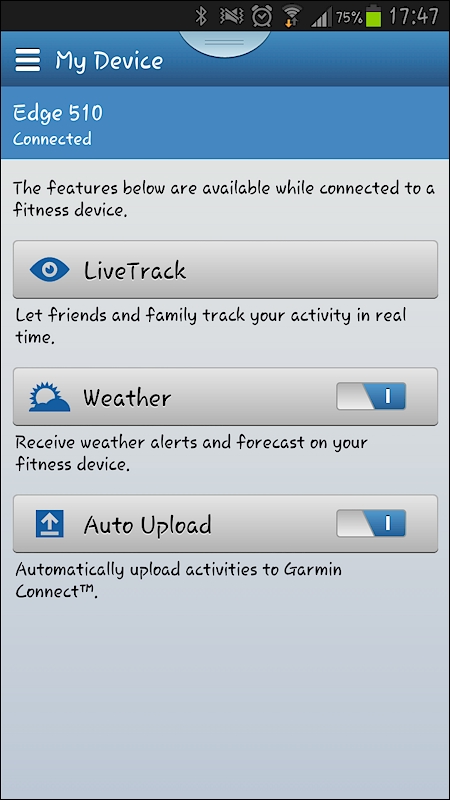

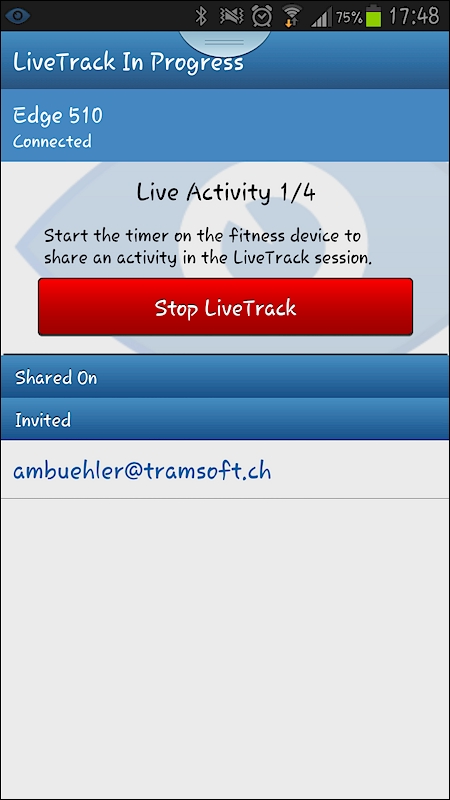

Map	Bluetooth	Garmin Connect Mobile Settings	Garmin Connect Mobile Live Tracking
		(Click on the image for an enlargement)	(Click on the image for an enlargement)
Map with waypoints (orientation north up or track up) Change scale; center on current position or pan map Current position (blue triangle) Travelled path (track, blue line) Back Current scale	Turn Bluetooth on/off Name of your Edge 510 Name of the smartphone with which the Edge is currently paired Back	Information about the features Live Track, weather and automatic upload to Garmin Connect in the App Garmin Connect Mobile on a Smartphone	Informationen about Live Track in the App Garmin Connect Mobile on a Smartphone

Live Activity - Map		Live Activity - Satellite Image with Graphics
(Click on the image for an enlargement)		(Click on the image for an enlargement)
Name of the person performing the activity Current average speed, duration, distance travelled and elevation gain Map with travelled path (track)		Name of the person performing the activity Current average speed, duration, distance travelled and elevation gain Satellite image with travelled path (track) Graphics with speed and elevation
The data gets updated every 60 seconds. Requires the person performing the activity to carry a compatible smartphone with the App Garmin Connect Mobile installed and having an active network connection.

Data fields on pages with user selectable data fields:

For each data field, you can choose one from the following 87 values.
For faster access, the values are grouped in 12 categories.
You can configure the device to show values in english or metric units.
FTP: The Functional Threshold Power is by definition the Normalized Power for an all out effort of 60 minutes, used to automatically compute the seven power ranges, see what is threshold power
For detailed information about power metrics, see normalized power (NP), intensity factor (IF), and training-stress-score (TSS) as well as training stress scores (TSS) provided by TrainingPeaks.

No	Category	Name	Description
1	Cadence	Cadence	Revolutions of the crank arm (cadence) per minute (requires a speed and cadence sensor which is included in the pack but is also available as an option).
2		Cadence Average	Average cadence for the current activity (requires a speed and cadence sensor which is included in the pack but is also available as an option).
3		Cadence Lap	Average cadence for the current lap (requires a speed and cadence sensor which is included in the pack but is also available as an option).
4	Calories	Calories	Calories burned during this activity.
5	Calories	Calories - Fat	Fat calories burned during this activity (requires a new leaf assessment).
6	Courses	Course Point Distance	Remaining distance to the next point on the current course.
7		Distance to Destination	Distance to the final destination of the current route.
8		Distance to Go	Remaining distance to reach the distance target set by the current course or workout.
9		Distance to Next	Remaining distance to the next waypoint of the current route.
10		ETA at Destination	Estimated arrival time at the final destination of the current route.
11		ETA at Next	Estimated arrival time at the next waypoint of the current route.
12		Heading	Current moving direction.
13		Time to Destination	Remaining time to reach the final destination of the current route.
14		Time to Go	Remaining time to reach the time target set by the current workout.
15		Time to Next	Remaining time to reach the next waypoint of the current route.
16	Distance	Distance	Distance travelled during this activity.
17		Distance - Lap	Distance travelled during this lap.
18		Distance - Last Lap	Distance travelled during the last completed lap.
19		Odometer	Accumulated distance travelled during all activities since last reset of this counter.
20	Elevation	Elevation	Current elevation above sea level.
21		Grade	Current grade computed from elevation change over distance.
22		Total Ascent	Total elevation gain during the current activity.
23		Total Descent	Total elevation loss during the current activity.
24		Vertical Speed	Current rate of ascent or descent.
25		VS - 30s Average	Average vertical speed during the last 30 seconds moving.
26	General	Battery Level	Current charge level of the battery.
27		GPS Accuracy	Current accuracy of the position determined by the GPS.
28		GPS Signal Strength	Current strength of the satellites' signals.
29		Sunrise	Time of sunrise at the current position.
30		Sunset	Time of sunset at the current position.
31		Temperature	Current ambient temperature.
32		Time of Day	Current time of day.
33	Heart Rate	Heart Rate	Current heart rate (heart beats per minute, bpm) (requires heart rate monitor which is included in the pack but is also available as an option).
34		HR - %HRR	Percentage of heart rate reserve (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
35		HR - %Max.	Percentage of maximum heart rate (requires heart rate monitor which is included in the pack but is also available as an option).
36		HR - Average	Average heart rate for this activity (requires heart rate monitor which is included in the pack but is also available as an option).
37		HR - Average %HRR	Average percentage of heart rate reserve for this activity (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
38		HR - Average %Max.	Average percentage of maximum heart rate for this activity (requires heart rate monitor which is included in the pack but is also available as an option).
39		HR - Lap	Average heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option).
40		HR - Lap %HRR	Average percentage of heart rate reserve for this lap (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
41		HR - Lap %Max	Average percentage of maximum heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option).
42		HR - Last Lap	Average heart rate for the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option).
43		HR Graph	Graphical representation of the heart rate zone over time (requires heart rate monitor which is included in the pack but is also available as an option).
44		HR to Go	Difference between the current heart rate and the target heart rate for this activity (requires heart rate monitor which is included in the pack but is also available as an option).
45		HR Zone	Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires heart rate monitor which is included in the pack but is also available as an option).
7	Navigation	Distance to Destination	Distance to the final destination of the current route.
9		Distance to Next	Remaining distance to the next waypoint of the current route.
10		ETA at Destination	Estimated arrival time at the final destination of the current route.
11		ETA at Next	Estimated arrival time at the next waypoint of the current route.
12		Heading	Current moving direction.
46		Location at Destination	Name of the waypoint at the final destination of the current route.
47		Location at Next	Name of the next waypoint of the current route.
13		Time to Destination	Estimated remaining time to reach the final destination of the current route.
15		Time to Next	Estimated remaining time to reach the next waypoint of the current route.
48	Power	Balance	Contribution of the left and the right leg to the total power output in percent (requires optional 3rd party power meter).
49		Balance - 3s Average	Average contribution of the left and the right leg to the total power output during the last 3 seconds in percent (requires optional 3rd party power meter).
50		Balance - 10s Average	Average contribution of the left and the right leg to the total power output during the last 10 seconds in percent (requires optional 3rd party power meter).
51		Balance - 30s Average	Average contribution of the left and the right leg to the total power output during the last 30 seconds in percent (requires optional 3rd party power meter).
52		Balance - Average	Average contribution of the left and the right leg to the total power output during this activity in percent (requires optional 3rd party power meter).
53		Balance - Lap	Average contribution of the left and the right leg to the total power output during the current lap in percent (requires optional 3rd party power meter).
54		Pedal Smoothness	Average torque in percent of the maximum torque of the cranks (requires optional 3rd party power meter).
55		Power	Current power output (requires optional 3rd party power meter).
56		Power - %FTP	Current power output in %FTP ("Functional Threshold Power") (requires optional 3rd party power meter).
57		Power - 3s Average	Average power output during the last 3 seconds moving (requires optional 3rd party power meter).
58		Power - 10s Average	Average power output during the last 10 seconds moving (requires optional 3rd party power meter).
59		Power - 30s Average	Average power output during the last 30 seconds moving (requires optional 3rd party power meter).
60		Power - Average	Average power output during this activity (requires optional 3rd party power meter).
61		Power - IF	Intensity Factor: The ratio of the Normalized Power (NP) to the functional threshold power (FTP), see TrainingPeaks for details (requires optional 3rd party power meter).
62		Power - kJ	Current power output in kilojoule (requires optional 3rd party power meter).
63		Power - Lap	Average power output during this lap (requires optional 3rd party power meter).
64		Power - Lap Max.	Maximum power output achieved during the current lap (requires optional 3rd party power meter).
65		Power - Last Lap	Average power output during the last completed lap (requires optional 3rd party power meter).
66		Power - Max.	Maximum power output achieved during this activity (requires optional 3rd party power meter).
67		Power - NP	Normalized Power: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current workout, see TrainingPeaks for details (requires optional 3rd party power meter).
68		Power - NP Lap	Normalized Power Lap: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current lap, see TrainingPeaks for details (requires optional 3rd party power meter).
69		Power - NP Last Lap	Normalized Power Last Lap: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the last completed lap, see TrainingPeaks for details (requires optional 3rd party power meter).
70		Power - TSS	Training Stress Score: A composite number that takes into account the duration and intensity of a workout to arrive at a single estimate of the overall training load and physiological stress created by that training session, see TrainingPeaks for details (requires optional 3rd party power meter).
71		Power - Watts/kg	Power output in watts per kilogram of your body weight (requires optional 3rd party power meter).
72		Power Zone	Current power zone (1..7). The zones are based on your FTP or user settings (requires optional 3rd party power meter).
73		Torque Effectiveness	Sum of clockwise pedaling power minus anti-clockwise drag (requires optional 3rd party power meter).
74	Speed	Speed	Current speed (distance per time unit).
75		Speed - Average	Average speed for current activity.
76		Speed - Lap	Average speed for current lap.
77		Speed - Last Lap	Average speed for the last completed lap.
78		Speed - Max.	Maximum speed for current activity.
79		Speed Zone	Current range (zone) of speed (1..10). Speed zones are based on your FTP or defined by your custom settings.
80	Timer	Laps	Number of completed laps.
81		Time	Stopwatch time for the current activity.
82		Time - Average Lap	Average time for all completed laps.
83		Time - Elapsed	Duration of the current activity including stopped time.
84		Time - Lap	Elapsed time for the current lap.
85		Time - Last Lap	Duration of the last completed lap.
86	Workouts	Calories to Go	Remaining calories to reach the target set by the current workout.
8		Distance to Go	Remaining distance to reach the distance target set by the current course or workout.
87		Reps to Go	Remaining number of repetitions to go to reach the target set by the current workout.
14		Time to Go	Remaining time to reach the time target set by the current workout.

To table of contents

Prices:

This model has been discontinued; however, you can still order options for the Edge 510.

To table of contents

Options:

Power supply without USB cable (One such power supply comes with the Edge 510)	CHF 17	[Picture and details]
USB cable for data exchange and power supply (One such cable comes with the Edge 510)	CHF 14	[Picture and details]
Power cord for car cigarette lighter	CHF 43	[Picture and details]
Mounting set (One set with two mounting kits comes with the Edge 510)	CHF 13	[Picture and details]
Straps for mounting set (One set with mounting straps comes with the Edge 510)	CHF 9	[Picture and details]
Front mounting kit for handlebar	CHF 59	[Picture and details]
Soft case	CHF 23	[Picture and details]

All options for the GARMIN Edge 510 in detail.

To table of contents

Downloads:

Here we provide additional documentation and software updates related to the Edge 510.

Owner's manual (as PDF):
- English (3.4 MB)
- French (3.3 MB)
- German (3.3 MB)
- Italian (3.3 MB)
Quick start guide (as PDF):
- English (2.8 MB)
- French (2.8 MB)
- German (2.8 MB)
- Italian (2.8 MB)
Firmware Upgrade V6.10 (Use Web-Updater to install this version)
List of changes made with firmware upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for the GARMIN Edge 510 please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
