Small GPS receiver, designed as personal training assistant and bike computer with high-sensitive antenna, large, easy to read color display with touchscreen, integrated base map, barometrical altimeter plus USB interface. Package with speed/cadence sensor and heart rate monitor. The Edge 810 has approx. 72 MB of built-in memory to store optional maps with even more detailed information, such as local roads, restaurants and points of interest. In addition, it has a slot for a standard µSD memory card.

As a personal training assistant, the GARMIN Edge 810 records the travelled path (track), the elevation profile, your heart rate, distance, time, computes the calories burned and helps to achieve your personal workout goals. The device is very easy to use, supports multiple languages and has an extremely sensitive antenna. It is the perfect partner for any biking activities. Beside the GPS receiver, the Edge 810 has a barometrical altimeter. The built-in USB interface supports data exchange with a PC.

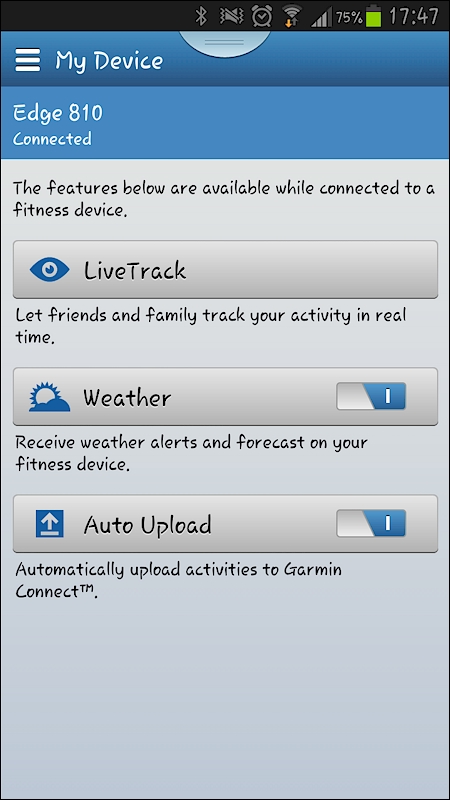

If you have an iPhone or an Android smartphone, you may connect it with your Edge 810 using Bluetooth. Use this feature to download up-to-date weather forecasts and to share your position and workout data with your friends in real-time (live tracking). The free App Garmin Connect Mobile must be installed on your smartphone in order to use this functionality.

Differences between the various Edge models:

All models provide similar functions; these are the main differences:

Feature / Model	Display	Touchscreen	Shows map	Slot for µSD memory card	Barometrical altimeter	Heart rate, speed/cadence	Data fields	Price
Edge 205	gray scale 128x160	-	-	-	-	-	23	Discontinued
Edge 305	gray scale 128x160	-	-	-	YES	YES	32	Discontinued
Edge 500	gray scale 128x160	-	-	-	YES	YES	45	Discontinued
Edge 510	color 176x220	YES	-	-	YES	YES	84	Discontinued
Edge 520	color 200x265	-	-	-	YES	YES	135	Discontinued
Edge 605	color 176x220	-	YES	YES	-	-	23	Discontinued
Edge 705	color 176x220	-	YES	YES	YES	YES	32	Discontinued
Edge 800	color 160x240	YES	YES	YES	YES	YES	69	Discontinued
Edge 810	color 160x240	YES	YES	YES	YES	YES	84	Discontinued
Edge 1000	color 240x400	YES	YES	YES	YES	YES	94	Discontinued

Please find a table with detailed technical data in our Buyer's guide.

Contents: Features - Overview - Main Pages - Prices - Options - Downloads - Order

Features:

Best suited to be fixed on a bike, robust, very handy
Easy to read color display with background illumination (160x240 pixels)
Very easy to use thanks to its touchscreen
Multilingual, graphical user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish
Integrated 12 channel GPS receiver with very sensitive built-in antenna
Integrated base map
Approx. 72 MB of built-in memory to store even more detailed maps with local roads, points of interest etc. You may transfer these maps from a PC to the GPS
Slot for standard micro SD memory card ("TransFlash"). Memory cards are available as an option.
Premium chest belt with heart rate monitor. The chest belt uses a digitally coded signal, which means, once a heart beat sensor and the GPS have been paired, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference. Heart rate monitor either included in the package or available as an option.
Speed and cadence sensor: Measures the number of revolutions of the back wheel and the crank arm with magnets and a wireless sensor. Like the heart rate monitor, this sensor uses a digitally coded signal. Once paired with the Edge 810, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference. Speed/cadence sensor either included in the package or available as an option.
Barometrical altimeter for precise elevation recording¹, accuracy ±3 m (10 feet), resolution ±30 cm (1 foot)
Short time to first fix (TTFF²: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Powered by built-in, rechargeable battery (lasts about 17 h), battery charger included
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 55°C (-4° .. 130°F)
USB interface (connection cable included)
Dimensions: 54x93x25 mm (2x3.7x1 inches)
Weight: 98 g (3.5 ounces)
Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (IPX7)

¹) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
²) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information about your training:

Personal profile: Stores personal information such as gender, weight and date of birth (in order to calculate the calories burned)
Bike profile: Stores the weight of three different bikes.
Stop watch with split times (laps). Records split times either manually by pressing the "lap" key or automatically based on a user defined distance or position.
Auto pause: Stops the watch automatically if the current speed drops below a user defined value, e.g. when waiting at a red light or during a short break.
Virtual Partner: This unique feature helps you to achieve certain goals for your workout. The virtual partner will keep exactly the speed required to achieve the goal you have set. The Edge 810 will constantly measure your current speed and compares it to the virtual partner's speed. It will ask you to speed up or slow down as needed and it shows on the display whether you are ahead or behind your virtual partner. The following options are available:
1. Speed: Set a speed target. You may change the speed target during the activity.
2. Previous activity: You may use a previous activity as a target for your current activity. If you stored a track of a previous ride, your virtual partner will follow it exactly, but you may change the speed as needed.
3. Activity from the Internet: You may download one of your own or someone else's ride from GARMIN Connect to use as a target for your current activity. Your virtual partner will follow the ride exactly, but you may change the speed as needed.
History: The Edge 810 keeps track of your workouts. It stores the date, time, number of laps, duration, distance, average speed, calories burned, average and maximum heart rate on a daily basis. It also provides weekly overviews and running totals for the duration, distance and calories burned.
Navigation: Indicates your current location on the map and in relation to user defined waypoints or routes. You can create routes with these waypoints. The GPS will guide you from one waypoint to the next indicating current direction and distance. Number of routes only limited by memory space available.
Back to start: This feature helps you to travel all the way back to the starting point of your trip.
Stores up to 200 waypoints with name (up to 8 characters) and icon (choice of more than 30 symbols).
Stores up to 180 hours of training data.
Supports metric and U.S. units.

To table of contents

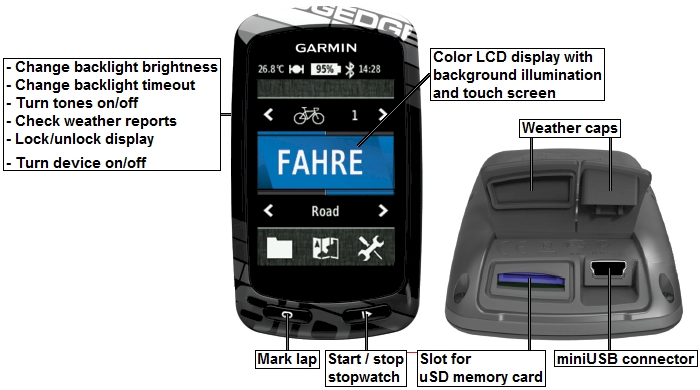

GARMIN Edge 810 overview:

To table of contents

Main pages of the GARMIN Edge 810:

Hint: The images below show the display of the Edge 810 in true resolution (160x240 pixels). This does not necessarily mean that the display is shown it its true size (36x55 mm). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 87 different values grouped in 12 categories, see selection.

Main Page	Satellites	Compass	Virtual Partner

Ambient temperature GPS status Battery level Bluetooth status Current time of day Change bike profile Change activity profile Data of previous rides, manage courses, workouts, personal records Map Settings	Coordinates of the current location Position of the satellites in the sky Current elevation above sea level Strength of the satellites signals Back Accuracy of the position indication	Coordinates of the current location Current heading and bearing to the next waypoint Back to the map	Preset speed (goal) Increase or decrease speed Virtual partner (top), your own position (bottom) Distance ahead or behind Time ahead or behind

Settings (1 of 2)	Settings (2 of 2)	System Settings (1 of 2)	System Settings (2 of 2)

Activity profiles Bike profiles Bluetooth settings System settings Settings for heart rate monitor Quit To next settings	System settings Settings for heart rate monitor User profile Training zones Pairing with weight scale Quit To previous settings	GPS: Mode, save current location, show satellites Display: Background illumination, background color, calibrate touch screen, color mode Data recording: Storage location (internal memory or memory card), data averaging Units: Metric or English, position format and map datum Device reset: Start setup assistant, factory reset Back To next system settings	Device reset: Start setup assistant, factory reset Select language Turn tones on or off Configure auto power off About: Shows current firmware version, unit ID, copyright information Back To previous system settings

User Profile	Bike Profile	Activity Profile (1 of 2)	Activity Profile (2 of 2)

Gender Age Weight Height Your sports activities Back	Name of the bike Icon (choice of 12 icons) Bike's weight Wheel size (manual input or automatic) Odometer (user changeable) Crank length (manual input or automatic) (not shown) Back Supports 10 different bike profiles	Name of the activity profile Color of the activity profile Training pages (select pages, number of pages, number of data fields per page, select data fields) Navigation settings (map view, routing settings) Alarms (time, distance, calories, heart rate, cadence, power) Back To next activity settings Delete activity profile	Alarms (time, distance, calories, heart rate, cadence, power) Auto pause settings when stopped or below a custom speed Auto lap settings (based on location or distance) Auto page scrolling (off, slow, fast) Configure start notice about stop watch Back To previous activity settings Delete activity profile

Display	Display	Display	Elevation Profile

Current speed Distance travelled with this particular bike	Distance to final destination Current charging level of the battery Current heart rate Current ambient temperature	Current heart rate Current grade Distance travelled during this ride Current time of day Current elevation above sea level Current heading Current accuracy of the position indication Current charging level of the battery Current lap distance Calories burned	Elevation profile with scales Change scale Back Total accumulated ascent Current elevation above sea level
These pages support from 1 to 10 data fields. There is a choice of 87 different values grouped in 12 categories, see selection.

Ride (1 of 3)	Ride (2 of 3)	Ride (3 of 3)	Personal Records

Date and time of the beginning of the ride Duration of the ride Travelled distance during this ride Number of completed laps Back To next values	Date and time of the beginning of the ride Average speed Maximum speed Calories burned Back To previous values To next values	Date and time of the beginning of the ride Maximum speed Calories burned Total accumulated ascent Total accumulated descent Back To previous values	Farthest distance travelled during one ride Shortest time to travel 40 km Most accumulated ascent during one ride Best power output during 20 minutes

Map (vector view)	Map (pattern view)	Direction	Directions

Map in vector view (orientation north up or track up) Change scale; center on current position or pan map Current position (blue triangle) Travelled path (track, blue line) Back Current scale Hint: This screenshot was taken using the map Swiss Topo which is available as an option.	Map in pattern view (orientation north up or track up) Change scale; center on current position or pan map Current position (blue triangle) Travelled path (track, blue line) Back Current scale Hint: This screenshot was taken using the map Swiss Topo V3 which is available as an option.	Direction Distance to next turn Estimated time to next turn Zoomed map with planned route (violet line) and turn (white arrow) Back To previous direction To next direction	Directions with distance to turn and type of turn Back To previous directions To next directions

Sensors / Connections	Weather	Garmin Connect Mobile Settings	Garmin Connect Mobile Live Tracking
		(Click on the image for an enlargement)	(Click on the image for an enlargement)
Status GPS satellites Status ANT sensors: Heart rate monitor, scale, speed and cadence sensor, power sensor Status connections: Bluetooth, Life Track, weather data, automatic upload to GARMIN Connect Quit To the weather pages	Location of the weather data Last update of the weather data Weather, temperature, wind direction and speed Back To hourly weather forecast (next 3 hours)	Information about the features Live Track, weather and automatic upload to Garmin Connect in the App Garmin Connect Mobile on a Smartphone	Information about Live Track in the App Garmin Connect Mobile on a Smartphone

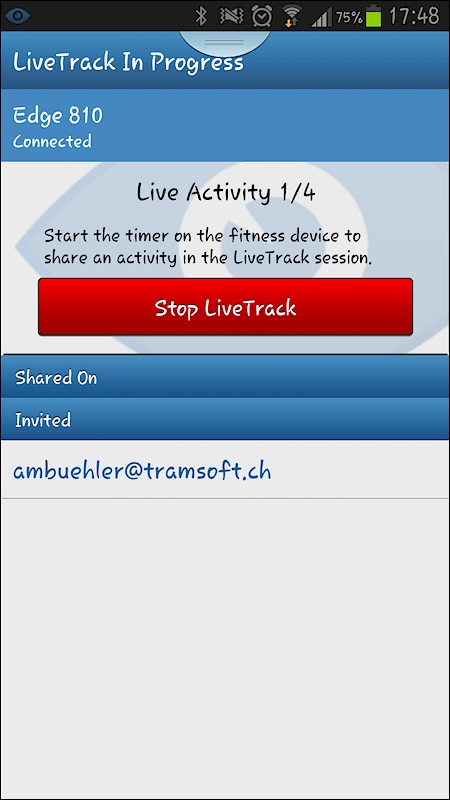

Live Activity - Map		Live Activity - Satellite Image with Graphics
(Click on the image for an enlargement)		(Click on the image for an enlargement)
Name of the person performing the activity Current average speed, duration, distance travelled and elevation gain Map with travelled path (track)		Name of the person performing the activity Current average speed, duration, distance travelled and elevation gain Satellite image with travelled path (track) Graphics with speed and elevation
The data gets updated every 60 seconds. Requires the person performing the activity to carry a compatible smartphone with the App Garmin Connect Mobile installed and having an active network connection.

Data fields on pages with user selectable data fields:

For each data field, you can choose one from the following 87 values.
For faster access, the values are grouped in 12 categories.
You can configure the device to show values in english or metric units.
FTP: The Functional Threshold Power is by definition the Normalized Power for an all out effort of 60 minutes, used to automatically compute the seven power ranges, see what is threshold power
For detailed information about power metrics, see normalized power (NP), intensity factor (IF), and training-stress-score (TSS) as well as training stress scores (TSS) provided by TrainingPeaks.

No	Category	Name	Description
1	Cadence	Cadence	Revolutions of the crank arm (cadence) per minute (requires a speed and cadence sensor which is included in the pack but is also available as an option).
2		Cadence Average	Average cadence for the current activity (requires a speed and cadence sensor which is included in the pack but is also available as an option).
3		Cadence Lap	Average cadence for the current lap (requires a speed and cadence sensor which is included in the pack but is also available as an option).
4	Calories	Calories	Calories burned during this activity.
5	Calories	Calories - Fat	Fat calories burned during this activity (requires a new leaf assessment).
6	Courses	Course Point Distance	Remaining distance to the next point on the current course.
7		Distance to Destination	Distance to the final destination of the current route.
8		Distance to Go	Remaining distance to reach the distance target set by the current course or workout.
9		Distance to Next	Remaining distance to the next waypoint of the current route.
10		ETA at Destination	Estimated arrival time at the final destination of the current route.
11		ETA at Next	Estimated arrival time at the next waypoint of the current route.
12		Heading	Current moving direction.
13		Time to Destination	Remaining time to reach the final destination of the current route.
14		Time to Go	Remaining time to reach the time target set by the current workout.
15		Time to Next	Remaining time to reach the next waypoint of the current route.
16	Distance	Distance	Distance travelled during this activity.
17		Distance - Lap	Distance travelled during this lap.
18		Distance - Last Lap	Distance travelled during the last completed lap.
19		Odometer	Accumulated distance travelled during all activities since last reset of this counter.
20	Elevation	Elevation	Current elevation above sea level.
21		Grade	Current grade computed from elevation change over distance.
22		Total Ascent	Total elevation gain during the current activity.
23		Total Descent	Total elevation loss during the current activity.
24		Vertical Speed	Current rate of ascent or descent.
25		VS - 30s Average	Average vertical speed during the last 30 seconds moving.
26	General	Battery Level	Current charge level of the battery.
27		GPS Accuracy	Current accuracy of the position determined by the GPS.
28		GPS Signal Strength	Current strength of the satellites' signals.
29		Sunrise	Time of sunrise at the current position.
30		Sunset	Time of sunset at the current position.
31		Temperature	Current ambient temperature.
32		Time of Day	Current time of day.
33	Heart Rate	Heart Rate	Current heart rate (heart beats per minute, bpm) (requires heart rate monitor which is included in the pack but is also available as an option).
34		HR - %HRR	Percentage of heart rate reserve (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
35		HR - %Max.	Percentage of maximum heart rate (requires heart rate monitor which is included in the pack but is also available as an option).
36		HR - Average	Average heart rate for this activity (requires heart rate monitor which is included in the pack but is also available as an option).
37		HR - Average %HRR	Average percentage of heart rate reserve for this activity (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
38		HR - Average %Max.	Average percentage of maximum heart rate for this activity (requires heart rate monitor which is included in the pack but is also available as an option).
39		HR - Lap	Average heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option).
40		HR - Lap %HRR	Average percentage of heart rate reserve for this lap (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option).
41		HR - Lap %Max	Average percentage of maximum heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option).
42		HR - Last Lap	Average heart rate for the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option).
43		HR Graph	Graphical representation of the heart rate zone over time (requires heart rate monitor which is included in the pack but is also available as an option)
44		HR to Go	Difference between the current heart rate and the target heart rate for this activity (requires heart rate monitor which is included in the pack but is also available as an option).
45		HR Zone	Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires heart rate monitor which is included in the pack but is also available as an option).
7	Navigation	Distance to Destination	Distance to the final destination of the current route.
9		Distance to Next	Remaining distance to the next waypoint of the current route.
10		ETA at Destination	Estimated arrival time at the final destination of the current route.
11		ETA at Next	Estimated arrival time at the next waypoint of the current route.
12		Heading	Current moving direction.
46		Location at Destination	Name of the waypoint at the final destination of the current route.
47		Location at Next	Name of the next waypoint of the current route.
13		Time to Destination	Estimated remaining time to reach the final destination of the current route.
15		Time to Next	Estimated remaining time to reach the next waypoint of the current route.
48	Power	Balance	Contribution of the left and the right leg to the total power output in percent (requires optional 3rd party power meter).
49		Balance - 3s Average	Average contribution of the left and the right leg to the total power output during the last 3 seconds in percent (requires optional 3rd party power meter).
50		Balance - 10s Average	Average contribution of the left and the right leg to the total power output during the last 10 seconds in percent (requires optional 3rd party power meter).
51		Balance - 30s Average	Average contribution of the left and the right leg to the total power output during the last 30 seconds in percent (requires optional 3rd party power meter).
52		Balance - Average	Average contribution of the left and the right leg to the total power output during this activity in percent (requires optional 3rd party power meter).
53		Balance - Lap	Average contribution of the left and the right leg to the total power output during the current lap in percent (requires optional 3rd party power meter).
54		Pedal Smoothness	Average torque in percent of the maximum torque of the cranks (requires optional 3rd party power meter).
55		Power	Current power output (requires optional 3rd party power meter).
56		Power - %FTP	Current power output in %FTP ("Functional Threshold Power") (requires optional 3rd party power meter).
57		Power - 3s Average	Average power output during the last 3 seconds moving (requires optional 3rd party power meter).
58		Power - 10s Average	Average power output during the last 10 seconds moving (requires optional 3rd party power meter).
59		Power - 30s Average	Average power output during the last 30 seconds moving (requires optional 3rd party power meter).
60		Power - Average	Average power output during this activity (requires optional 3rd party power meter).
61		Power - IF	Intensity Factor: The ratio of the Normalized Power (NP) to the functional threshold power (FTP), see TrainingPeaks for details (requires optional 3rd party power meter).
62		Power - kJ	Current power output in kilojoule (requires optional 3rd party power meter).
63		Power - Lap	Average power output during this lap (requires optional 3rd party power meter).
64		Power - Lap Max.	Maximum power output achieved during the current lap (requires optional 3rd party power meter).
65		Power - Last Lap	Average power output during the last completed lap (requires optional 3rd party power meter).
66		Power - Max.	Maximum power output achieved during this activity (requires optional 3rd party power meter).
67		Power - NP	Normalized Power: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current workout, see TrainingPeaks for details (requires optional 3rd party power meter).
68		Power - NP Lap	Normalized Power Lap: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current lap, see TrainingPeaks for details (requires optional 3rd party power meter).
69		Power - NP Last Lap	Normalized Power Last Lap: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the last completed lap, see TrainingPeaks for details (requires optional 3rd party power meter).
70		Power - TSS	Training Stress Score: A composite number that takes into account the duration and intensity of a workout to arrive at a single estimate of the overall training load and physiological stress created by that training session, see TrainingPeaks for details (requires optional 3rd party power meter).
71		Power - Watts/kg	Power output in watts per kilogram of your body weight (requires optional 3rd party power meter).
72		Power Zone	Current power zone (1..7). The zones are based on your FTP or user settings (requires optional 3rd party power meter).
73		Torque Effectiveness	Sum of clockwise pedaling power minus anti-clockwise drag (requires optional 3rd party power meter).
74	Speed	Speed	Current speed (distance per time unit).
75		Speed - Average	Average speed for current activity.
76		Speed - Lap	Average speed for current lap.
77		Speed - Last Lap	Average speed for the last completed lap.
78		Speed - Max.	Maximum speed for current activity.
79		Speed Zone	Current range (zone) of speed (1..10). Speed zones are based on your FTP or defined by your custom settings.
80	Timer	Laps	Number of completed laps.
81		Time	Stopwatch time for the current activity.
82		Time - Average Lap	Average time for all completed laps.
83		Time - Elapsed	Duration of the current activity including stopped time.
84		Time - Lap	Elapsed time for the current lap.
85		Time - Last Lap	Duration of the last completed lap.
86	Workouts	Calories to Go	Remaining calories to reach the target set by the current workout.
8		Distance to Go	Remaining distance to reach the distance target set by the current course or workout.
87		Reps to Go	Remaining number of repetitions to go to reach the target set by the current workout.
14		Time to Go	Remaining time to reach the time target set by the current workout.

To table of contents

Prices:

This model has been discontinued; however, you can still order options for the Edge 810.

To table of contents

Options:

Power supply without USB cable (One such power supply comes with the Edge 810)	CHF 17	[Picture and details]
USB cable for data exchange and power supply (One such cable comes with the Edge 810)	CHF 14	[Picture and details]
Belt for premium heart rate monitor	CHF 38	[Picture and details]
Mounting set (One set with two mounting kits comes with the Edge 810)	CHF 13	[Picture and details]
Straps for mounting set (One set with mounting straps comes with the Edge 810)	CHF 9	[Picture and details]
Front mounting kit for handlebar	CHF 59	[Picture and details]
Soft case	CHF 23	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	[Picture and details]

All options for the GARMIN Edge 810 in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

Owner's manual (as PDF):
- English (3.8 MB)
- French (4.0 MB)
- German (3.9 MB)
- Italian (4.0 MB)
Quick start guide (as PDF):
- English (2.9 MB)
- French (2.8 MB)
- German (2.8 MB)
- Italian (2.9 MB)
Firmware Upgrade:
- Firmware Upgrade V3.00 (Use Web-Updater to install this version)
- List of changes made with firmware upgrades
Training Center and other software:
- Training Center for Windows V3.6.5 (Self-extracting ZIP-file, 40.8 MB; Windows 2000 or later)
- Training Center for Mac V2.1.5 (DMG-file, 51.4 MB; Intel-based or PowerPC G3 or later; Mac OS 10.4 or later)
- Garmin Communication Plug-in Version 2.6.1 (Self-extracting ZIP-file, 3.4 MB; Windows 2000 or later)
- Garmin ANT Agent Version 2.3.4 (Self-extracting ZIP-file, 13.1 MB; Windows 2000 or later)
- Training Center Version 3.6.5 with Garmin ANT Agent Version 2.3.3 (Self-extracting ZIP-file, 91.1 MB; Windows 2000 or later)

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for the GARMIN Edge 810 please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
