GARMIN fenix 2 |
Multi-sport wrist top GPS device which provides comprehensive navigation and tracking functionality as well as trip information about various outdoor activities.
Compact and very robust wrist top GPS device for outdoor navigation including barometrical altimeter and electronic compass. Supports various activities such as hiking, mountaineering, running, biking, geocaching, but also sailing or flying through individual profiles including user specific profiles. Stores waypoints, routes and travelled paths (tracks). Map page with track, waypoints and points of interests (POIs) plus directions for navigation including back to start (TracBack) feature. Accepts data from compatible wireless devices, such as heart rate monitor, cadence and temperature sensors. Supports data exchange with computers and GARMIN Connect. Shares information via BlueTooth with Apps on compatible mobile phones. Very robust housing and scratch resistant mineral glass. Built-in rechargeable battery for long operation time.
An alternate spelling is GARMIN fēnix 2.
All models provide similar functions; these are the main differences:
Feature / Model | Display | GLONASS | Supports heart rate monitor with G-Sensor (HRM-Run) | Supports swimmer | Sleep monitor | Price |
---|---|---|---|---|---|---|
fenix | monochrome 70X70 |
- | - | - | - | Discontinued |
fenix 2 | monochrome (negativ) 70X70 |
- | YES | YES | - | Discontinued |
fenix 3 | color 218x218 |
YES | YES | YES | YES | Discontinued |
Please find a table with detailed technical data in our Buyer's guide.
Contents: Features - Overview - Main Pages - Training Center - Price - Options - Downloads - Order
![]() |
Features:
¹) TTFF: Time To First Fix, time until the first information about the local position is acquired. Information for navigation:
Additional features:
|
![]() |
To table of contents |
![]() |
To table of contents |
Note: The images below show the display of the fenix 2 in true resolution (70x70 pixels). This does not necessarily mean that the display is shown it its true size (31x31 mm). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 148 different values, see selection.

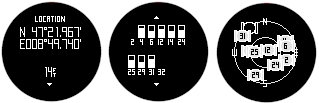

Clock | Menu | GPS Data |
![]() |
![]() |
![]() |
|
|
|
Barometer | Altitude / Elevation Profile | Compass |
![]() |
![]() |
![]() |
|
|
|

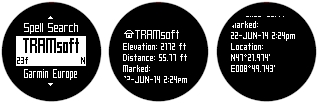

Temperature | Map | Waypoint |
![]() |
![]() |
![]() |
|
It is possible to unlock maps for the fenix 2 and transfer them to the watch. However, due to the small memory and display, they are only of limited practical use. |
|

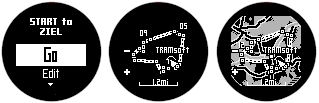

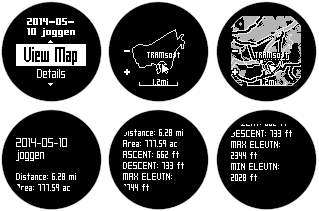

Route | Track | Data Fields |
![]() |
![]() |
![]() |
|
|
|
POIs | Running Dynamics | Sun / Moon |
![]() |
![]() |
![]() |
|
|
|
No | Category | Name | Explanation | |
---|---|---|---|---|
1 | Timer | AVG LAP | Average Lap time for the current activity. | |
2 | ELAPSED | Elapsed time including the time when the stop watch was paused. | ||
3 | LAP TIME | Stop watch time for the current lap. | ||
4 | LAP TOTAL | Stop watch time for all completed lap. | ||
5 | LLAP TIME | Last lap time: Stop watch time for the last completed lap. | ||
6 | MOV'N TIME | Moving time: Running total of all time when moving since last reset. | ||
7 | STOP TIME | Stopped time: Running total of all time when not moving since last reset. | ||
8 | STOPWATCH | Stop watch time for the current activity. | ||
9 | TIME | Duration of the current activity not including the time when the activity was paused. | ||
10 | TIMER | Current time of the countdown timer. | ||
11 | Distance | DISTANCE | Distance travelled during the current activity. | |
12 | LAP DIST | Lap distance: Distance travelled during the current lap. | ||
13 | LLAP DIST | Last lap distance: Distance travelled during the last completed lap. | ||
14 | ODOMETER | Running total of all travelled distances. Does not get cleared when performing a reset. | ||
15 | TRACK DIST | Track distance: Length of the current track. | ||
16 | Pace | AVG PACE | Average pace for the current activity. | |
17 | LAP PACE | Average pace for the current lap. | ||
18 | LLAP PACE | Last lap pace: Average pace for the last completed lap. | ||
19 | PACE | Current pace. | ||
20 | Speed | AVG SPEED | Average speed for the current activity. | |
21 | LAP SPEED | Average speed for the current lap. | ||
22 | LLAP SPD | Last lap speed: Average speed for the last completed lap. | ||
23 | MAX SPEED | Maximum speed for the current activity. | ||
24 | MOV'N AVG | Moving average: Average speed for the current activity not including stopped time. | ||
25 | SPEED | Current speed. | ||
26 | VERT SPEED | Current vertical speed. | ||
27 | Heart Rate | A HR %MAX | Average percentage of maximum heart rate for the current activity (requires heart rate monitor which is included in the pack but is also available as an option). | |
28 | AVG HR | Average heart rate for the current activity (requires heart rate monitor which is included in the pack but is also available as an option). | ||
29 | HEART RATE | Current heart rate (heart beats per minute, bpm; requires heart rate monitor which is included in the pack but is also available as an option). | ||
30 | HR %MAX | Percentage of maximum heart rate (requires heart rate monitor which is included in the pack but is also available as an option). | ||
31 | HR ZONE | Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires heart rate monitor which is included in the pack but is also available as an option). | ||
32 | L HR %MAX | Average percentage of maximum heart rate for the current lap (requires heart rate monitor which is included in the pack but is also available as an option). | ||
33 | LAP HR | Average heart rate for the current lap (requires heart rate monitor which is included in the pack but is also available as an option). | ||
34 | LLAP HR | Average heart rate for the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option). | ||
35 | TE | Training Effect: Current impact on your aerobic fitness (1.0..5.0; requires heart rate monitor which is included in the pack but is also available as an option). | ||
36 | Run Dynamics | AVG GCT | Average Ground Contact Time: The average amount of time your foot spends on the ground in each step while running during the current activity, measured in milliseconds (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option). | |
37 | AVG V OSC | Average Vertical Oscillation: The average vertical motion of your torso for each step during the current activity, measured in centimeters (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option). | ||
38 | GCT | Ground Contact Time: The amount of time your foot spends on the ground in each step while running, measured in milliseconds (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option). | ||
39 | LAP GCT | Lap Ground Contact Time: The average amount of time your foot spends on the ground in each step while running during the current lap, measured in milliseconds (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option). | ||
40 | LAP V OSC | Lap Vertical Oscillation: The average vertical motion of your torso for each step during the current lap, measured in centimeters (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option). | ||
41 | V OSC | Vertical Oscillation: The vertical motion of your torso while running, measured in centimeters (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option). | ||
42 | Cadence | AVG CAD | Average cadence: Average number of steps or average number of revolutions of the crank arm during the current activity (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option; the optional foot pod also provides this data). | |
43 | CADENCE | Number of steps per minute or number of revolutions of the crank arm per minute (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option; the optional foot pod also provides this data). | ||
44 | LAP CAD | Lap cadence: Average number of steps or average number of revolutions of the crank arm during the current lap (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option; the optional foot pod also provides this data). | ||
45 | LLAP CAD | Last lap cadence: Average number of steps or average number of revolutions of the crank arm during the last completed lap (requires HRM-Run heart rate monitor with G-sensor which is included in the pack but is also available as an option; the optional foot pod also provides this data). | ||
46 | Altimeter | AMB PRESS | Ambient pressure: Uncalibrated air pressure. | |
47 | ASCENT | Running total of the elevation gain since last reset. | ||
48 | AVG ASCENT | Average Ascent: Average elevation gain since last reset. | ||
49 | AVG DESCENT | Average Descent: Average elevation loss since last reset. | ||
50 | BAROMETER | Calibrated air pressure. | ||
51 | DESCENT | Running total of the elevation loss since last reset. | ||
52 | ELEVATION | Current elevation. | ||
53 | GPS ELEVTN | Current elevation based on GPS data. | ||
54 | LAP ASCNT | Lap ascent: Elevation gain during the current lap. | ||
55 | LAP DESCNT | Lap descent: Elevation loss during the current lap. | ||
56 | LLAP ASCNT | Last lap ascent: Elevation gain during the last completed lap. | ||
57 | LLAP DECNT | Last lap descent: Elevation loss during the last completed lap. | ||
58 | MAX ASCENT | Maximum ascent: Maximum elevation gain since last reset. | ||
59 | MAX DESCNT | Maximum descent: Maximum elevation loss since last reset. | ||
60 | MAX ELEVTN | Maximum elevation since last reset. | ||
61 | MIN ELEVTN | Minimum elevation since last reset. | ||
62 | Navigation | BEARING | Direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing refers to the direction to a waypoint. | |
63 | COURSE | The direction from the beginning landmark of a course to its destination or the direction from a route waypoint to the next waypoint in the route segment. | ||
64 | FINAL DEST | Final Destination: Name of the waypoint at the final destination of the current route. | ||
65 | FINAL DIST | Final Distance: Distance from the current location to the final destination of the current route. | ||
66 | FINAL ETA | Final Estimated Time of Arrival: Estimated arrival time at the final destination of the current route. | ||
67 | FINAL ETE | Final Estimated Time Enroute: Estimated travel time from the current location to the final destination of the current route. | ||
68 | FINAL VDST | Final Vertical Distance: Elevation difference between the current location and the final destination of the current route. | ||
69 | FINAL VSPD | Final Vertical Speed: Required elevation gain or loss to reach the final destination of the current route from the current location. | ||
70 | GR DEST | Glide Ratio Destination: The glide ratio required to descend from your current position and elevation to the destination's elevation. | ||
71 | NEXT DEST | Next Destination: Name of the next waypoint of the current route. | ||
72 | NEXT DIST | Next Distance: Distance from the current location to the next waypoint of the current route. | ||
73 | NEXT ETA | Next Estimated Time of Arrival: Estimated arrival time at the next waypoint of the current route. | ||
74 | NEXT ETE | Next Estimated Time Enroute: Estimated travel time from the current location to the next waypoint of the current route. | ||
75 | NEXT VDST | Next Vertical Distance: Elevation difference between the current location and the next waypoint of the current route. | ||
76 | OFF COURSE | The distance you are off the desired route. | ||
77 | TO COURSE | Direction to the planned route. | ||
78 | TURN | Difference between the bearing to your destination and your current course. | ||
79 | VMG | Velocity Made Good: The rate of closure to the destination, based upon your current speed and course. | ||
11 | Open Water | Swim | DISTANCE | Distance travelled during the current activity. |
19 | PACE | Current pace. | ||
9 | TIME | Duration of the current activity not including the time when the activity was paused. | ||
80 | Strokes | AVG STRK | Average distance travelled during one stroke. | |
81 | INT STRK | Number of strokes during the current interval. | ||
82 | STROKE RATE | Average number of strokes per minute (spm) during the current activity. | ||
83 | INT STROKE RATE | Average number of strokes per minute (spm) during the current interval. | ||
84 | STROKES | Number of strokes during the current activity. | ||
85 | Pool | Total | CALORIES | Calories burned during the current activity. |
11 | DISTANCE | Distance travelled during the current activity. | ||
2 | ELAPSED | Elapsed time including the time when the stop watch was paused. | ||
86 | LENGTHS | Number of completed pool lengths during the current activity. | ||
11 | Interval | DISTANCE | Distance travelled during the current activity. | |
86 | LENGTHS | Number of completed pool lengths during the current interval. | ||
19 | PACE | Current pace. | ||
87 | REST REP | The time remaining until the start of the next timed swim interval. | ||
88 | REST TIME | Duration of the current rest break. | ||
89 | STROKE RATE | Average number of strokes per minute (spm) during the current interval. | ||
90 | STROKE TYPE | Detected stroke type based on the motion of your arm. | ||
91 | STROKES | Number of strokes during the current interval. | ||
92 | SWOLF | SWOLF score for the current interval. | ||
9 | TIME | Duration of the current interval not including the time when the activity was paused. | ||
94 | Last Length | PACE | Average page during the last length. | |
95 | STROKE RATE | Average number of strokes per minute (spm) during the last length. | ||
96 | STROKE TYPE | Detected stroke type based on the motion of your arm for the last length. | ||
97 | STROKES | Number of strokes during the last length. | ||
98 | SWOLF | SWOLF score for the last length. | ||
99 | Average | PACE | Average page during the current activity. | |
100 | STROKE RATE | Average number of strokes per minute (spm) for the current activity. | ||
83 | STROKES | Number of strokes during the current activity. | ||
84 | SWOLF | Average SWOLF score for the current activity. | ||
101 | Power | %FTP | Current power output in %FTP ("Functional Threshold Power") (requires optional 3rd party power meter). | |
102 | AVG BAL | Average Balance: Average contribution of the left and the right leg to the total power output during this activity in percent (requires optional 3rd party power meter). | ||
103 | AVG PWR | Average Power output during this activity (requires optional 3rd party power meter). | ||
104 | BAL | Balance: Contribution of the left and the right leg to the total power output in percent (requires optional 3rd party power meter). | ||
105 | BAL 10S | Balance 10 Seconds: Average contribution of the left and the right leg to the total power output during the last 10 seconds in percent (requires optional 3rd party power meter). | ||
106 | BAL 30S | Balance 30 Seconds: Average contribution of the left and the right leg to the total power output during the last 30 seconds in percent (requires optional 3rd party power meter). | ||
107 | BAL 3S | Balance 3 Seconds: Average contribution of the left and the right leg to the total power output during the last 3 seconds in percent (requires optional 3rd party power meter). | ||
108 | IF | Intensity Factor: The ratio of the Normalized Power (NP) to the functional threshold power (FTP), see TrainingPeaks for details (requires optional 3rd party power meter). | ||
109 | KILOJOULES | Current power output in kilojoule (requires optional 3rd party power meter). | ||
110 | LAP BAL | Lap Balance: Average contribution of the left and the right leg to the total power output during the current lap in percent (requires optional 3rd party power meter). | ||
111 | LAP NP | Lap Normalized Power: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current lap, see TrainingPeaks for details (requires optional 3rd party power meter). | ||
112 | LAP PWR | Lap Power: Average power output during the current lap (requires optional 3rd party power meter). | ||
113 | LLAP NP | Last Lap Normalized Power: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the last completed lap, see TrainingPeaks for details (requires optional 3rd party power meter). | ||
114 | LLAP PWR | Last Lap Power: Average power output during the last completed lap (requires optional 3rd party power meter). | ||
115 | MAX LAP PWR | Maximum Lap Power: Maximum power output achieved during the current lap (requires optional 3rd party power meter). | ||
116 | MAX PWR | Maximum Power: Maximum power output achieved during the current activity (requires optional 3rd party power meter). | ||
117 | NP | Normalized Power: An estimate of the power that one could have maintained for the same physiological "cost" if the power had been perfectly constant during the current workout, see TrainingPeaks for details (requires optional 3rd party power meter). | ||
118 | PDL SMOOTH | Pedal Smoothness: Average torque in percent of the maximum torque of the cranks (requires optional 3rd party power meter). | ||
119 | POWER | Current power output (requires optional 3rd party power meter). | ||
120 | PWR 10S | Power 10 Seconds: Average power output during the last 10 seconds moving (requires optional 3rd party power meter). | ||
121 | PWR 30S | Power 30 Seconds: Average power output during the last 30 seconds moving (requires optional 3rd party power meter). | ||
122 | PWR 3S | Power 3 Seconds: Average power output during the last 3 seconds moving (requires optional 3rd party power meter). | ||
123 | PWR ZONE | Current power zone (1..7). The zones are based on your FTP or user settings (requires optional 3rd party power meter). | ||
124 | TORQUE EFF | Torque Effectiveness: Sum of clockwise pedaling power minus anti-clockwise drag (requires optional 3rd party power meter). | ||
125 | TSS | Training Stress Score: A composite number that takes into account the duration and intensity of a workout to arrive at a single estimate of the overall training load and physiological stress created by that training session, see TrainingPeaks for details (requires optional 3rd party power meter). | ||
126 | WATTS/KG | Power output in watts per kilogram of your body weight (requires optional 3rd party power meter). | ||
127 | Compass | CMP HDNG | Compass heading: Current heading based on the built-in electronic compass. | |
128 | COMPASS | Current heading = direction the device is pointing to based on the built-in electronic compass. | ||
129 | GPS HDNG | GPS heading: Current heading based on the GPS data. | ||
130 | HEADING | Current heading. | ||
131 | Other | ACCURACY | Current accuracy of the position determined by the GPS. | |
132 | BATTERY | Current charge level of the battery. | ||
85 | CALORIES | Calories burned during the current activity. | ||
133 | DATE | Current date. | ||
134 | GLIDE RATIO | Ratio of the horizontal distance traveled to the change in the vertical distance | ||
135 | GPS | Current strength of the satellites' signals. | ||
136 | GRADE | Current grade computed from elevation change over distance. | ||
137 | LAPS | Number of completed laps. | ||
138 | LAT/LON | Current location as latitude/longitude coordinates. | ||
139 | LOCATION | Current location indicated in the selected format (datum). | ||
140 | MAX TEMP | Maximum temperature recorded in the last 24 hours. | ||
141 | MIN TEMP | Minimum temperature recorded in the last 24 hours. | ||
142 | NONE | Empty field. | ||
143 | SPORT | Current activity. | ||
144 | STEPS | Number of counted steps during the current activity. | ||
145 | SUNRISE | Time of sunrise at the current position. | ||
146 | SUNSET | Time of sunset at the current position. | ||
147 | TEMP | Current ambient temperature. | ||
148 | TOD | Current time of day. |
![]() |
To table of contents |
You may download this software either from GARMIN's website or from our server, see Downloads below. The software requires a PC with Windows 2000 or later and an USB connector or an Intel-based Mac or PowerPC (G3 or newer) running OS X 10.4 or later with an USB connector. Training Center provides the following features:
Hint: Click on the images for an enlargement
![]() |
To table of contents |
This model has been discontinued; however, you can still order options for the fenix 2.
![]() |
To table of contents |
Power supply with USB connector (cable not included) (Such a power supply comes with the fenix 2) |
![]() |
CHF 17 | [Picture and details] | |
USB data/power cable (Such a cable comes with the fenix 2) |
![]() |
CHF 39 | [Picture and details] | |
HRM-Run chest belt with heart rate monitor and G-sensor (same soft fabric strap like the premium chest belt) (Such a HRM-Run chest belt comes with the fenix 2 Pack) |
![]() |
CHF 68 | [Picture and details] | |
Belt for premium heart rate monitor | ![]() |
CHF 38 | [Picture and details] | |
HRM-Run chest belt with heart rate monitor and G-sensor V2 | ![]() |
CHF 68 | [Picture and details] | |
Wireless Tempe temperature sensor | ![]() |
CHF 44 | [Picture and details] | |
Chirp geocaching beacon | ![]() |
CHF 25 | [Picture and details] | |
Mounting kit for handlebar | ![]() |
CHF 22 | [Picture and details] | |
Fabric wrist strap (Such a strap comes with the fenix 2 Pack) |
![]() |
CHF 22 | [Picture and details] | |
Plastic wrist strap olive | ![]() |
CHF 22 | [Picture and details] | |
Plastic wrist strap orange | ![]() |
CHF 22 | [Picture and details] | |
Soft case | ![]() |
CHF 23 | [Picture and details] |
All options for the GARMIN fenix 2 in detail.
![]() |
To table of contents |
Here we provide additional documentation and software updates related to the fenix 2.
![]() |
If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free. |
![]() |
To table of contents |
To order options for the GARMIN fenix 2 please:
Please read our terms and conditions.
![]() |
To table of contents |
Specifications and packaging of the products are subject to change without notice.
![]() |
TRAMsoft GmbH Laettenweg 19 / CH-8335 Hittnau / Switzerland Contact Last modification: 11/22/2023 (RA) (This document was created with TRAMsoft XbCMS V1.3-00, does not require any browser specific features and is compliant with the W3C standard "HTML 4.01 Transitional") |
![]() |
