The Overlander supports the Russian GLONASS and the European Galileo satellites

Very rugged all-terrain GPS device for navigation on the road and off-road, with 7 inch color display, GLONASS and Galileo support, integrated pitch and roll gauges, electronic 3D compass, barometrical altimeter, integrated base map, pre-installed street map of all of Europe, Middle East and Africa including Tracks4Africa, slot for µSD memory card, Blue Tooth, Wi-Fi and USB interface.

The GARMIN Overlander is equipped with an integrated base map, pre-installed street maps of all of Europe, Middle East and Africa including Tracks4Africa and supports autorouting. Campground directories of ACSI, Campercontact, Trailer's Park and iOverlander are also pre-installed. Use the Garmin Explorer app to download additional maps and satellite imageries and to synchronize waypoints, tracks and routes with your smartphone or computer. The Overlander is equipped with built-in pitch and roll gauges, an electronic 3D compass (3D = tilt-compensated compass which means the device doesn't have to be held level for accurate reading of the heading), a barometrical altimeter, 56.2 GB of memory - of which 35.6 GB are free - plus a slot for an µSD memory card. It can communicate via Blue Tooth and Wi-Fi, has an microUSB connector, a 3.5 mm audio connector, supports optional wireless backup cameras and can be paired with Explorer devices to send emergency messages. The Overlander provides detailed graphical and spoken directions and supports voice-activated navigation, which means you can operate the device with spoken commands. The built-in battery lasts for up to 3 hours, in cars it can be powered from a cigarette lighter. This device cannot only receive the signals of the U.S. GPS satellites, but also of the Russian GLONASS and the European Galileo satellites. This provides improved accuracy of the position indication, particularly under difficult conditions such as in cities with tall buildings, in narrow valleys, near steep cliffs and in dense forests. Android-based operating system, but does not support installation of additional apps from the Google Play store.


Contents: Features - Overview - Main Pages - Maps - Price - Options - Downloads - Order


Features:

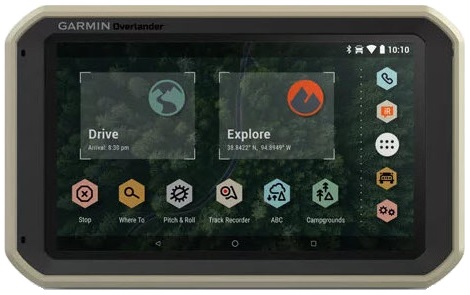

GARMIN Overlander

Information for navigation:

To table of contents To table of contents

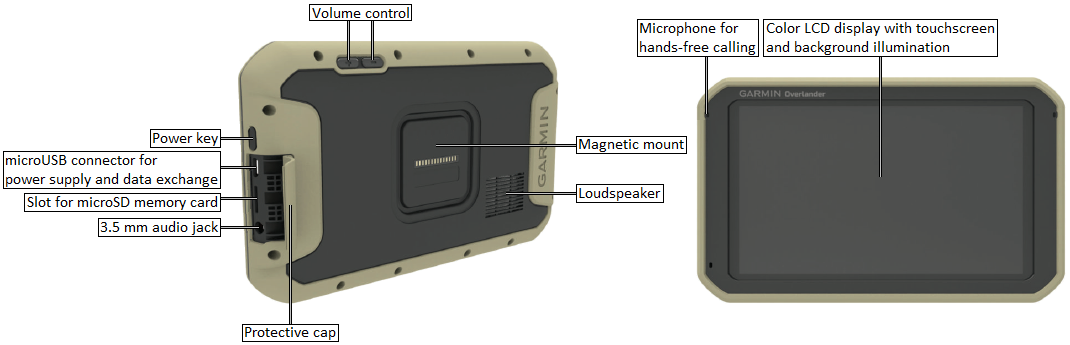

GARMIN Overlander overview:

Unit features of the GARMIN Overlander
To table of contents To table of contents

Main pages of the Overlander:

The image below shows the display of the Overlander in true resolution (1024x600 pixels). This does not necessarily mean that the display is shown it its true size (152x89 mm). The actual size of this image depends on the properties of your display. All following images have been reduced to improve the appearance of this document. Many of the pages are configurable, the pictures shown are just examples. All pages are available in portrait and landscape mode.

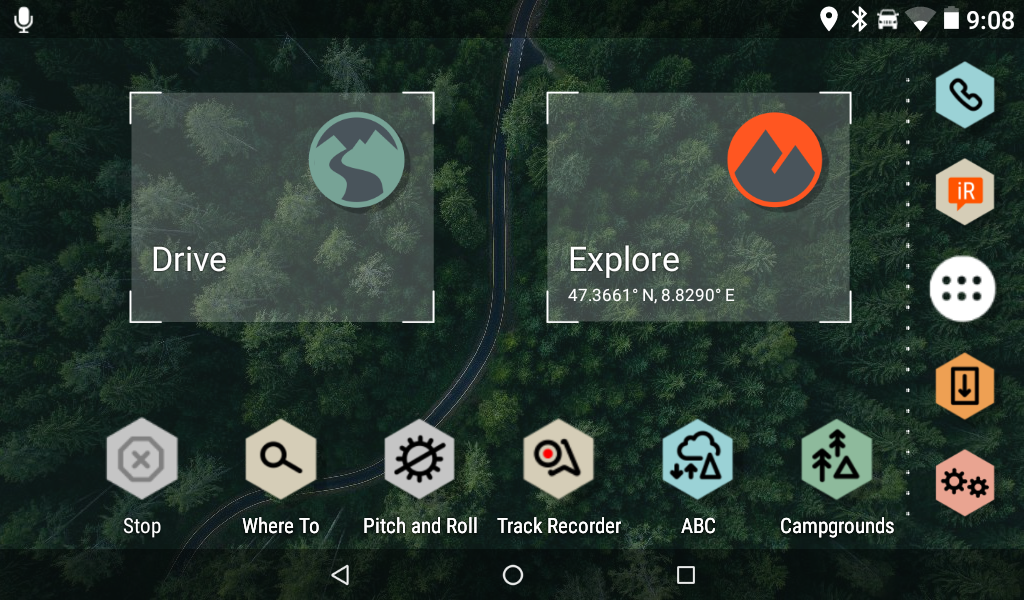

Main Menu
GARMIN Overlander - Main Menu
  • Status bar: Voice command, Location services enabled, Bluetooth, Vehicle profile, Wi-Fi, Battery charge level, current time.
  • Applications: Drive (navigation on the road), Explore (off-road navigation).
  • Shortcuts (from left to right): Stop navigation, Where to, Pitch and roll, Track recording, ABC = Altitude, Barometer, Compass, Campgrounds.
  • Apps (from top down): Phone (connect via Bluetooth), Pair inReach device, all Apps, Data exchange, Settings.
  • Back (left arrow), To main menu (circle), All running Apps (square)

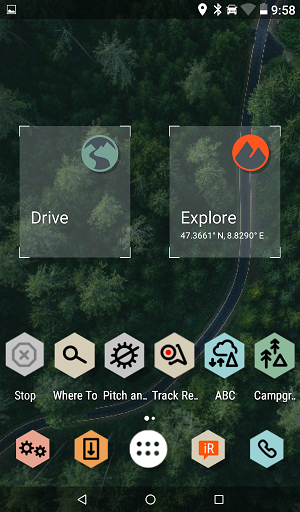

Landscape Mode Portrait Mode
GARMIN Overlander - Main menu in landscape mode GARMIN Overlander - Main menu in portrait mode

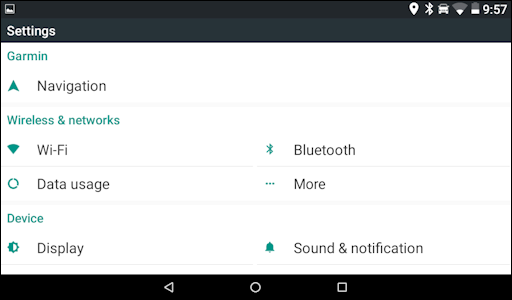

Settings (1 of 3) Settings (2 of 3) Settings (3 of 3)
GARMIN Overlander - Settings (1 of 3) GARMIN Overlander - Settings (2 of 3) GARMIN Overlander - Settings (3 of 3)
  • Status bar
  • Vehicle profil, map preferences, driver alerts and assistance, traffic, units
  • Wi-Fi connections
  • Bluetooth connections
  • Data usage by the apps
  • Airplane mode, VPN
  • Brightness, theme, sleep
  • Volumes and tones

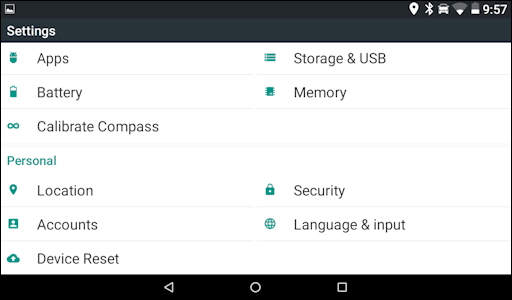

  • Status bar
  • Manage apps
  • Storage used
  • Battery charge level
  • Memory usage over time
  • Calibrate compass
  • Battery usage by navigation apps
  • Screen lock, password and certificate management, screen pinning
  • Account management
  • Language for user interface, voice prompt and voice commands
  • Reset settings

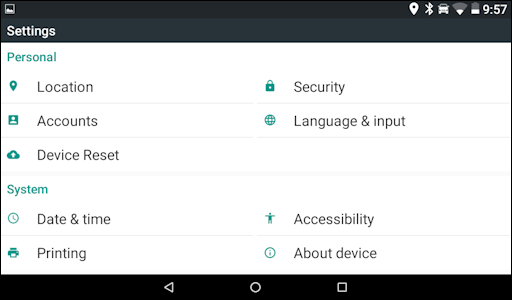

  • Status bar
  • Time zone and time format
  • Accessibility settings
  • Manage printers
  • Device informationen including current software version
Drive Apps Explore Apps Tools Apps
GARMIN Overlander - Drive Apps GARMIN Overlander - Explore Apps GARMIN Overlander - Tools Apps

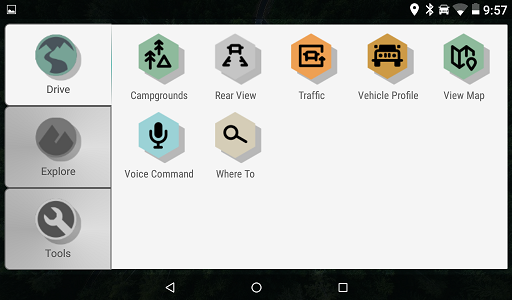

  • Left column: Drive Apps, Explore Apps, Tools Apps
  • Search for campgrounds
  • Backup cameras (up to 4)
  • Traffic messages
  • Create and manage vehicle profiles (dimensions, weight)
  • Map for on-road navigation
  • Voice commands
  • Where to

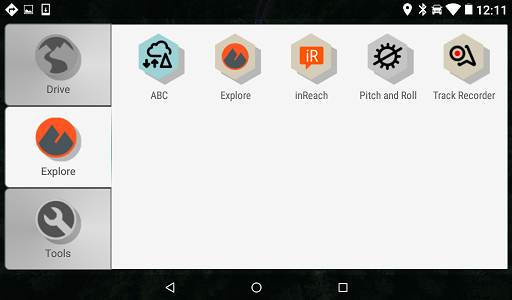

  • Left column: Drive Apps, Explore Apps, Tools Apps
  • Altimeter, Barometer, Compass
  • Map for off-road navigation
  • Pair with inReach device
  • Pitch and roll
  • Track recording

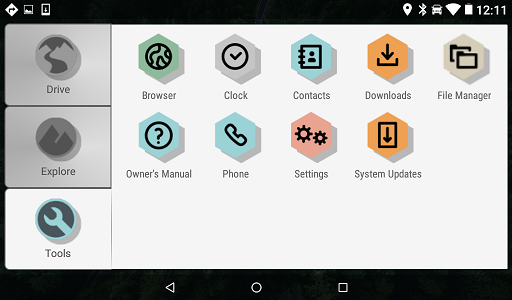

  • Left column: Drive Apps, Explore Apps, Tools Apps
  • Web browser
  • Alarm clocks, clock, countdown, stop watch
  • Manage contacts
  • Manage downloads
  • File manager
  • Owner's manual
  • Manage phones
  • Manage device settings
  • Install system and map updates
Traffic Messages Traffic Message Details Web Browser
GARMIN Overlander - Traffic Messages GARMIN Overlander - Traffic Message Details GARMIN Overlander - Web Browser

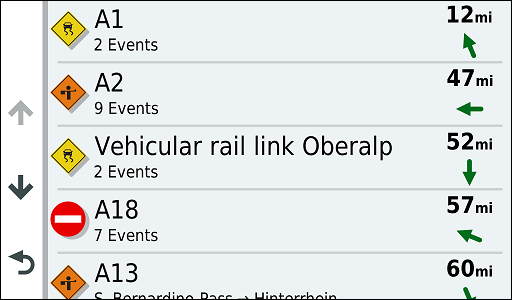

Traffic messages with type of incident, street name, number of incidents and distance from the current position to the location of the incident.

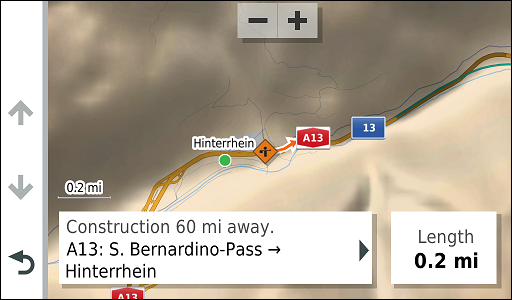

Detailed description of the traffic incident with map and length of the affected section.

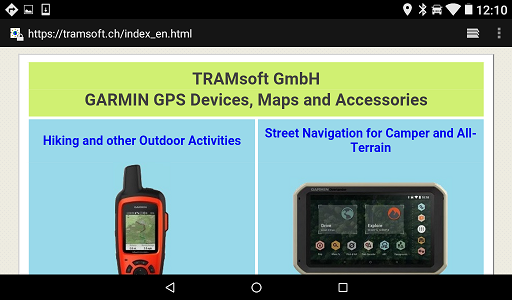

Web-Browser - requires an active WiFi connection.

Pitch and Roll Track Recorder ABC - Altitude, Barometer, Compass
GARMIN Overlander - Pitch and Roll GARMIN Overlander - Track Recorder GARMIN Overlander - ABC - Altitude, Barometer, Compass

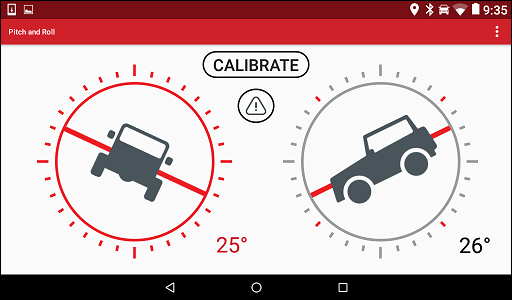

Shows the current pitch and roll angles of the vehicle. The Overlander can alert optically and audible if configurable angles are exceeded.

The warning angles must be set in advance and the device must be kept in the same relative position to the vehicle all the time.

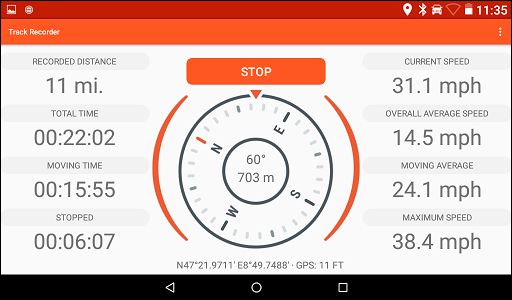

Track Recorder with current bearing, elevation above sea level, coordinates, GPS accuracy and various data about the current trip.

Use the Start-/Stop-button to start and stop track recording.

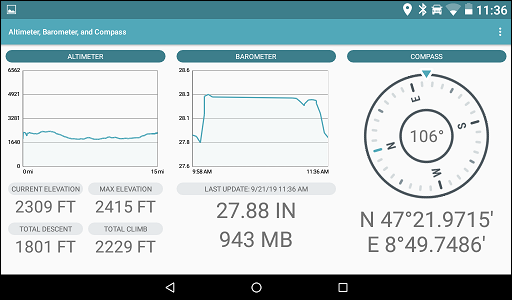

  • Altitude with elevation profile, current and maximum elevation, plus total ascent and descent
  • Barometer with pressure profile and current air pressure
  • Compass with current bearing and coordinates of the current position

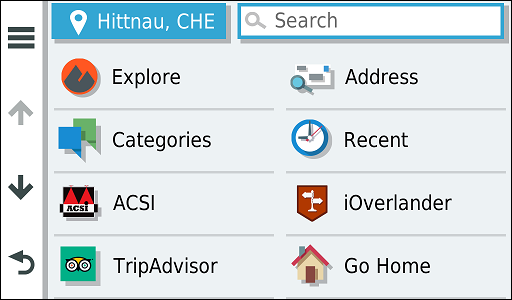

Where To (1 of 2) Where To (2 of 2) Search Example
GARMIN Overlander - Where To (1 of 2) GARMIN Overlander - Where To (2 of 2) GARMIN Overlander - Search example
  • Left column: Set home location, scroll up and down, back
  • Top row: Location where to search near and search term
  • Search in the Explorer directory
  • Search by category, such as Attractions, Gas Stations, Lodging, Medical Care, Parking, Restaurants, Shopping, and many more
  • Search in den ACSI campground directory
  • Search in the TripAdvisor directory
  • Search by address
  • Recent search results
  • Search in the iOverlander directory
  • Go back home

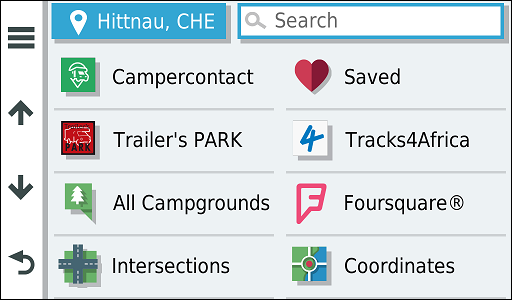

  • Left column: Set home location, scroll up and down, back
  • Top row: Location where to search near and search term
  • Search in the Campercontact directory
  • Search in the Trailer's Park directory
  • Search for campgrounds
  • Search for intersections
  • Search for your own waypoints (favorits)
  • Search in the Tracks4Africa directory
  • Search in the Foursquare directory
  • Search by coordinates

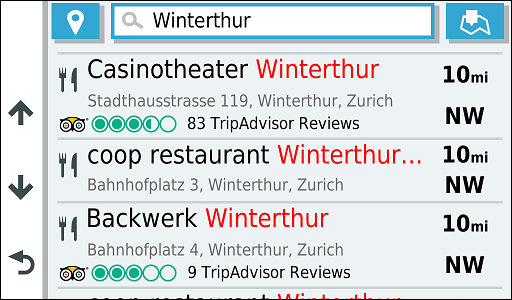

Example: Search for restaurants in Winterthur

Routes Detailed Information about the Destination Route - Elevation Profile
GARMIN Overlander - Routes GARMIN Overlander - Detailed Information about the Destination GARMIN Overlander - Elevation profile of a planned route

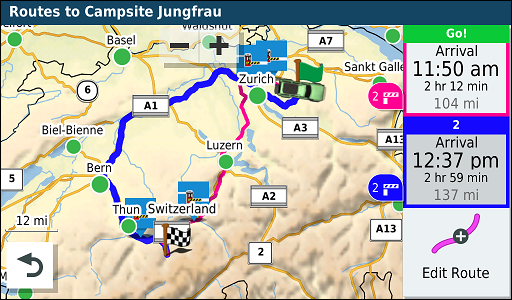

Depending on the distance and the available roads, the Overlander may suggest more than one route. It lists the estimated arrivale time, the estimated travel time and the distance of the different routes with the option to edit any of the routes.

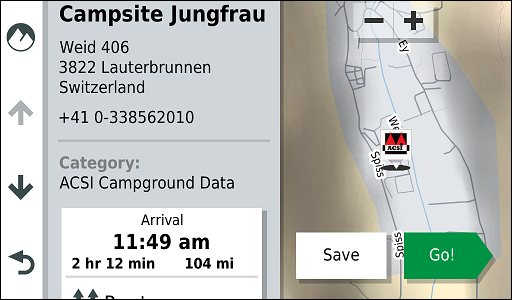

  • Left column: Show destination on Explorer map, scroll up and down, back
  • Name, address and phone number of the destination
  • Category
  • Estimated arrival and travel time plus distance
  • Detailed map around destination, option to save the location as a favorit and to start navigation

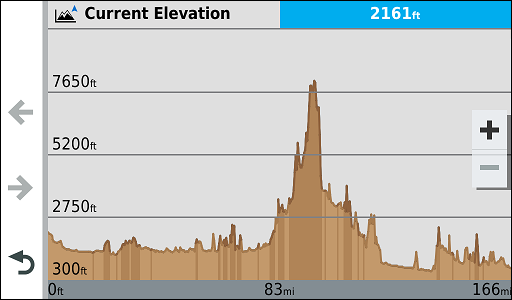

Elevation profile of a planned route

Drive - Route Explore - Route Trip Computer
GARMIN Overlander - Drive - Route GARMIN Overlander - Explore - Route GARMIN Overlander - Trip Computer

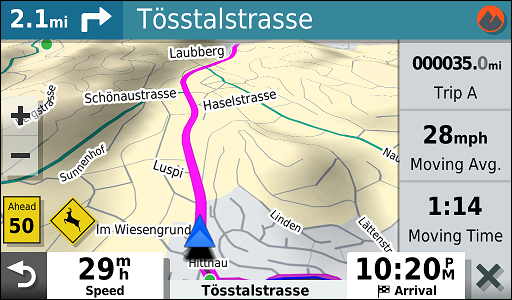

  • Distance to and type of next turn, name of the street to turn on, switch to Explore view
  • Map with planned route (violet line), current position (blue triangle), travelled route (blue line), zoom, current speed limit, additional alerts
  • Back, current speed, name of the road you are currently driving on, estimated arrival time at destination
  • Day trip distance, average driving speed and time moving for the current trip

(This picture was taken with the pre-installed street map of Europe)

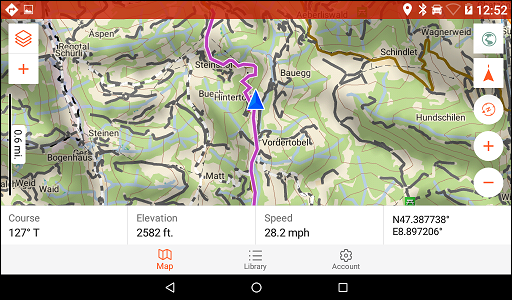

  • Status bar: Route active, Pictures available, Location services enabled, Bluetooth, Vehicle profile, Wi-Fi, Battery charge level, current time.
  • Map with scale, planned route (violet line) and current position (blue triangle)
  • Manage map levels, add route, switch to Drive view, map view, current bearing, zoom
  • Current bearing, current elevation, current speed, coordinates of the current position
  • Map, manage Explore data, manage Explore account

(This picture was taken with the pre-installed Explore map)

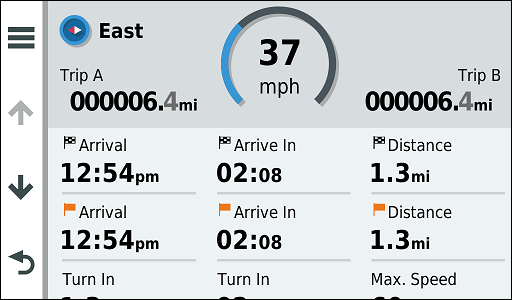

  • Left column: Reset values, scroll up and down, back
  • Current bearing, distance travelled, current speed
  • Estimated arrival time at destination, estimated travel time to destination, distance to destination
To table of contents To table of contents

Maps:

The followings maps are pre-installed on the GARMIN Overlander:

If you connect the Overlander to a computer using an USB cable, you can use the maps on the computer as well if the free software GARMIN BaseCamp is installed. When you connect the Overlander to a computer for the first time, then the maps will be transfered to the computer. After that, the maps will be ready immediately. However, you must connect the Overlander each time in order to get access to the maps.

Note: Click on the map images for a larger picture.

City Navigator Europe:

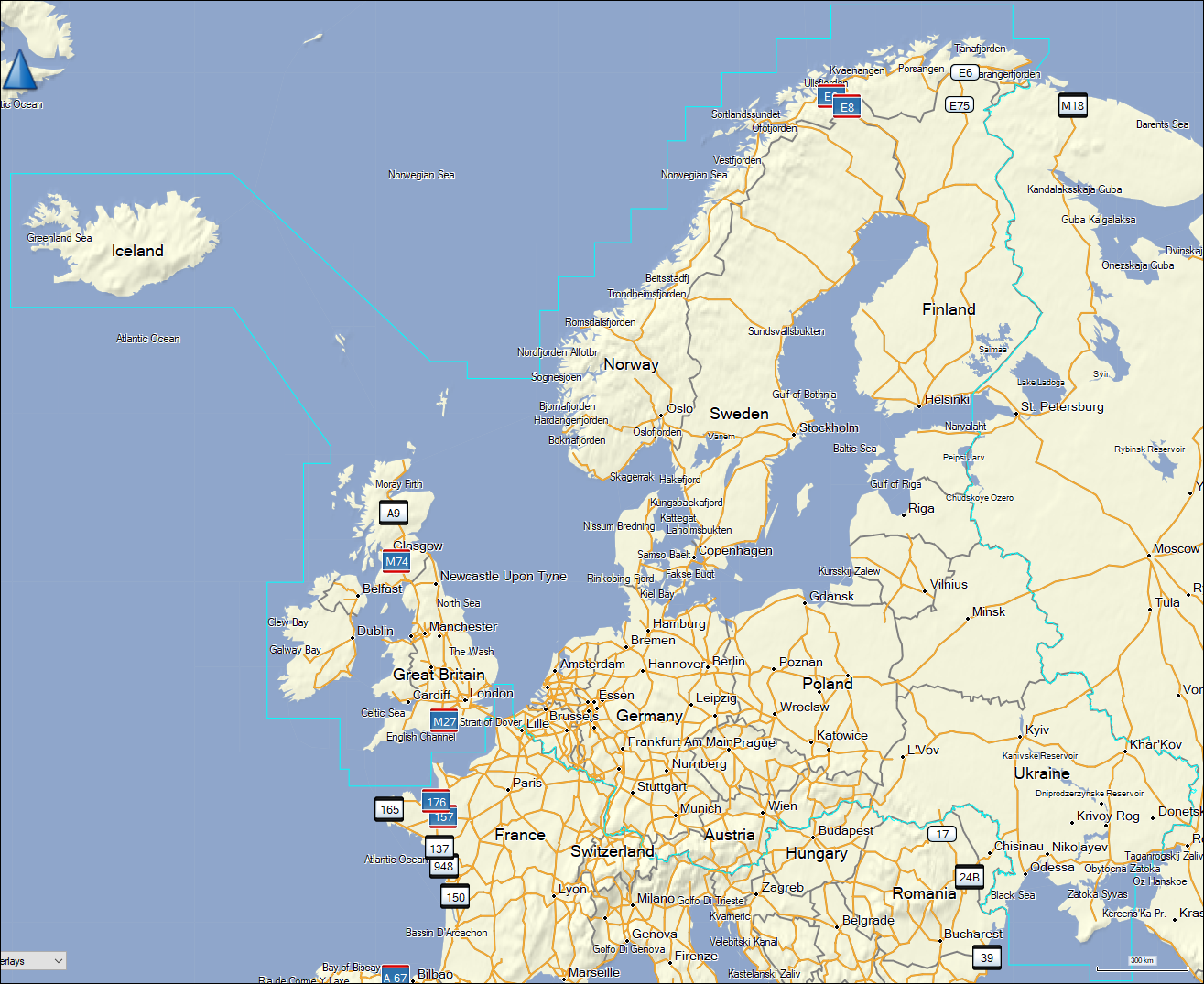

Coverage Europe North Coverage Europe South Zürich and vicinity
GARMIN Overlander - City Navigator Europe: Coverage Europe North GARMIN Overlander - City Navigator Europe: Coverage Europe South GARMIN Overlander - City Navigator Europe: Zuerich and vicinity

Austria, Belarus, Belgium, Czech Republic, Denmark, Estonia, Finland, Germany, Great Britain, Iceland, Ireland, Latvia, Lithuania, Luxembourg, Netherlands, Northen Irleand, Norway, Poland, Slovakia, Sweden, Ukraine

(This image was taken with BaseCamp)

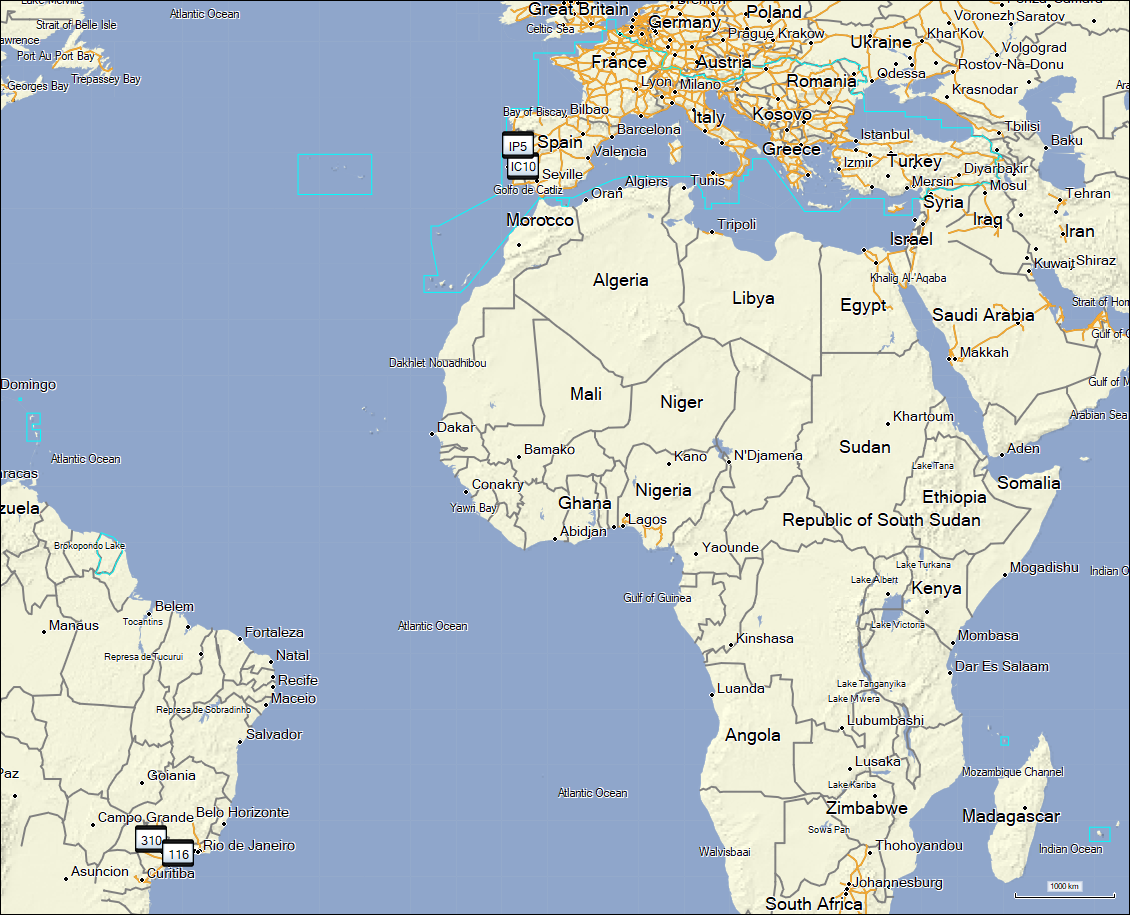

Albania, Bosnia and Herzegovina, Bulgaria, Croatia, France including La Reunion and Mayotte in the Indian Ocean, Guadeloupe and Martinique in the Caribbean plus French Guayana, Greece, Hungary, Italy, Kosovo, Macedonia, Moldova, Montenegro, Portugal including Azores, Romania, Serbia, Slovenia, Spain including Canarian Islands, Switzerland, Turkey

(This image was taken with BaseCamp)

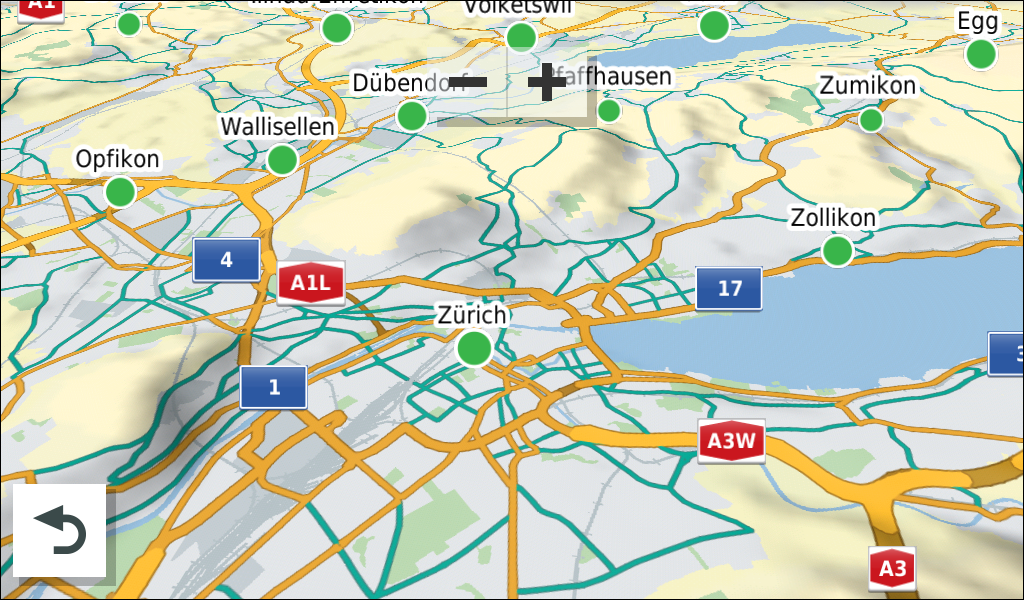

Example City Navigator Europa: Zürich and vicinity

(This image was taken with the Overlander)

City Navigator North Africa:

Coverage Marocco Tripoli and vicinity

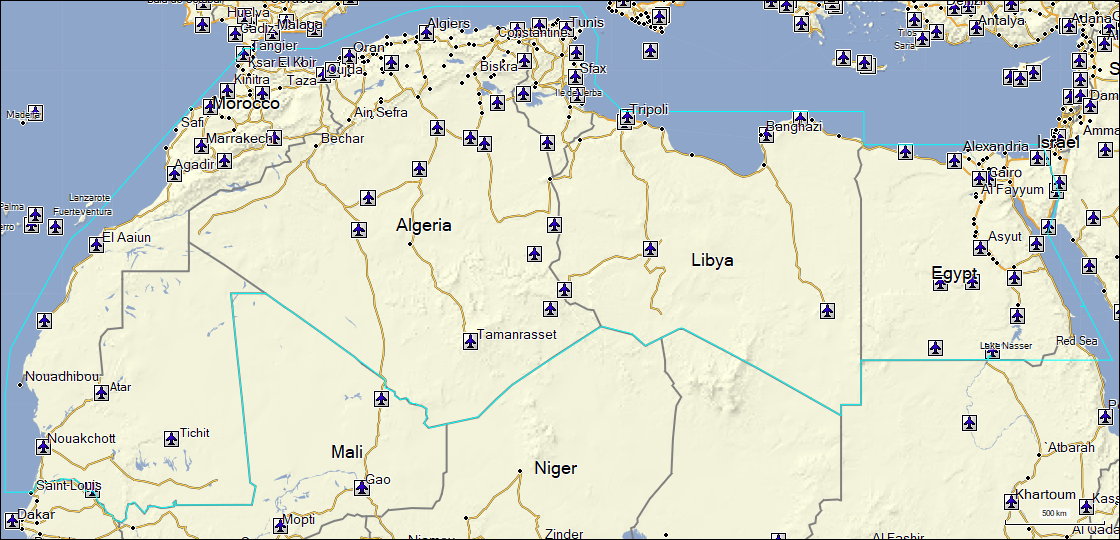

GARMIN Overlander - City Navigator North Africa: Coverage GARMIN Overlander - City Navigator North Africa: Marocco GARMIN Overlander - City Navigator North Africa: Tripoli and vicinity

Algeria, Egypt, Libya, Marocco, Mauretania, Western Sahara

(This image was taken with BaseCamp)

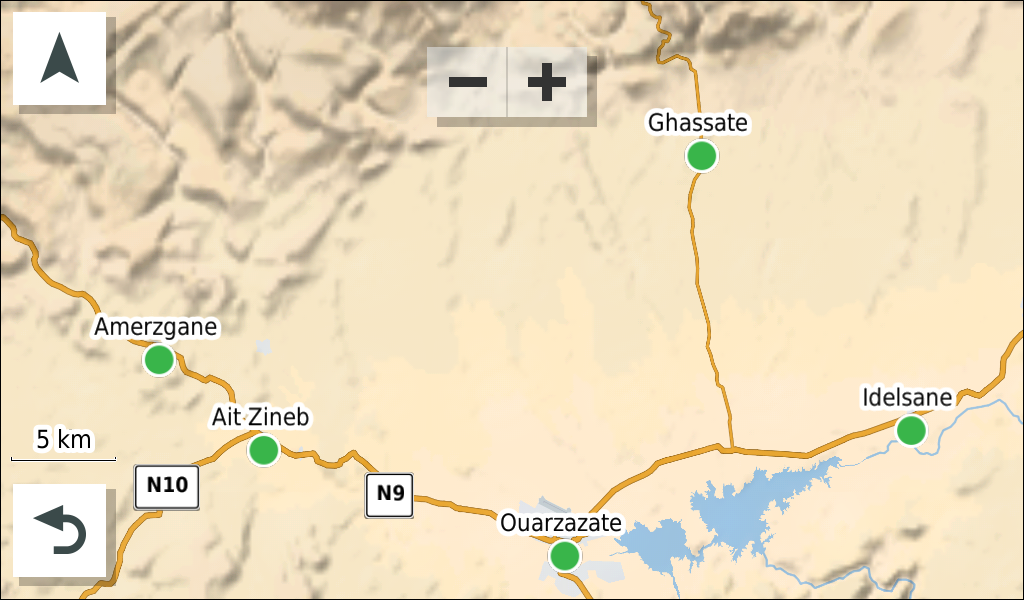

Example City Navigator North Africa: Marocco

(This image was taken with the Overlander)

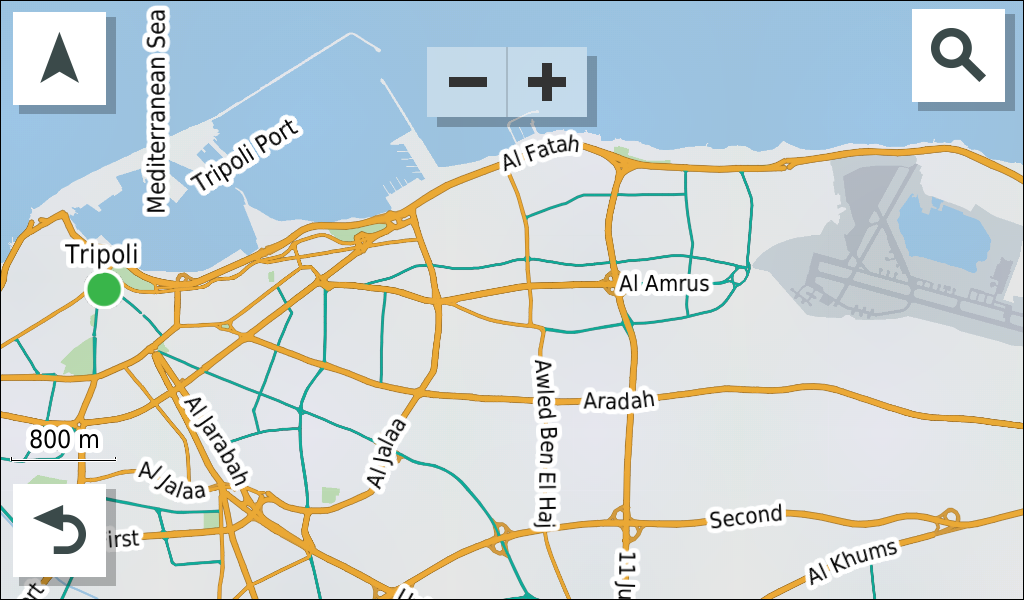

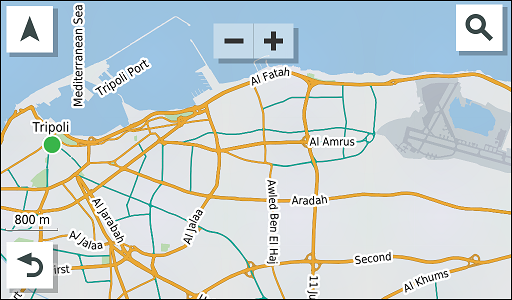

Example City Navigator North Africa: Tripoli and vicinity

(This image was taken with the Overlander)

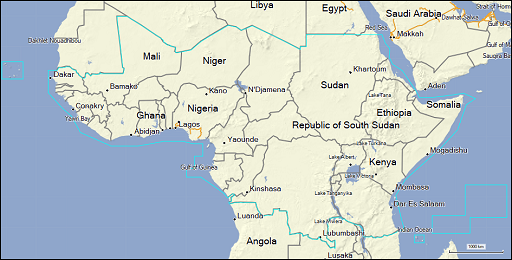

City Navigator East and West Africa:

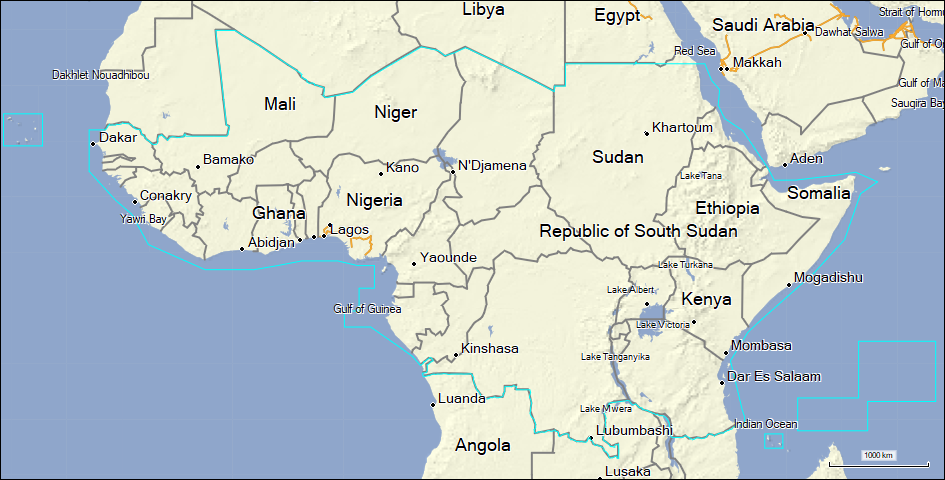

Coverage Parc National de la Marahoué and vicinity Nairobi
GARMIN Overlander - City Navigator East and West Africa: Coverage GARMIN Overlander - City Navigator East and West Africa: Parc National de la Marahoue and vicinity GARMIN Overlander - City Navigator East and West Africa: Nairobi

Benin, Burkina Faso, Cameroon, Cape Verde, Chad, Comoros, Congo, Djibouti, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Ivory Coast, Kenya, Liberia, Mali, Niger, Nigeria, Republic Congo, Ruanda, Senegal, Seychellen, Sierra Leone, Somalia, Sudan, Tansania, Togo, and Uganda

(This image was taken with BaseCamp)

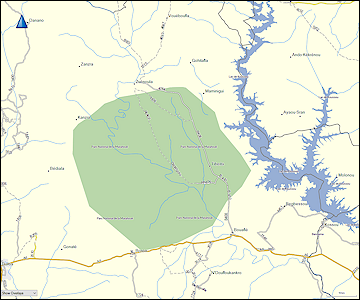

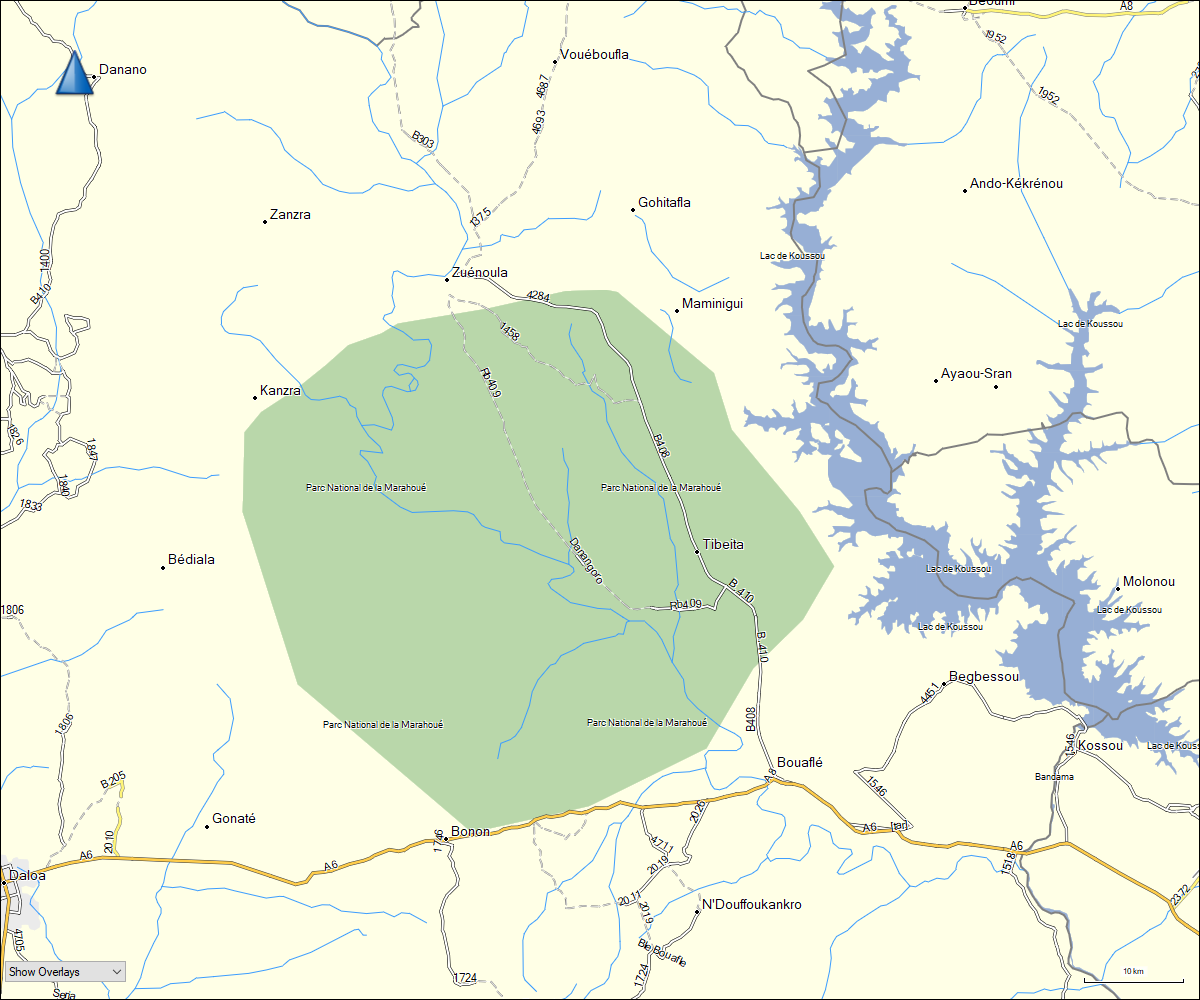

Example City Navigator East and West Africa: Parc National de la Marahoué and vicinity

(This image was taken with BaseCamp)

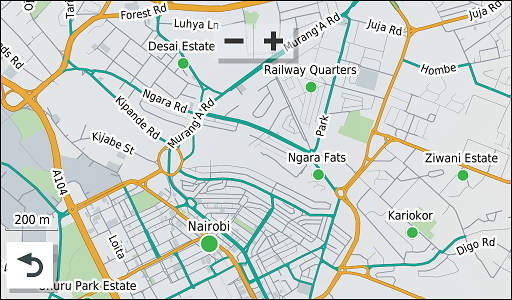

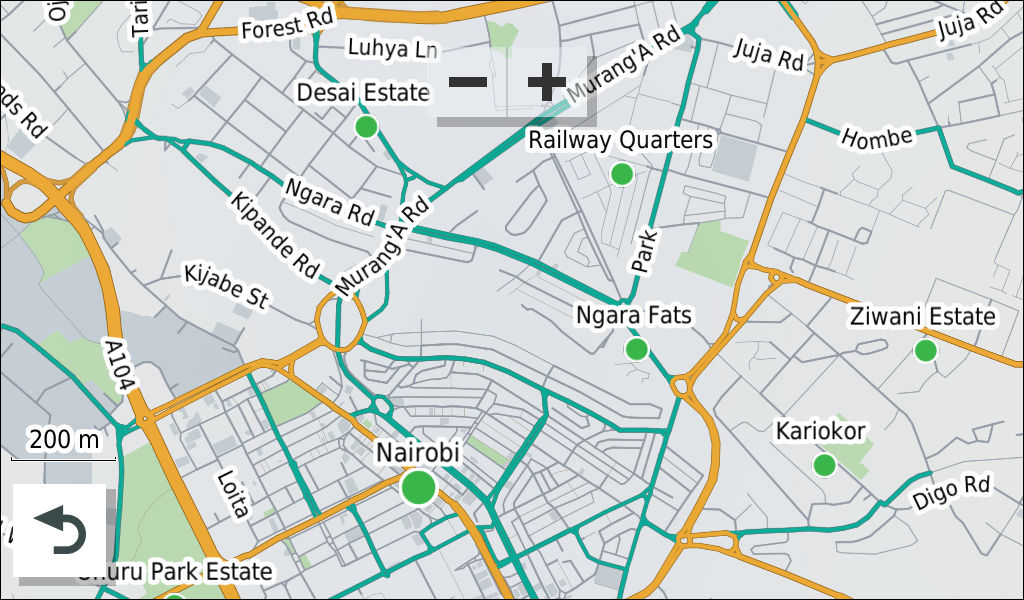

Example City Navigator East and West Africa: Nairobi

(This image was taken with the Overlander)

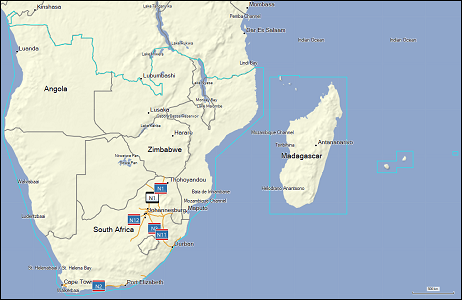

City Navigator southern Africa:

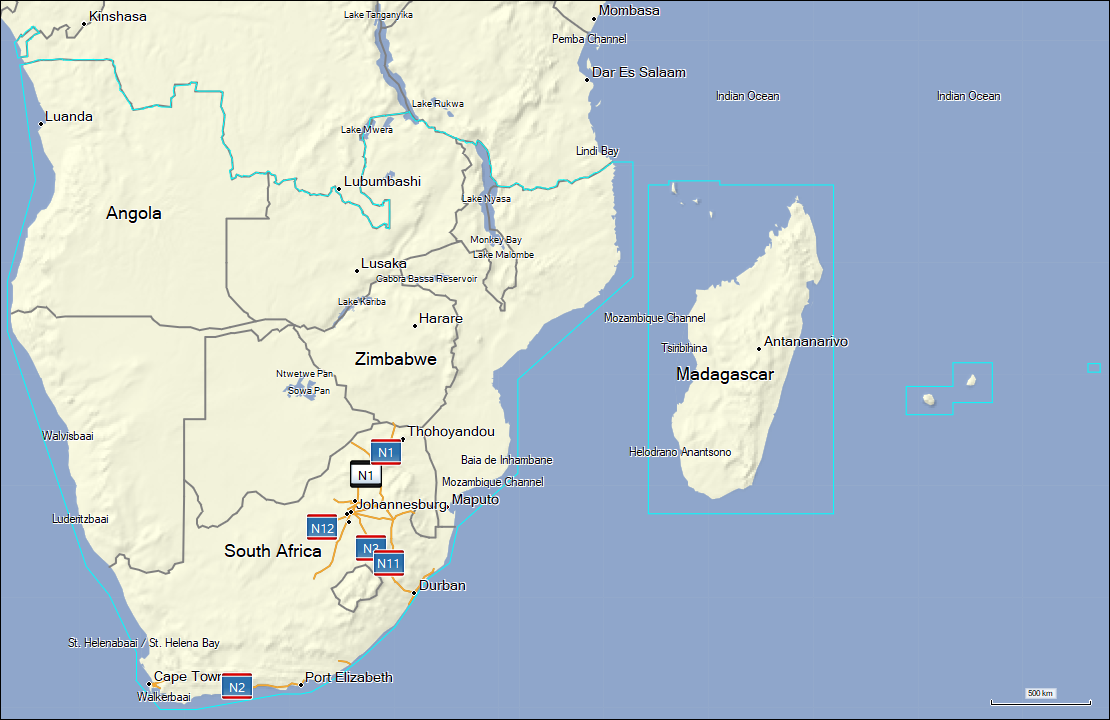

Abdeckung Madagaskar Kapstadt
GARMIN Overlander - City Navigator southern Africa: Coverage GARMIN Overlander - City Navigator southern Africa: Madagascar GARMIN Overlander -  City Navigator southern Africa: Kapstadt

Angola, Botswana, Comoros, Lesotho, Madagascar, Malawi, Mauritius, Mozambique, Namibia, Réunion, South Africa, Swaziland, Zambia, and Zimbabwe

(This image was taken with BaseCamp)

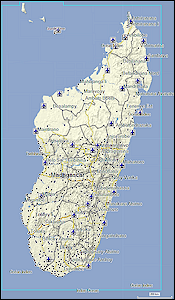

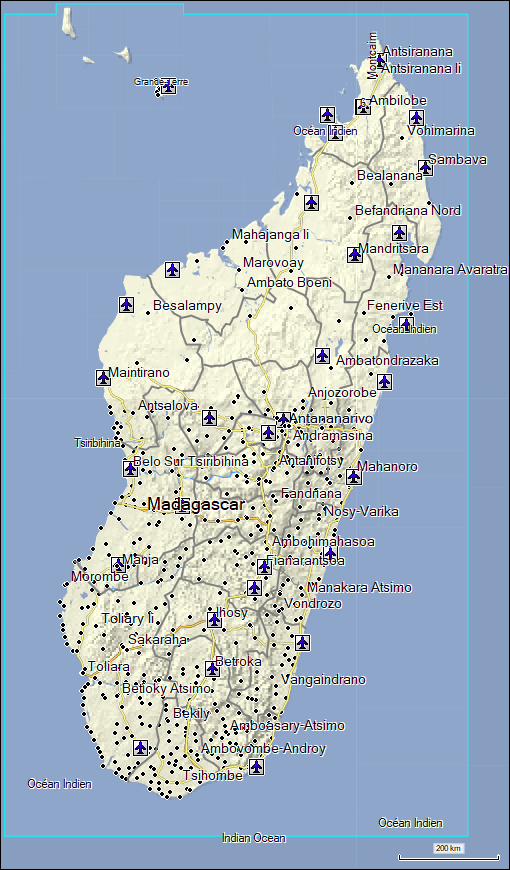

Example City Navigator southern Africa: Madagascar

(This image was taken with BaseCamp)

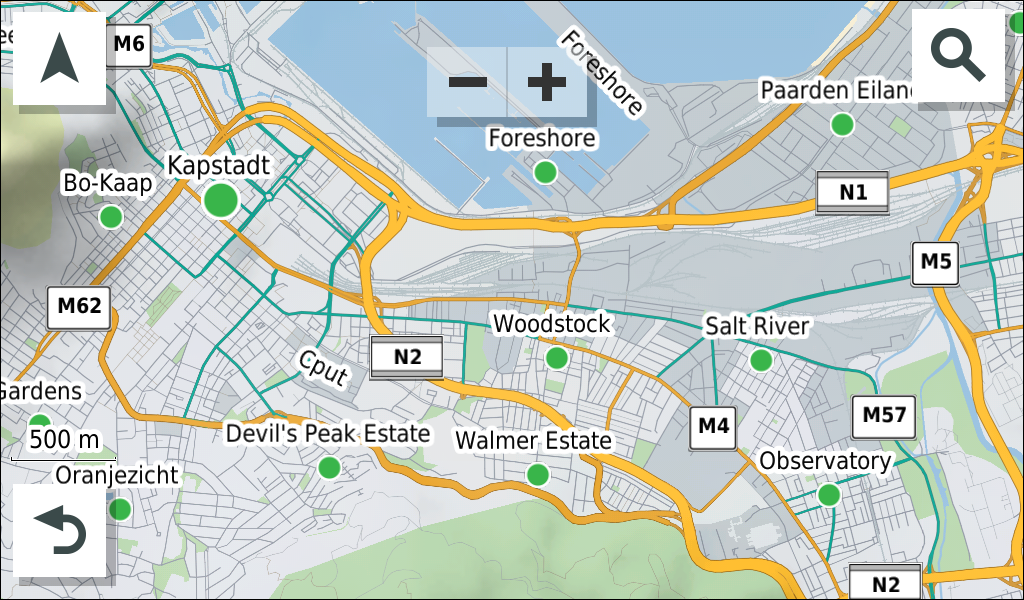

Example City Navigator southern Africa: Kapstadt

(This image was taken with the Overlander)

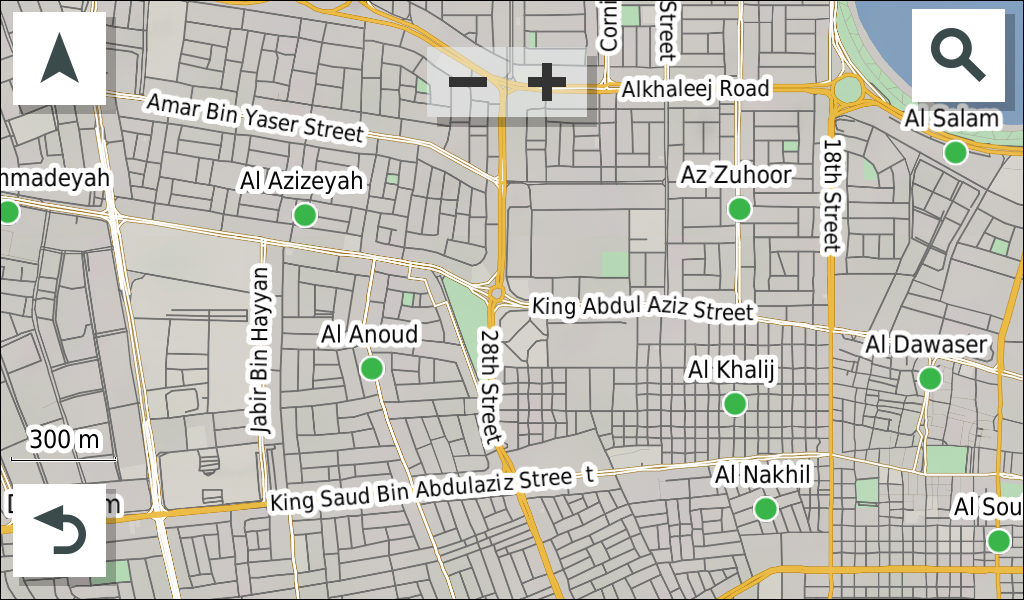

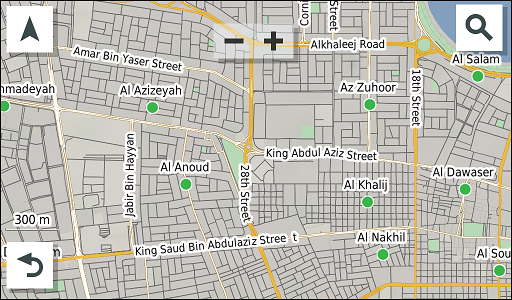

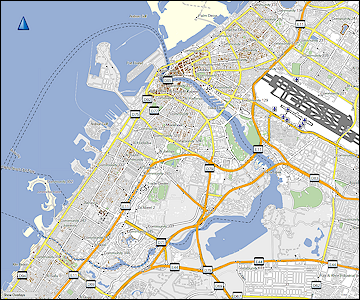

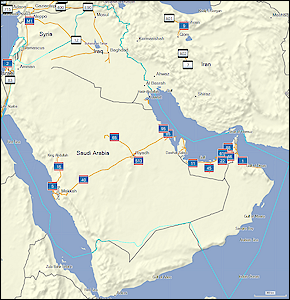

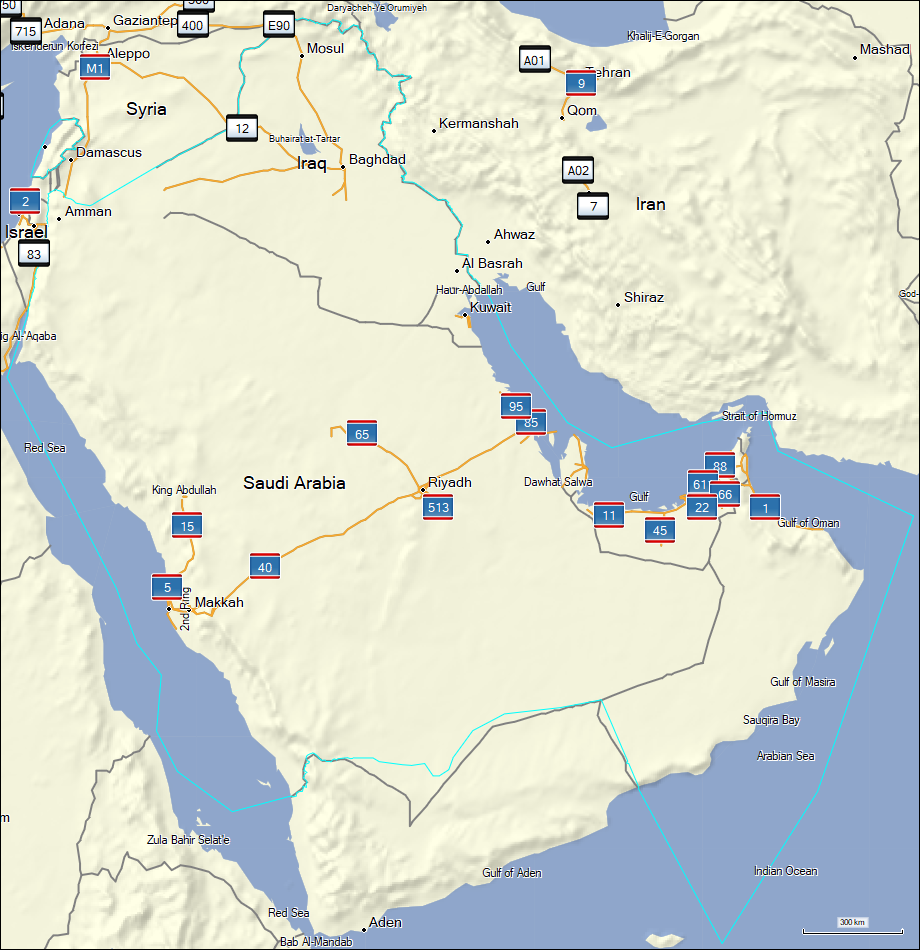

City Navigator Middle East:

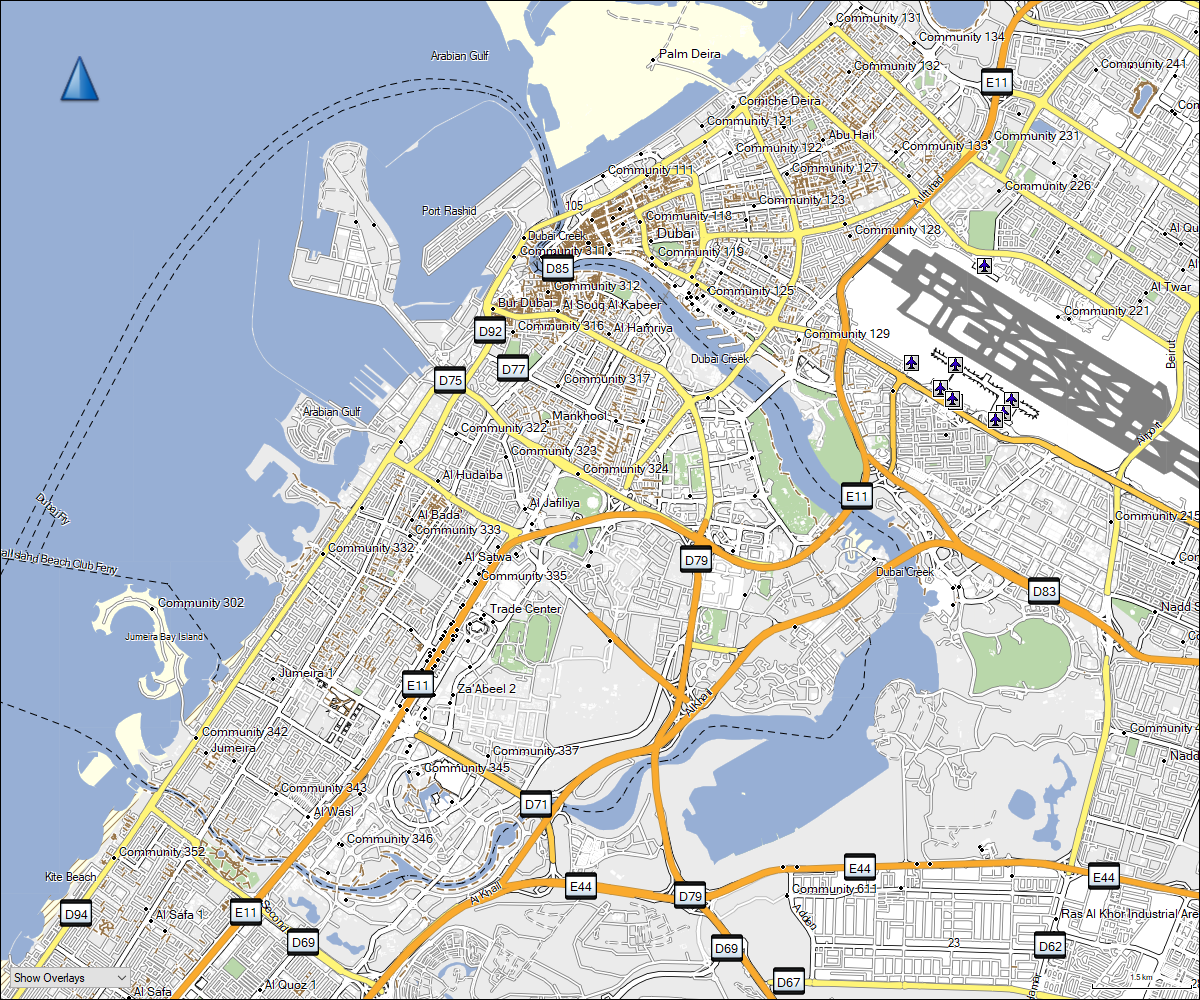

GARMIN Overlander - City Navigator Middle East
To table of contents To table of contents

Price:

GARMIN Overlander Add item to shopping basket CHF 738 | EUR 645
the package includes the following items:
  • GARMIN Overlander
  • Pre-installed pre-installed street map of all of Europe, Middle East and Africa including Tracks4Africa
  • nüMaps Lifetime - perpetual subscription to update the pre-installed map of Europe. Entitles you to download updated maps for the installation on your GPS device. There shall be four updates per year. The subscription is valid as long as you own the same unit.
  • Magnetic mount with suction cup
  • GARMIN GTM70 TMC traffic receiver with antenna combined with power cord for car cigarette lighter
  • RAM ball adapter with AMPS plate
  • USB connection cable for data exchange with a PC
  • Printed quick start guides in different languages including English, French, German and Italian
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the unit before shipping, so it comes ready to use
To table of contents To table of contents

Options:

Wireless backup camera BC35 with 12V power supply Add item to shopping basket CHF 198 | EUR 173 [Picture and details]
Magnetic car mount with suction cup(one such mount comes with the Overlander) Add item to shopping basket CHF 49 | EUR 43 [Picture and details]
RAM adapter (one such adapter comes with the Overlander) Add item to shopping basket CHF 29 | EUR 25 [Picture and details]
Mounting kit RAM adapter Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Mounting kit with extra large suction cup
(Does not include mounting bracket)
Add item to shopping basket CHF 22 | EUR 19 [Picture and details]
Dashboard discs Add item to shopping basket CHF 17 | EUR 15 [Picture and details]
GARMIN GTM70 TMC traffic receiver with antenna combined with power cord for car cigarette lighter
(One such traffic receiver combined with power cord comes with the Overlander)
Add item to shopping basket CHF 138 | EUR 121 [Picture and details]
Power cord for car cigarette lighter with USB connector Add item to shopping basket CHF 29 | EUR 25 [Picture and details]
Power supply without USB cable Add item to shopping basket CHF 22 | EUR 19 [Picture and details]
12 USB charger Add item to shopping basket CHF 29 | EUR 25 [Picture and details]
USB cable with miniUSB plug, fits the connector of the car mount Add item to shopping basket CHF 15 | EUR 13 [Picture and details]
USB cable with microUSB plug, fits the connector of unit
(one such USB cable comes with the Overlander)
Add item to shopping basket CHF 18 | EUR 16 [Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 9 | EUR 8 [Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 16 | EUR 14 [Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 19 | EUR 17 [Picture and details]
32.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 21 | EUR 18 [Picture and details]

All options for the GARMIN Overlander in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents To table of contents

Downloads:

Here we provide additional documentation and software updates:

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.
To table of contents To table of contents

Order:

To order the GARMIN Overlander as well as options please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents To table of contents

Specifications and packaging of the products are subject to change without notice.


Home | GPS | Special Offers | Deutsch
