GARMIN eTrex Euro
All items are available while supply lasts.
If you have questions, please use our contact form.

Hand held GPS receiver with large display and serial interface.

The GARMIN eTrex is very easy to use, supports multiple languages and has an extremely sensitive antenna, which provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples). The built-in serial interface supports data exchange with a PC.

Contents: Features - Overview - Main Pages - Price - Options - Downloads - Order

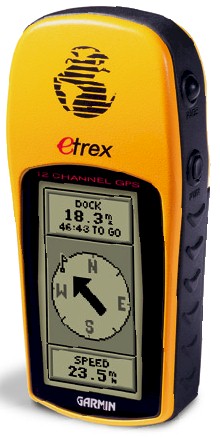

GARMIN eTrex

Features:

  • Portable, robust, to be operated with one hand (buttons are located ergonomically on each side of the unit)
  • Large, easy to read display with background illumination (64x128 pixels)
  • Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish and Turkish
  • Integrated 12 channel GPS receiver with very sensitive built-in antenna
  • Powered by batteries (2x AA, last about 22 h) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option)
  • Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
  • Supports the following protocols for data exchange with PC: NMEA 0183 with 4800 Baud, GARMIN, GARMIN DGPS, Text, RTCM IN, RTCM/NMEA and RTCM/TEXT
  • DGPS (Differential GPS) ready (GARMIN differential receiver available as an option)
  • Supports more than 100 different datum (coordinate systems)
  • Supports various display formats include the Swiss Grid
  • Firmware stored in Flash-Memory, can be updated by the user
  • Operating temperatures -15 .. 70°C (5° .. 158°F)
  • Serial interface RS-232 (connection cable available as an option)
  • Dimensions: 112x51x30 mm (4.4x2x1.2 inches)
  • Weight: 150 g (5.3 ounces, without batteries)
  • Water resistant up to approx. 3 feet (1 meter) for about 30 minutes

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

Information for navigation:

  • Stores up to 500 waypoints with name (up to 6 characters), icon (choice of 20 symbols) and coordinates
  • Stores one reversible route with up to 50 waypoints. Shows the current position in relation to these waypoints (direction and distance)
  • Current position (longitude, latitude, altitude)
  • Current accuracy of the position information
  • Current time
  • Current bearing
  • Current, average and maximum speed
  • Trip duration and distance (Odometer)
  • Stores 10 travelled routes (Tracking)
  • Time of sunrise and sunset
  • Supports metric and U.S. units

To table of contents

GARMIN eTrex Euro overview:

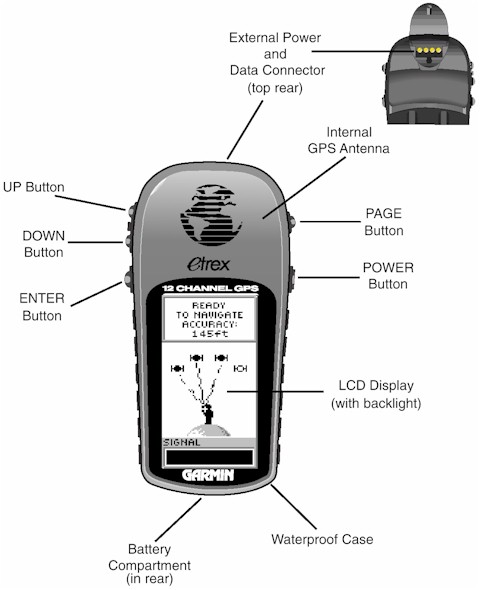

Buttons and connectors of the GARMIN eTrex

To table of contents

Main pages of the GARMIN eTrex Euro:

Main menu Satellites Pointer Map
GARMIN eTrex main menu GARMIN eTrex information about the signals from the satellites GARMIN eTrex pointer GARMIN eTrex map
  • Save current location as waypoint
  • Manage waypoints
  • Manage route
  • Manage travelled pathes (Tracks)
  • Setup
  • Accuracy of current position information
  • Strength of satellites' signals
  • Name of next waypoint
  • Distance to next waypoint
  • Estimated remaining time until arrival at next waypoint
  • Direction to next waypoint
  • Current speed
  • Waypoint
  • Route
  • Travelled path (Track)
  • Current scale

To table of contents

Price:

To table of contents

Options:

Power cord for car cigarette lighter Add item to shopping basket CHF 33 [Picture and details]
NMEA/RTCM data cable without power connection Add item to shopping basket CHF 14 [Picture and details]
Protective case Add item to shopping basket CHF 15 [Picture and details]
Belt clip Add item to shopping basket CHF 20 [Picture and details]
Retractable lanyard Add item to shopping basket CHF 30 [Picture and details]
Mounting adapter for larger handlebars (25..32 mm) Add item to shopping basket CHF 12 [Picture and details]
Mounting kit for dashboard Add item to shopping basket CHF 23 [Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle Add item to shopping basket CHF 12 [Picture and details]

All options for the GARMIN eTrex Euro in detail.

MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange)

To table of contents

Downloads:

Here we provide additional documentation and software updates related to the eTrex.

Get Acrobat Reader If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for GARMIN eTrex Euro please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
