GARMIN GPSMAP60CS / GPSMAP60CSx

Our shop and our offices remain closed until end of September.
You may try to reach us using the contact form.

Hand held GPS receiver with large color display, electronic compass, barometrical altimeter, integrated world and Europe/Africa map, auto-routing, USB and serial interface.

The GARMIN GPSMAP60CS / GPSMAP60CSx is very easy to use thanks to its rocker key and user friendly graphical interface. It supports multiple languages, has an integrated world map (overview) plus a base map of Europe, Africa and the near East. As an enhancement over the GPSMAP60C / GPSMAP60Cx, the GPSMAP60CS has an electronic compass and a barometrical altimeter. In addition, the GPSMAP60C has 56 MB of built-in memory to store even more detailed information, such as local roads, restaurants and points of interest. The GPSMAP60Cx has a slot for a standard micro SD memory card in the battery compartment and comes with a 64 MB memory card. The extremely sensitive antenna provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples). Because of the very low power consumption, the batteries of the GPSMAP60CS / GPSMAP60CSx last up to 20 hours. The built-in serial and USB interface support data exchange with a PC.

Contents: Features - Overview - Main Pages - Prices - Options - Downloads - Order

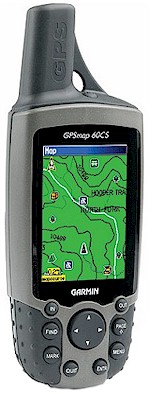

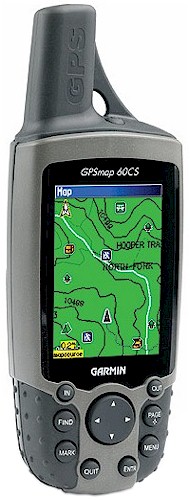

(Click on the image for an enlargement)

Features:

Portable, easy to use, robust, waterproof to IPX-7 standards (withstands 30 minutes under water up to 1 meter (3 feet) deep)
Large, easy to read color display with background illumination (256 colors, 160x240 pixel)
Easy to use thanks to its rocker key and push buttons and its user friendly, graphical interface
Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Norwegian, Polish, Portuguese, Spanish, and Swedish
Integrated 12 channel GPS receiver with very sensitive built-in antenna
(the GPSMAP60CSx is equipped with the even more powerful SiRFstar III GPS antenna)
Integrated world map (overview) with countries of all continents including major cities
Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps. Navigational information are available for the following countries: country list
Memory to store additional, even more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC:
- GPSMAP60CS: Integrated 56 MB memory.
- GPSMAP60CSx: Slot for standard micro SD memory card ("TransFlash"). A 64 MB memory card is included. Larger memory cards are available as an option. See also our attractive bundels with larger memory cards.
Electronic compass to check heading while not moving¹ (can be turned off so safe power, accuracy ±5°, resolution ±1°)
Barometrical altimeter for precise elevation recording², range -610..9144 m (-2000..+30000 feet); accuracy ±3 m (10 feet), resolution ±30 cm (1 foot)
Powered by batteries (2x AA, last about 20 h) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option)
Short time to first fix (TTFF³: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Supports the following protocols for data exchange with PC: NMEA 0183 with 4800 Baud, GARMIN, GARMIN DGPS, Text, RTCM IN, RTCM/NMEA and RTCM/TEXT
Supports WAAS (improves accuracy of position indication from typical better than 15 m (49 feet) to typical better than 3 m (10 feet))
DGPS (Differential GPS) ready (GARMIN differential receiver available as an option)
Supports more than 100 different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -15 .. 70°C (5° .. 158°F)
USB and serial interface RS-232 (USB connection cable included)
Dimensions: 180x61x33 mm (2.4x6.1x1.3 inches)
Weight: 150 g (5.3 ounces, without batteries)

¹) In order to check the heading with a GPS, a minimal movement with a speed of at least 5..8 km/h (3..5 mi/h) is required. Where no movement is not possible, a compass is needed.
²) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
³) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

Stores up to 1000 waypoints with name (up to 10 characters), icon (choice of 75 symbols) and coordinates
Stores up to 50 reversible routes with up to 250 waypoints each.
World map with zoom function in the range of 800 km to 30 m (500 mi to 120 ft)
Information on the map displayed in 5 levels of details
Find waypoints, favorites, cities and exits
Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. These maps require a Windows PC plus a connection cable and are available as options, see MapSource.
Bearing (electronic compass)
Current position (longitude, latitude, altitude)
Altitude via air pressure (barometer)
Current accuracy of the position information
Current time
Current bearing
Current, average and maximum speed
Trip duration and distance (Odometer)
Records the travelled path (track), capacity 10'000 track points
Stores 20 travelled routes (tracks) with up to 500 track points for each track
Supports metric and U.S. units

Additional features:

Air pressure trend (can take pressure readings every 15 minutes even while power is off)
Calendar
Alarm clock (GPSMAP60CS only)
Stop watch
Calculator
Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon
Various games

To table of contents

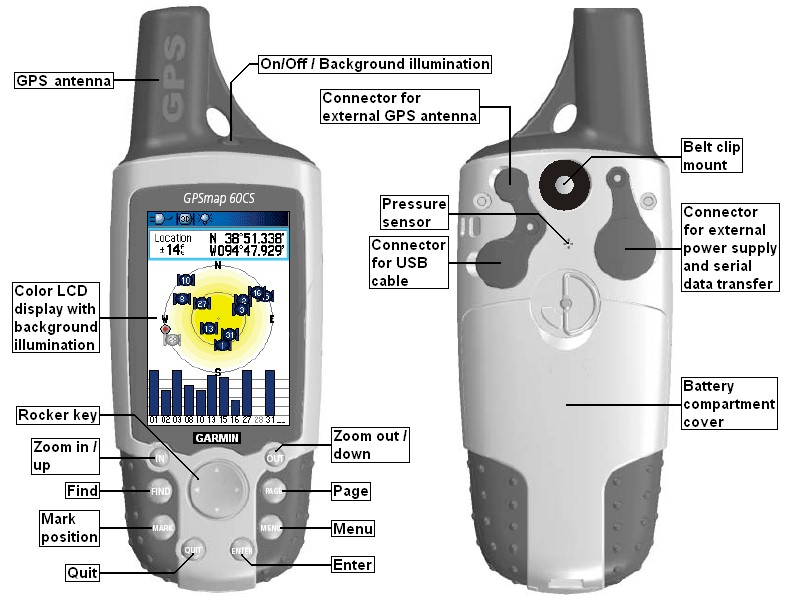

GARMIN GPSMAP60CS / GPSMAP60CSx overview:

To table of contents

Main pages of the GARMIN GPSMAP60CS / GPSMAP60CSx:

Note: You may configure the main pages through options. The screenshots below are just examples, the actual appearance may vary from the pages shown below depending on the current settings. Especially the content of the data fields is user configurable. You can choose from 39, rsp. 15 different values, see selection 1, rsp. selection 2.

Main Menu	Satellites	Navigation

Recording of the travelled path (tracks) Manage Routes Graphical representation "highway" System settings Proximity Calendar Alarm clock (GPSMAP60CS only) Calculator Stop watch Information about the sun-earth-moon constellation Information regarding hunting and fishing Games Current time and date	Accuracy of current position information Current position (coordinates) Constellation of the satellites Strength of satellites' signals	Current speed Distance to the next turn Estimated arrival time at the final destination Estimated time to the next turn Bearing to the next turn For each data field, you can choose from 39 different values¹)

Main Menu

Satellites

Navigation

Recording of the travelled path (tracks)
Manage Routes
Graphical representation "highway"
System settings
Proximity
Calendar
Alarm clock (GPSMAP60CS only)
Calculator
Stop watch
Information about the sun-earth-moon constellation
Information regarding hunting and fishing
Games
Current time and date

Accuracy of current position information
Current position (coordinates)
Constellation of the satellites
Strength of satellites' signals

Current speed
Distance to the next turn
Estimated arrival time at the final destination
Estimated time to the next turn
Bearing to the next turn

For each data field, you can choose from 39 different values¹)

Trip Computer	Elevation	Map

Travelled trip distance Maximum speed Moving time Average speed (moving time only) Stopped time Average speed (total time) Elevation Accumulated travelled distance (Odometer) For each data field, you can choose from 39 different values¹) You may choose to display 3 large data fields instead of 8 small data fields.	Minimum elevation Maximum elevation Elevation profile with scales Ascending/descending rate Current elevation For each data field, you can choose from 15 different values²)	Current speed Current heading Guidance message Map with current position (map may be oriented "north up" or "track up") Current scale For each data field, you can choose from 39 different values¹)

Trip Computer

Elevation

Map

Travelled trip distance
Maximum speed
Moving time
Average speed (moving time only)
Stopped time
Average speed (total time)
Elevation
Accumulated travelled distance (Odometer)

For each data field, you can choose from 39 different values¹)

You may choose to display 3 large data fields instead of 8 small data fields.

Minimum elevation
Maximum elevation
Elevation profile with scales
Ascending/descending rate
Current elevation

For each data field, you can choose from 15 different values²)

Current speed
Current heading
Guidance message
Map with current position (map may be oriented "north up" or "track up")
Current scale

For each data field, you can choose from 39 different values¹)

Autozoom	Route	Highway

Shortly before you arrive at the next turn, the GPS shows a map at a very small scale and indicates the route in great details ("autozoom"). Guidance message with road names Distance to the next turn Estimated remaining time until the next turn Very detailed map with route	List of turns with direction, distance and estimated remaining time until turn GPS computes routes, optimized on time, distance or time for calculation	Current speed Distance to the next turn Current heading Current time Graphical perspective of the route For each data field, you can choose from 39 different values¹)

Autozoom

Route

Highway

Shortly before you arrive at the next turn, the GPS shows a map at a very small scale and indicates the route in great details ("autozoom").

Guidance message with road names
Distance to the next turn
Estimated remaining time until the next turn
Very detailed map with route

List of turns with direction, distance and estimated remaining time until turn
GPS computes routes, optimized on time, distance or time for calculation

Current speed
Distance to the next turn
Current heading
Current time
Graphical perspective of the route

For each data field, you can choose from 39 different values¹)

Data fields:

Selection 1: For each data field, you can choose one from the following 39 values.

No Name Explanation

1 Accuracy GPS The current accuracy of your GPS determined position.

2 Bearing The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.

3 Course The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.

4 Depth Depth of water (requires NMEA input from a sonar device).

5 Distance to next Current distance to the next waypoint or turn.

6 Distance to destination Current distance to the final destination.

7 ETA at next Estimated arrival time at the next turn.

8 ETA at destination Estimated arrival time at the final destination.

9 Elevation Current altitude above sea level.

10 Glide ratio The ratio of horizontal distance travelled to vertical distance.

11 Glide ratio to destination The glide ratio required to descend from your current position and elevation to the destination's elevation.

12 Heading The direction in which you are currently moving.

13 Location (lat/lon) Current location as latitude/longitude coordinates.

14 Location (selected) Current location indicated in the selected format (datum).

15 Odometer Total distance travelled since last reset*).

16 Off Course The distance you are off the desired course.

17 Pointer Arrow that indicates the direction to travel to the next point on a route.

18 Speed Current speed.

19 Speed - Maximum Maximum speed since last reset*).

20 Speed - Moving Avg. Average speed without the time with no motion since the last reset*).

21 Speed - Overall Avg. Average speed including the time with no motion since the last reset*).

22 Sunrise Time of sunrise at the current position.

23 Sunset Time of sunset at the current position.

24 Time To Destination Estimated travel time to the final destination.

25 Time To Next Estimated travel time to the next waypoint (turn, crossing etc.).

26 Time of Day Current time.

27 To Course Direction to the planned course.

28 Trip Odometer Travelled distance since last reset*).

29 Trip Time - Moving Time with motion since last reset*).

30 Trip Time - Stopped Time without motion since last reset*).

31 Trip Time - Total Total time since last reset*).

32 Turn The direction of and the distance to the next turn on a route.

33 Velocity Made Good The rate of closure to the destination, based upon your current speed and course.

34 Vertical Speed Current ascending or descending speed.

35 Vertical Speed To Dest Required rate of ascent or descent to reach the final destination.

36 Water Speed Current speed over water (requires an external data acquisition device).

37 Water Temperature Temperature of the water (requires an external data acquisition device).

38 Waypoint At Dest Name of the waypoint at the final destination.

39 Waypoint At Next Name of the next waypoint.

*) You may reset the trip-counters, the Odometer and the Maximum Speed independently of each other.

No	Name	Explanation
1	Accuracy GPS	The current accuracy of your GPS determined position.
2	Bearing	The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
3	Course	The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
4	Depth	Depth of water (requires NMEA input from a sonar device).
5	Distance to next	Current distance to the next waypoint or turn.
6	Distance to destination	Current distance to the final destination.
7	ETA at next	Estimated arrival time at the next turn.
8	ETA at destination	Estimated arrival time at the final destination.
9	Elevation	Current altitude above sea level.
10	Glide ratio	The ratio of horizontal distance travelled to vertical distance.
11	Glide ratio to destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
12	Heading	The direction in which you are currently moving.
13	Location (lat/lon)	Current location as latitude/longitude coordinates.
14	Location (selected)	Current location indicated in the selected format (datum).
15	Odometer	Total distance travelled since last reset*).
16	Off Course	The distance you are off the desired course.
17	Pointer	Arrow that indicates the direction to travel to the next point on a route.
18	Speed	Current speed.
19	Speed - Maximum	Maximum speed since last reset*).
20	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
21	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
22	Sunrise	Time of sunrise at the current position.
23	Sunset	Time of sunset at the current position.
24	Time To Destination	Estimated travel time to the final destination.
25	Time To Next	Estimated travel time to the next waypoint (turn, crossing etc.).
26	Time of Day	Current time.
27	To Course	Direction to the planned course.
28	Trip Odometer	Travelled distance since last reset*).
29	Trip Time - Moving	Time with motion since last reset*).
30	Trip Time - Stopped	Time without motion since last reset*).
31	Trip Time - Total	Total time since last reset*).
32	Turn	The direction of and the distance to the next turn on a route.
33	Velocity Made Good	The rate of closure to the destination, based upon your current speed and course.
34	Vertical Speed	Current ascending or descending speed.
35	Vertical Speed To Dest	Required rate of ascent or descent to reach the final destination.
36	Water Speed	Current speed over water (requires an external data acquisition device).
37	Water Temperature	Temperature of the water (requires an external data acquisition device).
38	Waypoint At Dest	Name of the waypoint at the final destination.
39	Waypoint At Next	Name of the next waypoint.

Selection 2: For each data field, you can choose one from the following 15 values.

No Name Explanation

1 Ambient pressure The uncalibrated current pressure.

2 Ascent average The average vertical distance of ascents.

3 Ascent maximum The maximum ascent rate.

4 Ascent total The total distance ascended.

5 Barometer The calibrated current pressure.

6 Descent average The average vertical distance of descents.

7 Descent maximum The maximum descent rate.

8 Descent total The total distance descended.

9 Elevation Current altitude above sea level.

10 Minimum elevation Lowest altitude above sea level since last reset..

11 Maximum elevation Highest altitude above sea level since last reset.

12 Glide ratio The ratio of horizontal distance travelled to vertical distance.

13 Glide ratio to destination The glide ratio required to descend from your current position and elevation to the destination's elevation.

14 Vertical Speed Current ascending or descending speed.

15 Vertical Speed To Dest Required rate of ascent or descent to reach the final destination.

No	Name	Explanation
1	Ambient pressure	The uncalibrated current pressure.
2	Ascent average	The average vertical distance of ascents.
3	Ascent maximum	The maximum ascent rate.
4	Ascent total	The total distance ascended.
5	Barometer	The calibrated current pressure.
6	Descent average	The average vertical distance of descents.
7	Descent maximum	The maximum descent rate.
8	Descent total	The total distance descended.
9	Elevation	Current altitude above sea level.
10	Minimum elevation	Lowest altitude above sea level since last reset..
11	Maximum elevation	Highest altitude above sea level since last reset.
12	Glide ratio	The ratio of horizontal distance travelled to vertical distance.
13	Glide ratio to destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
14	Vertical Speed	Current ascending or descending speed.
15	Vertical Speed To Dest	Required rate of ascent or descent to reach the final destination.

To table of contents

Prices:

GARMIN GPSMAP60CS / GPSMAP60CSx:
These models have been discontinued; however, you can still order options for the GPSMAP60CS / GPSMAP60CSx.

To table of contents

Options:

4.0 GB micro SDHC memory card including µSD to SD adapter
(for GPSMAP60CSx only) CHF 9 [Picture and details]

USB cable for data exchange with PC CHF 14 [Picture and details]

Power cord for car cigarette lighter
(One such cable is included in the Auto-Packs) CHF 25 [Picture and details]

Belt clip CHF 17 [Picture and details]

Retractable lanyard CHF 28 [Picture and details]

Mounting adapter for larger handlebars (25..32 mm) CHF 11 [Picture and details]

Mounting kit for dashboard
(One such mounting kit is included in the Auto-Packs) CHF 30 [Picture and details]

Adhesive base for dashboard mounting kit to use it in a second vehicle
(One such adhesive base is included in the Auto-Packs) CHF 11 [Picture and details]

Extension cable for external GPS antenna CHF 45 [Picture and details]

Adapter cable BNC to MCX for external GPS antenna CHF 29 [Picture and details]

Adapter cable MCX to BNC for external GPS antenna CHF 39 [Picture and details]

All options for the GARMIN GPSMAP60CS / GPSMAP60CSx in detail.

MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

GPSMAP60CS:

Owner's manual (in PDF format, 1.6 MB)
Firmware Upgrade V4.20 (Self-extracting ZIP-file, requires a PC and a connection cable, 1.8 MB)
List of changes made with Firmware Upgrades

GPSMAP60CSx:

Owner's manual (in PDF format, 1.5 MB)
Quick start guide (in PDF format, 289 kB)
GPS Chipset Type G V2.90 (Self-extracting ZIP-file, requires a PC and a connection cable, 634 kB)
List of changes made with GPS Chipset Type G Software Upgrades
Firmware Upgrade V4.00 (Self-extracting ZIP-file, requires a PC and a connection cable, 2.0 MB)
List of changes made with Firmware Upgrades

GPSMAP60CS and GPSMAP60CSx:

Preloaded points of interest database. If MapSource data is loaded to this unit, the unit's preloaded points of interest database (POI) will be erased. Download and execute this file to restore the POI database. (Self-extracting ZIP-file, requires a PC and a connection cable, 3.75 MB)
xImage software V2.30 (create your own icons etc, 3.5 MB).

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order the GARMIN GPSMAP60CS / GPSMAP60CSx plus options please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.

4.0 GB micro SDHC memory card including µSD to SD adapter (for GPSMAP60CSx only)	CHF 9	[Picture and details]
USB cable for data exchange with PC	CHF 14	[Picture and details]
Power cord for car cigarette lighter (One such cable is included in the Auto-Packs)	CHF 25	[Picture and details]
Belt clip	CHF 17	[Picture and details]
Retractable lanyard	CHF 28	[Picture and details]
Mounting adapter for larger handlebars (25..32 mm)	CHF 11	[Picture and details]
Mounting kit for dashboard (One such mounting kit is included in the Auto-Packs)	CHF 30	[Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle (One such adhesive base is included in the Auto-Packs)	CHF 11	[Picture and details]
Extension cable for external GPS antenna	CHF 45	[Picture and details]
Adapter cable BNC to MCX for external GPS antenna	CHF 29	[Picture and details]
Adapter cable MCX to BNC for external GPS antenna	CHF 39	[Picture and details]
