TRAMsoft GmbH - GARMIN etrex 10 / 20/20x / 30/30x (english)

These models support the Russian GLONASS satellites

Rugged, portable, waterproof GPS devices with easy to read display and USB interface for data exchange with computer. Buttons and click stick for easy use. The model etrex 10 has a monochrome display and a pre-installed worldwide basemap. The models etrex 20/20x and etrex 30/30x are equipped with color displays, the screens of the x-models have a resolution of 240x320 pixels, the display resolution of the other models is 176x220 pixels. The models etrex 20/30 have a pre-installed basemap and support additional maps which are available as options. Both models have 1.7 GB built-in memory and a slot for an optional µSD memory card. The models etrex 20x/30x have a pre-installed map of Western Europe which supports autorouting providing turn-by-turn directions. These models are equipped with 3.6 GB built-in memory of which 3.3 GB are occupied by the pre-installed map. They also provide support for optional maps and a slot for an optional µSD memory card.
The models etrex 30/30x are additionally equipped with a barometrical altimeter and a tilt-compensated electronic compass. In addition, they can receive signals from a heart rate monitor or a cadence sensor and they support wireless data exchange with compatible devices. All models are well suited for all kinds of outdoor activities such as hiking, biking and geocaching, but they can also be used in vehicles. The display is highly user configurable. Multiple settings can be stored as profiles which allow quick switching between different activities.

Contents: Models - Features - Overview - Main Pages - Prices - Options - Downloads - Order

Differences between the GARMIN etrex 10 / 20/20x / 30/30x:

All models provide similar functions; these are the main differences:

Feature / Model	GARMIN etrex 10	GARMIN etrex 20	GARMIN etrex 20x	GARMIN etrex 30	GARMIN etrex 30x

Display	Gray scale (monochrome) 128x160 pixels	Color 176x220 pixels	Color 240x320 pixels	Color 176x220 pixels	Color 240x320 pixels
Ability to add maps	-	YES	YES	YES	YES
Built-in memory	-	1.7 GB	3.6 GB 318 MB free *	1.7 GB	3.6 GB 318 MB free *
Slot for µSD memory card	-	YES	YES	YES	YES
Barometrical altimeter	-	-	-	YES	YES
3D-Compass	-	-	-	YES	YES
Support for Chirp	-	-	-	YES	YES
Support for heart rate and speed/cadence sensor	-	-	-	YES	YES
Data exchange with compatible devices	-	-	-	YES	YES
Price	discontinued	discontinued	discontinued	discontinued	discontinued

*) 3.3 GB are occupied by the pre-installed map TopoActive Western Europe.

To table of contents

Features:

Portable, easy to use, robust, waterproof to IPX-7 standard (withstands 30 minutes under water up to 1 meter (3 feet) deep).
Easy to read display with background illumination. The etrex 10 has a monochrome display with 128x160 pixels, the models etrex 20 and 30 have a color display with 176x220 pixels, the models etrex 20x and 30x have a color display with 240x320 pixels.
Profiles to manage multiple collections of settings for different purposes.
Easy to use with buttons and thumb stick.
Configurable display with various dashboards.
Multilingual user interface in Arabic, Bulgarian, Croatian, Czech, Danish, Dutch, English, Farsi (Persian), Finnish, French, German, Greek, Hungarian, Italian, Latvian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Swedish and Turkish.
Integrated antenna to receive signals of GPS and GLONASS satellites. The accuracy of the position indication gets increased by combining the two systems because there are usually more satellites visible.
Integrated base map with countries of all continents including major cities.
The models etrex 20x and 30x come with a pre-installed map of Western Europe which supports autorouting providing turn-by-turn directions (TopoActive West Europe), see description.
Memory: The etrex 20 and 30 have 1.7 GB built-in memory to store user data and to receive additional, more detailed maps which can be transferred from a PC to the GPS. The etrex 20x and 30x have 3.6 GB built-in memory to store user data and to receive additional, more detailed maps, however, 3.3 GB are occupied by the pre-installed map. All four models are equipped with a slot for a standard micro SD memory card ("TransFlash"). Memory cards are available as an option.
The etrex 30/30x are equipped with an electronic 3D compass to check the heading while not moving¹, accuracy ±5°, resolution ±1°, can be turned off to safe power. "3D" means tilt-compensated compass which does not require the device to be level for accurate readings.
The etrex 30/30x are equipped with a barometrical altimeter for precise elevation recording².
Powered by 2 AA batteries or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option). Battery life time about 25 h.
Short time to first fix (TTFF³: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
Supports the american GPS and the russian GLONASS system as well as WAAS (improves accuracy of position indication from typical better than 15 m (49 feet) to typical better than 3 m (10 feet))
Supports more than 100 different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 70°C (-4° .. 158°F)
Highspeed USB interface, USB cable for data exchange with PC included)
Dimensions: 54x103x33 mm (2.1x4.0x1.3 inches)
Weight: 140 g (5 ounces)

¹) In order to check the heading with a GPS, a minimal movement with a speed of at least 5..8 km/h (3..5 mi/h) is required. Where no movement is not possible, a compass is needed.
²) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
³) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

Stores up to 1000 waypoints (etrex 10) rsp. 2000 waypoints (etrex 20/20x and 30/30x) with name (up to 30 characters), icon (choice of 135 symbols) and coordinates
Stores up to 50 (etrex 10) rsp. 200 (etrex 20/20x und 30/30x) reversible routes
World map with zoom function in the range of 800 km to 5 m (500 mi to 20 ft)
Information on the map displayed in 5 levels of details
Find waypoints, favorites, cities and exits
Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory (etrex 20/20x und 30/30x only). These maps require a Windows PC plus a connection cable and are available as options, see MapSource.
Electronic, tilt-compensated compass to check the heading while not moving (etrex 30/30x only)
Current position (longitude, latitude, altitude)
Altitude via air pressure (barometer, etrex 30/30x only)
Current accuracy of the position information
Current time
Current heading
Current, average and maximum speed
Trip duration and distance (Odometer)
Records the travelled path (track), capacity 10'000 track points
Stores 100 (etrex 10) rsp. 200 (etrex 20/20x and 30/30x) travelled routes (tracks)
Supports metric and U.S. units

Additional features:

Air pressure trend (can take pressure readings every 15 minutes even while power is off, etrex 30/30x only)
Calendar
Alarm clock
Stop watch
Calculator with basic and scientific operations
Area calculation
Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon
Information for hunters and fishers
Heart rate, requires optional heart rate monitor (etrex 30/30x only)
Cadence of the crank arms, requires optional speed and cadence sensor (etrex 30/30x only)
Temperature, requires optional temperature sensor (etrex 30/30x only)
Supports Chirp Geocaching beacon (etrex 30/30x only)
Wireless unit-to-unit data transfer (exchange data with compatible devices, etrex 30/30x only)
Support for optional VIRB action cameras, see also TrailTech and VIRB (etrex 30/30x only)

To table of contents

GARMIN etrex 10/20/20x/30/30x:

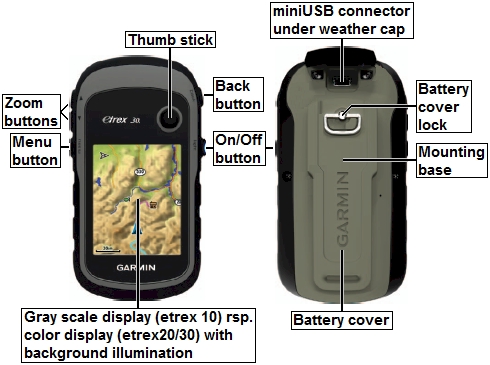

Connectors and buttons of the GARMIN etrex 10/20/30

To table of contents

Main pages of the etrex 10/20/20x/30/30x:

Main pages of the GARMIN etrex 10:

The images below show the display of the etrex 10 in true resolution (128x160 pixels). This does not necessarily mean that the display is shown it its true size (36x43 mm). The actual size of these images depends on the properties of your display.

Note: Even if the displays of all three models are basically of the same size, the monochrome pages of the etrex 10 appear smaller than the colored pages of the etrex 20 and 30. This is because the color display has more pixels per square inch than the monochrome display.

Many of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 38 different values, see selection. In addition, many pages support so called dashboards which show some pre-selected values.

Menu (1 of 4)	Menu (2 of 4)	Menu (3 of 4)	Menu (4 of 4)	Satellites

Show map page Select navigation destination Show compass page (navigation) Store current position as waypoint and edit it Trip computer Change settings (language, units, formats, profiles etc.)	Manage waypoints Manage geocaches Manage routes Manage tracks Manage active route Manage proximity alarms	Waypoint averaging to increase the accuracy of the position information Man over bord: Store current position and navigate to it Calculate area based on a track Switch profile Show calendar Calculator with basic and scientific operations	Show calendar Calculator with basic and scientific operations Sunrise, sunset, moonrise, moonset and sun-earth-moon constellation Stopp watch with split times (laps) Information for hunting and fishing Current position, accuracy of position indication, constellation of the satellites, signal strength	Coordinates of the current position System used (GPS, GLONASS) Accuracy of position indication Current elevation above sea level Position of the satellites in the sky Strength of the satellites' signals. A "D" in the bar indicates "differential GPS". This means the device receives the signal of a WAAS satellite, which increases the accuracy of the position indication.

Map	Navigation	Trip Computer (small font)	Trip Computer (large font)	Waypoint

Map with waypoints, current position (black triangle), planed route (black, thick line) and travelled path (track; gray, thin line)	Current speed Distance to next turn Current elevation above sea level Current time Direction to next turn For each data field, you can choose from 38 different values ¹)	Time to next sunrise/sunset Current elevation above sea level Travelled distance (odometer) Current speed Maximum speed Time moving Average speed (only time moving without stopped time) Stopped time (time while not moving) Average speed (including stopped time) Switch between small font as shown above and large font as shown on the right. For each data field, you can choose from 38 different values ¹)	Time to next sunrise/sunset Current elevation above sea level Travelled distance (odometer) Current speed Time moving Switch between large font as shown above and small font as shown on the left. For each data field, you can choose from 38 different values ¹)	Symbol (choice of 135 symbols) Name (up to 30 characters) Note (up to 50 characters) Coordinates Elevation above sea level Show waypoint on the map page Navigate to this waypoint

Main pages of the GARMIN etrex 20 and 30:

The images below show the display of the etrex 20 and 30 in true resolution (176x220 pixels). This does not necessarily mean that the display is shown it its true size (35x44 mm). The actual size of these images depends on the properties of your display.

Many of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 38 (etrex 20) rsp. 50 (etrex 30) different values, see selection. In addition, many pages support so called dashboards which show some pre-selected values.

Menu (1 of 5)	Menu (2 of 5)	Menu (3 of 5)	Menu (4 of 5)

Show map page Select navigation destination Show compass page (navigation) Save current position as waypoint and edit it Trip computer Change settings (language, units, formats, profiles etc.)	Manage geocaches Show elevation profile Show pictures Manage waypoints Switch profile Manage routes Manage proximity alarms	Manage active route Manage tracks Wireless data exchange with compatible units Show calendar Calculate area based on a track Sunrise, sunset, moonrise, moonset and sun-earth-moon constellation	Calculator with basic and scientific operations Information for hunting and fishing Alarm clock Stopp watch with split times (laps) Point the device at an object an navigate to it Man overbord: Save current position at navigate to it

Menu (5 of 5)	Satellites	Trip Computer Small Font	Trip Computer Large Font

Point the device at an object an navigate to it Man overbord: Save current position at navigate to it Waypoint averaging to increase the accuracy of the position information Manage proximity alarms Current position, accuracy of position indication, constellation of the satellites, signal strength	Coordinates of the current position System used (GPS, GLONASS) Accuracy of position indication Current elevation above sea level Position of the satellites in the sky Strength of the satellites' signals. A "D" in the bar indicates "differential GPS". This means the device receives the signal of a WAAS satellite, which increases the accuracy of the position indication.	Time to next sunrise/sunset Current elevation above sea level Travelled distance (odometer) Current speed Maximum speed Accumulated ascent Maximum elevation above sea level Coordinates of the current position Time moving Switch between small font as shown above and large font as shown on the right. For each data field, you can choose from 38 (etrex 20) rsp. 50 (etrex 30) different values ¹)	Time to next sunrise/sunset Current elevation above sea level Travelled distance (odometer) Current speed Coordinates of the current position Switch between large font as shown above and small font as shown on the left. For each data field, you can choose from 38 (etrex 20) rsp. 50 (etrex 30) different values ¹)

Route	Navigation	Elevation Profile	Waypoint

Direction Map (image taken using optional map City Navigator Europe NT) with active route (pink line) and current position (blue triangle)	Current speed Distance to next turn Estimated arrival time at destination Estimated travel time to next turn Direction to next turn	Date and time of the recording at the selected point Elevation above sea level at the selected point Evevation profile with scales	Symbol (choice of 135 symbols) Name (up to 30 characters) Note (up to 50 characters) Coordinates Elevation above sea level Show waypoint on the map page Navigate to this waypoint

Waypoint Averaging	Calculator	Stop Watch	Calendar

Name of the waypoint Accuracy (progress) Coordinates of the averaged position Elapsed time Save waypoint	Result Scientific operations Memory operations Numeric keypad Basic operations	Elapsed time Number of completed laps Distance of one lap Time for the last completed lap Elapsed time of the current lap Elapsed time for all completed laps Average time for one lap Start/stop watch Start new lap	Calendar Highlighted day (green) Waypoints and tracks created on the highlighted day Today (black rectangle)

Base Map - Example Switzerland	Base Map - Example Denver	Base Map - Example Sydney	Detailed Map - Example Topo Switzerland

Base Map: Example Switzerland with two data fields and current position (blue triangle)	Base Map: Example Denver, USA with no data fields and current position (blue triangle)	Base Map: Example Sydney, Australien with no data fields and current position (blue triangle)	Detailed map (image taken using optional map Topo Switzerland V3 with pattern view) Various waypoints Planned route (pink line) Travelled path (track, blue line) Scale

Topographic Map of Switzerland
Hittnau (vector view)	Hittnau (pattern view)	Monte Rosa Hut (vector view)	Monte Rosa Hut (pattern view)

Images taken using optional map Topo Switzerland V3.

Data fields selection:

For each data field, you can choose one from the following 38 (etrex 10 and 20) rsp. 50 (etrex 30) values.
You can configure the device to show values in english or metric units.

No	Name	Explanation
1	Accuracy of GPS	The current accuracy of your GPS determined position.
2	Ambient Pressure	The uncalibrated current pressure (etrex 30 only).
3	Ascent Average	The average vertical distance of ascents (etrex 30 only).
4	Ascent Maximum	The maximum ascent rate (etrex 30 only).
5	Ascent Total	The total distance ascended (etrex 30 only).
6	Barometer	The calibrated current pressure (etrex 30 only).
7	Battery Level	Battery charge level.
8	Bearing	The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
9	Cadence	Revolutions of the crank arm per minute (requires optional bike speed and cadence sensor) (etrex 30 only).
10	Course	The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
11	Descent Average	The average vertical distance of descents (etrex 30 only).
12	Descent Maximum	The maximum descent rate (etrex 30 only).
13	Descent Total	The total distance descended (etrex 30 only).
14	Distance to Destination	Current distance to the final destination.
15	Distance to Next	Current distance to the next waypoint or turn.
16	Elevation	Current altitude above sea level.
17	Elevation Maximum	Highest altitude above sea level since last reset (etrex 30 only).
18	Elevation Minimum	Lowest altitude above sea level since last reset (etrex 30 only).
19	ETA at Destination	Estimated arrival time at the final destination.
20	ETA at Next	Estimated arrival time at the next turn.
21	Glide Ratio	The ratio of horizontal distance travelled to vertical distance.
22	Glide Ratio to Destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
23	GPS Signal Strength	Strength of satellites' signals.
24	Heading	The direction in which you are currently moving.
25	Heart Rate	Current heart rate (heart beats per minute, requires optional heart rate monitor) (etrex 30 only).
26	Location (lat/lon)	Current location as latitude/longitude coordinates.
27	Location (selected)	Current location indicated in the selected format (datum).
28	Odometer	Total distance travelled since last reset*).
29	Off Course	The distance you are off the desired course.
30	Pointer	Arrow that indicates the direction to travel to the next point on a route.
31	Speed	Current speed.
32	Speed - Maximum	Maximum speed since last reset*).
33	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
34	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
35	Sunrise	Time of sunrise at the current position.
36	Sunset	Time of sunset at the current position.
37	Time of Day	Current time.
38	Time to Destination	Estimated travel time to the final destination.
39	Time to Next	Estimated travel time to the next waypoint (turn, crossing etc.).
40	To Course	Direction to the planned course.
41	Trip Odometer	Travelled distance since last reset*).
42	Trip Time - Moving	Time with motion since last reset*).
43	Trip Time - Stopped	Time without motion since last reset*).
44	Trip Time - Total	Total time since last reset*).
45	Turn	The direction of and the distance to the next turn on a route.
46	Velocity Made Good	The rate of closure to the destination, based upon your current speed and course.
47	Vertical Speed to Destination	Required rate of ascent or descent to reach the final destination.
48	Vertical Speed	Current ascending or descending speed.
49	Waypoint at Destination	Name of the waypoint at the final destination.
50	Waypoint at Next	Name of the next waypoint.

*) You may reset the trip-counters, the Odometer and the Maximum Speed separately.

To table of contents

Prices:

The models GARMIN etrex 10, etrex 20, etrex 20x, etrex 30 und etrex 30x have been discontinued; however, you can still order options for these model.

To table of contents

Options:

For GARMIN etrex 10, 20, 20x, 30 and 30x:
Car mounting kit, including: Mounting kit with suction cup Adhesive disk to be fixed on the dashboard Power cord for car cigarette lighter	CHF 64	[Picture and details]
Car mount with suction cup	CHF 39	[Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 20	[Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 27	[Picture and details]
Power cord for car cigarette lighter (one such power cord comes with the car navigation pack)	CHF 29	[Picture and details]
Power supply without USB cable	CHF 17	[Picture and details]
USB cable for data exchange with PC (one such USB cable comes with the etrex 10/20/20x/30/30x)	CHF 14	[Picture and details]
Outdoor-kit with case	CHF 29	[Picture and details]
Soft case	CHF 13	[Picture and details]
Case with belt clip	CHF 14	[Picture and details]
Carabiner	CHF 20	[Picture and details]
Belt clip	CHF 13	[Picture and details]
Long lanyard	CHF 7	[Picture and details]
Retractable lanyard	CHF 28	[Picture and details]
Backpack mount (tether)	CHF 30	[Picture and details]
Bike mounting kit	CHF 20	[Picture and details]
For GARMIN etrex 20, 20x, 30 and 30x: only:
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	[Picture and details]
For GARMIN etrex 30 and 30x only:
Wireless Tempe temperature sensor	CHF 44	[Picture and details]
Chirp geocaching beacon	CHF 25	[Picture and details]

All options for the GARMIN etrex 10/20/20x/30/30x in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

GARMIN etrex 10:

Owner's manual (as PDF):
- English (1.1 MB)
- French (1.1 MB)
- German (1.1 MB)
- Italian (1.1 MB)
Quick reference guide (as PDF):
- English (718 kB)
- French (682 kB)
- German (696 kB)
- Italian (683 kB)
Firmware Upgrade V3.20 (Use WebUpdater to install this version)
List of changes made with Firmware Upgrades

GARMIN etrex 20 and 30:

Owner's manual (as PDF):
- English (1.1 MB)
- French (1.1 MB)
- German (1.1 MB)
- Italian (1.1 MB)
Quick reference guide (as PDF):
- English (671 kB)
- French (699 kB)
- German (703 kB)
- Italian (697 kB)
Firmware Upgrade V4.90 (Use WebUpdater to install this version)
List of changes made with Firmware Upgrades

GARMIN etrex 20x and 30x:

Owner's manual (as PDF):
- English (1.1 MB)
- French (1.1 MB)
- German (1.1 MB)
Firmware Upgrade V3.00 (Use WebUpdater to install this version)
List of changes made with Firmware Upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for the GARMIN etrex 10/20/20x/30/30x please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
