GPS with large color display with touchscreen, auto-routing accounting traffic and vehicle profile, lane assistant, voice guidance, integrated worldwide base map, pre-installed detailed map of Europe plus USB and BlueTooth interface. Well suited for all kinds of vehicles, particularly trucks and motorhomes, but also suitable as hand held device.

The GARMIN Dezl 560 provides very fast automatic route calculation and route optimization by reordering via-points of routes with multiple intermediate destinations. It provides visual and voice guidance and the lane assistant indicates the correct path in great detail if there are multiple lanes. This GPS supports different vehicle types (automobile, truck, RV (motorhome) and pedestrian) and optimizes the calculated route based on length, width, height and weight. The Dezl 560 has a large, easy to read color display with touchscreen, an extremely sensitive antenna, an integrated world map (overview) plus a base map of Europe, Africa and the near East. It has a multi-lingual user interface and is easy to use via the touchscreen. The Dezl 560 has 7.31 GB built-in memory to store the pre-installed, detailed map of all of Europe with even more information, such as local roads, restaurants and points of interest. There are approx. 3.66 GB of unused memory to store other data such as waypoints, pictures or additional maps. This model also has a speech computer to announce the names of the roads. The package also includes a TMC receiver to incorporate traffic news.
The Dezl 560 is equipped with a BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the phones. Finally, the Dezl 560 has a slot for an optional microSD memory module to store additional detailed maps or images.

An alternate spelling is GARMIN Dēzl 560.

GPSrent: You can also rent me !

Contents: Features - Navigation - Overview - Main Pages - Price - Options - Downloads - Order

Features:

Integrated 12 channel receiver with extremely sensitive built-in GPS antenna.
User interface in 33 languages: Afrikaans (South Africa), American English, Arabic, British English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish and five Asian languages.
Voice prompting in 41 languages: Afrikaans, American English, American Spanish, Arabic, Australian English, Brazilian Portuguese, British English, Bulgarian, Canadian French, Cantonese, Catalan, Croatian, Czech, Danish, Dutch, Estonian, European French, European Portuguese, European Spanish, Finnish, Flemish, German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Luxembourgish, Mandarin (China), Mandarin (Taiwan), Norwegian, Polish, Romanian, Russian, Serbian, Slovak, Slovenian, Swedish, Taiwanese and Turkish.
Integrated world map (overview) with countries of all continents including major cities.
Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps.
7.31 GB built-in memory with pre-installed detailed map of Europe (City Navigator Europe NT) with local roads, addresses and points of interest plus slot for micro SecureDigital memory card (µSD memory cards available as options).
Routing speed: 10.39 (see GPS Routing Speed for details).
Route calculation based on vehicle type. Supports multiple vehicle profiles. Each profile includes length, width, height and weight of the vehicle. There are profiles for cars, trucks, RVs (motorhomes) and pedestrian. The Dezl calculates the route based on the profile and avoids roads which are not suitable for the vehicle with the active profile.
FM traffic news receiver included. Receives and processes traffic news messages broadcasted by radio stations. If the GPS receives a message about a traffic jam, blocked road etc. along the planned route, it can automatically compute a detour. Traffic news messages are broadcasted by many radio stations in various European countries including Austria, France, Germany, Italy and Switzerland. These messages are broadcasted for free and do not require any subscriptions. The TMC receiver works independent from the car radio and finds stations with traffic news messages automatically.
trafficTrends and myTrends. Analyses frequently traveled routes and records driving behavior. The GPS "learns" to avoid certain roads during rush hours and automatically recognizes destinations visited often.
Driving logs, records hours of operation and indicates, when it is time to take a break.
ecoRoute, provides information about fuel consumption and carbon footprint, findest the most ecological route.
ecoChallenge, provides information about fuel consumption and gives feedback about your driving habbits.
BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the mobile phones. The Dezl 560 is equipped with a built-in microphone.
Video connector for external camera.
Picture viewer, displays pictures and provides various options, such as zooming, rotation and autoplay slide show.
Suited for all kind of vehicles, but also as hand held device. Comes with power cable and mounting kit with suction cup for quick mounting and dismounting to easily remove the GPS receiver (seamless switching between cars, theft protection etc.), does not require any installation.
Large, illuminated, easy to read LCD display with automatic backlight adjustment, dimension: 111x63 mm (4.4x2.5 inches), resolution: 480x272 pixels, 65536 colors.
Easy to operate via touchscreen.
Manual or automatic switching of the display between daytime and nighttime, based on time and the current position (changes the colors of the display between sunset and sunrise for more comfortable viewing) Daytime: bright background, nighttime: dark background.
Powered by built-in battery (lasts up to 4 h) or by an external 12/24 V power source, such as car's cigarette lighter. Power cord with a plug for cigarette lighter included.
Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
Data exchange with PC via USB connector (connection cable included).
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures 0 .. 60°C (32 .. 140°F)
Dimensions: 137x83x15 mm (5.4x3.3x0.6 inches)
Weight: 190 g (6.8 ounces)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents

Information for navigation:

Automatic calculation of a route to a user selected destination including one or more optional via-points. The GPS can optimize routes with multiple via-points by reordering the via-points to the shortest possible route.
Various options to control route calculation, especially various vehicle profiles (car, truck, RV (motorhome) and pedestrian). Profiles include length, width, height and weight of the vehicle.
Automatic re-calculation of the route when leaving the planned route.
Automatic re-calculation of the route when receiving a message about a traffic jam or a blocked road along the planned route.
Guidance on the display (visual guidance) and voice guidance via the loudspeaker (acoustic guidance). Also announces road names with navigation instructions.
Lane assistant shows exactly which lane to take and when to switch lanes.
Fast route calculation and re-calculation.
Finds routes about 10 times faster than the GARMIN StreetPilot III, see GPS Routing Speed for more information.
Where am I ? Coordinates and address of the current position plus information about the closest important POIs.
trafficTrends and myTrends, the GPS "learns" which routes you prefer depending on the day of week and the time of day and which destinations you visit often. Starts routing to preferred destinations automatically without entering where to.
ecoRoute and ecoChallenge support ecological routes and a driving style with a minimized carbon footprint.
Records and shows the travelled path (track) including the elevation profile.
World map with zoom function.
Information on the map displayed in 3 levels of details.
Find waypoints, cities and exits.
Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. The Dezl 560 comes with pre-loaded detailed maps of all of Europe. Additional maps are available as options.
Stores up to 1000 waypoints with name (up to 30 characters), icon (choice of more than 80 symbols) phone number and image. Supports categories to group waypoints.
Current bearing and elevation.
Current, average and maximum speed.
Trip duration, moving time, stopped time and distance (Odometer).
Time of sunrise and sunset.
Fuel gauge with low fuel warning.
Supports metric and U.S. units.

Additional features:

Picture viewer
World clock
Calculator with basic operations
Unit converter

To table of contents

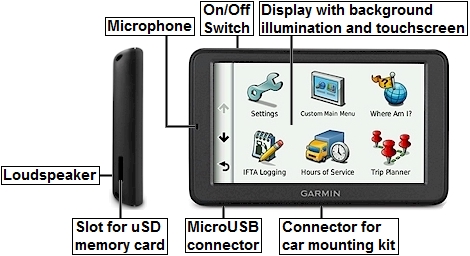

GARMIN Dezl 560 overview:

(Image not to scale)

To table of contents

Main pages of the Dezl 560:

Note: The images below show the display of the Dezl 560 in true resolution (480x272 pixels). This does not necessarily mean that the display is shown it its true size (111x63 mm). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures are just examples.

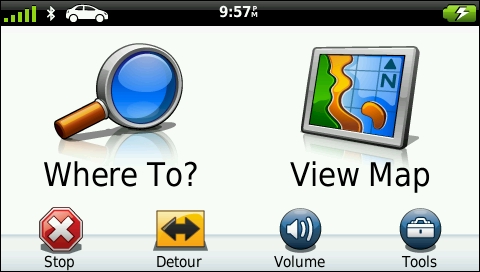

Main Menu

Status bar with GPS signal strength, Blue Tooth status, operation mode (car, truck, motorhome or pedestrian), current time and battery charge level
Search destination
View map
Stop navigation (only shown if there is an active route)
Compute a detour (only shown if there is an active route)
Adjust volume
Tools (system settings, information about current position, ecoRoute, manage routes, calculator etc., see Tools 1..2 below)

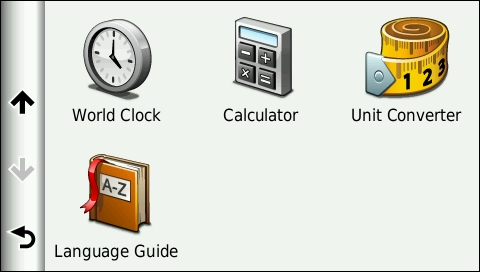

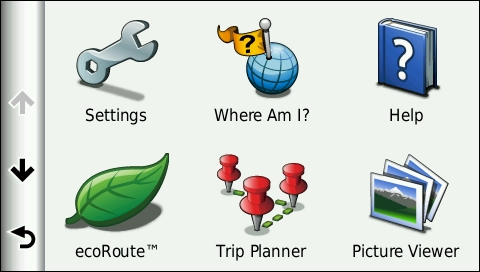

Tools (1 of 2)	Tools (2 of 2)

Settings (system, navigation, display, time, languages (text and speech), map, safety and alarms) Current position (coordinates and elevation, nearest address, nearest intersection, find nearest hospitals, police stations, gas stations and road side assistances, save current position as waypoint) Help about using your Dezl 560 Settings and information regarding fuel consumption and your carbon footprint Route management Picture viewer, displays pictures and provides various options, such as zooming, rotation etc. To the next tools page Back	World clock showing current time at different locations Calculator with four basic operations Unit converter to convert units such as distances, areas, volumes, speed, weight etc. in metric and american units. Language guide To the previous tools page Back to previous page

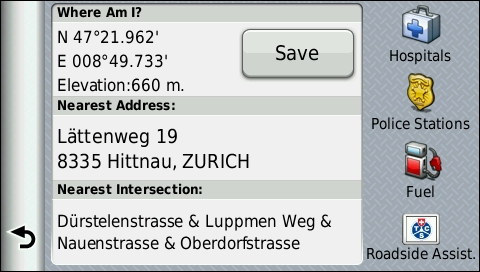

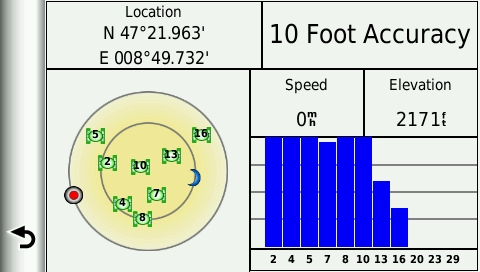

Current Position	Satellites

Current position (coordinates and elevation) Save current position as waypoint Nearest address Nearest intersection Find nearest hospitals Find nearest police stations Find nearest gas stations Find nearest road side assistances Back	Current position (coordinates) Accuracy of the current position indication Position of the satellites, the sun and the moon Current speed Current elevation above sea level Strength of the satellites signals Back

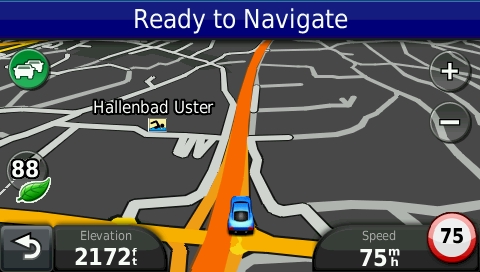

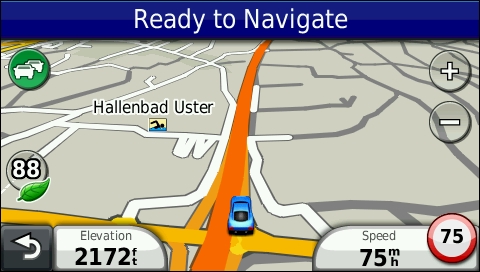

Map (day mode)	Map (night mode)

GPS status 3D-map in day mode with current position (blue car), icons for traffic messages (green), ecoRoute (leaf) and to change scale ("+" and "-") Back Current elevation¹ Current speed and current speed limit (sign with red circle) ¹) Choose one of the values from this list below to be shown here.	GPS status 3D-map in night mode with current position (blue car), icons for traffic messages (green), ecoRoute (leaf) and to change scale ("+" and "-") Back Current elevation¹ Current speed and current speed limit (sign with red circle) ¹) Choose one of the values from this list below to be shown here.

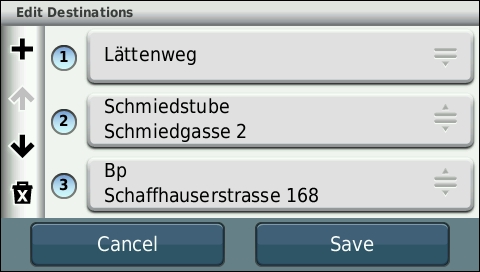

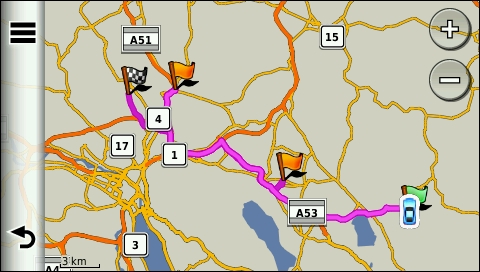

Route	Vias

Planned route (pink line) with current position (blue car), start (green flag), vias (orange flags) and final destination (black and white flag) Change scale ("+" / "-") Trip review with distance, estimated travel time and directions Back	Vias, also known as intermediate destinations (you may move or delete each via point) Insert new via point or new final destination To the next vias Remove via Cancel and discard changes Save changes

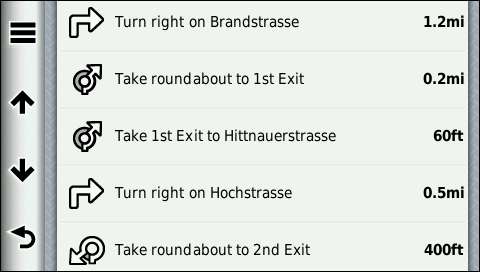

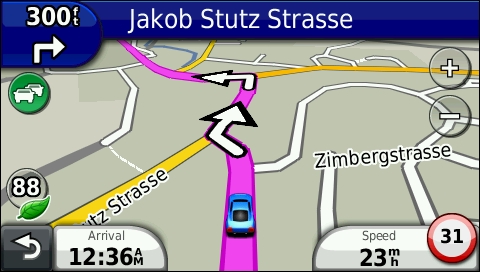

Direction	Directions

Direction with distance to next turn and type of turn Name of the road onto which you will turn Map with current position (blue car), planned route (pink line), next turns (white arrows), icons for traffic messages (green), ecoRoute (leaf) and to change scale ("+" and "-") Back Estimated arrival time at final destination¹ Current speed and current speed limit (sign with red circle) ¹) Choose one of the values from this list below to be shown here.	Type of turns, street names and distances to turns Additional functions To the previous directions To the next directions Back to previous page

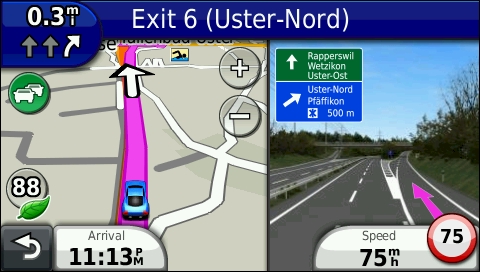

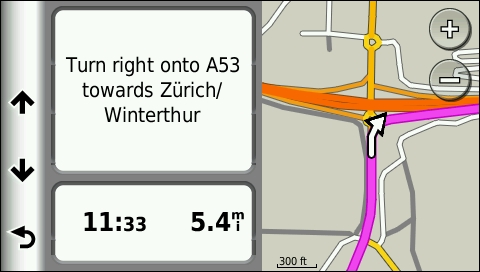

Autozoom	Lane Assistant

Highly zoomed map with detailed view of next turn (will be display automatically when approaching a turn) Change scale ("-" and "+") Direction Estimated time to next turn and distance to next turn To previous turn To next turn Back	Left side of the screen: Map with current position (blue car), planned route (pink line), next turn (white arrow), icons for traffic messages (green), ecoRoute (leaf) and to change scale ("+" and "-") Right side of the screen: Detailed view of the lanes at the next turn, the pink arrow indicates which lane you should take Back Estimated arrival time at final destination¹ Current speed and current speed limit (sign with red circle) ¹) Choose one of the values from this list below to be shown here.

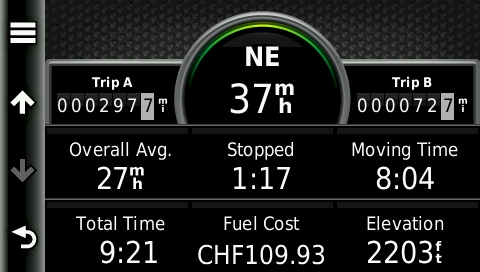

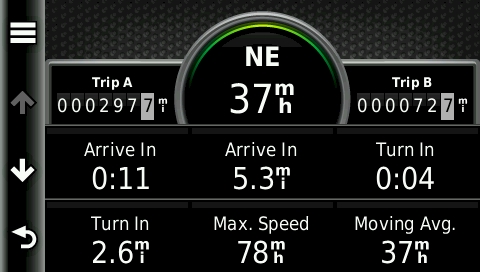

Trip Computer (1 of 2)	Trip Computer (2 of 2)

Travelled distance (Counter A) Current moving direction Current speed Travelled distance (Counter B) Estimated travel time to final destination Distance to final destination Time to next turn Distance to next turn Maximum speed Average speed without stopped time Additional functions such as reset trip data (distance, average speed, time) To next data fields Back The value with the green check mark will be shown on the map page.	Travelled distance (Counter A) Current moving direction Current speed Travelled distance (Counter B) Average speed including stopped time Time without moving (stopped time) Moving time Total time (time moving plus stopped time) Accumulated cost for fuel since last reset Current elevation Additional functions such as reset trip data (distance, average speed, time) To previous data fields Back

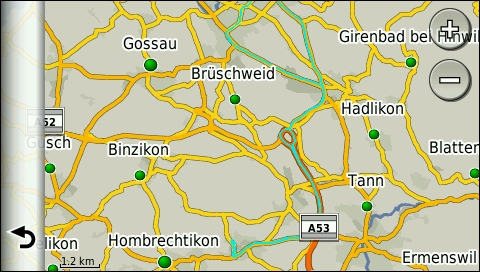

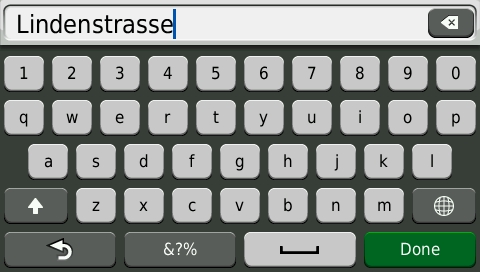

Track	Text Entry

Map with travelled path (track, blue line), you may show or hide the track on the map Change scale ("+" / "-") Back	Field for text entry Delete last character Keyboard Back Special characters Finish entry

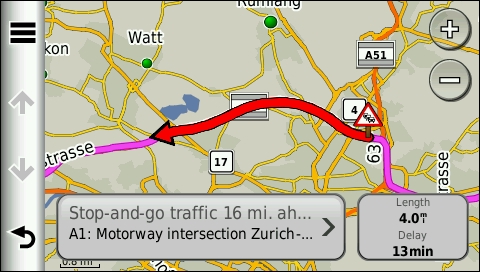

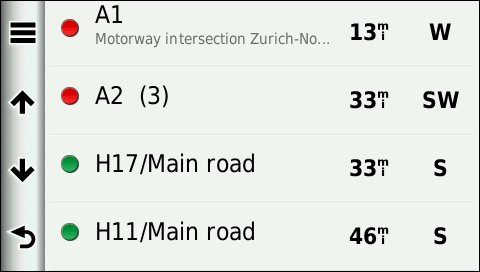

Traffic Messages	Traffic Message

Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped) Name of affected road (touch to display traffic incident on the map) Distance from current location to traffic incident Direction from current location to traffic incident Additional functions Previous traffic incidents Next traffic incidents Back	Map with traffic incident with color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped) Change scale ("-" and "+") Type of traffic incident with distance and direction from current position to incident and name of affected road Length of incident and estimated delay Additional functions Back

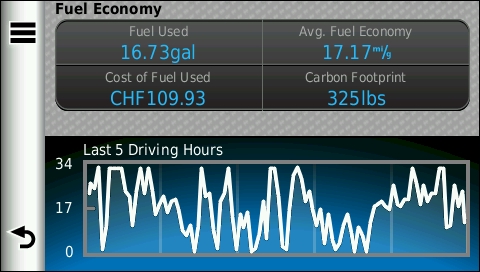

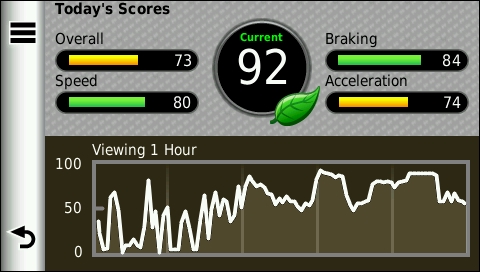

ecoChallenge	Fuel Economy

Overall eco score for your driving habit Eco score regarding your driving speed Current eco score Eco score regarding your braking habit Eco score regarding your acceleration habit Eco score during the last hour Enable/disable ecoChallenge, reset values Back	Accumulated fuel consumption Average fuel consumption Accumulated cost for fuel since last reset based on your input when pumping gas Accumulated carbon footprint Fuel consumption during the last five hours Back

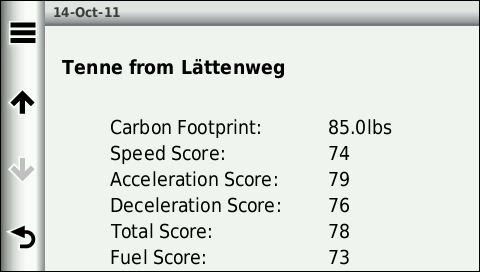

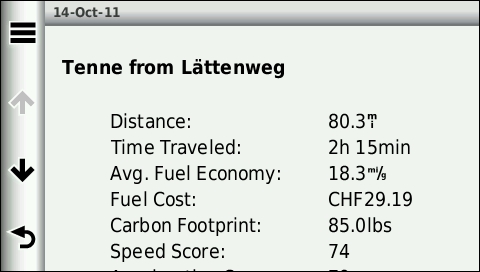

Mileage Report (1 of 2)	Mileage Report (2 of 2)

Date of the trip Destination and start of the trip Length of the trip Duration of the trip Average fuel consumption during this trip Cost for fuel for this trip Carbon footprint for this trip Eco score for your driving speed Delete trip data To the next values Back	Date of the trip Destination and start of the trip Carbon footprint for this trip Eco score for your driving speed Eco score regarding your acceleration habit Eco score regarding your braking habit Overall eco score Score for your fuel economy Delete trip data To the previous values Back
The eco scores have values in the range 0..99 and are based on the ecoRoute settings (type of fuel plus city and highway fuel economy), the measured speed, acceleration and deceleration. The fuel consumption and the carbon footprint are computed from these values and not measured.

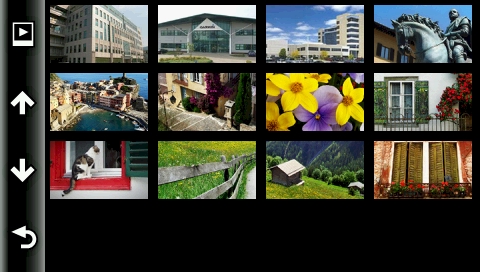

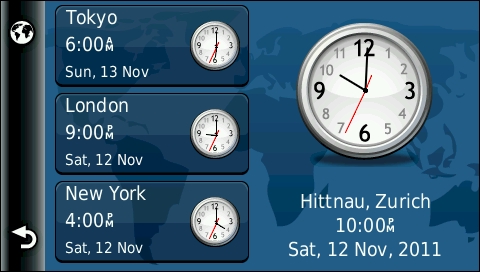

Picture Viewer	World Clock

Preview Show pictures (slide show) Previous pictures Next pictures Back	Cities with time and day of week (choose cities from list) Time and date at current position Show world map with day and night zone Back

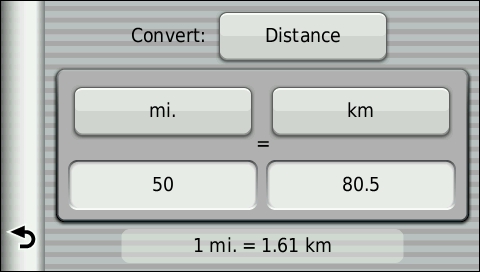

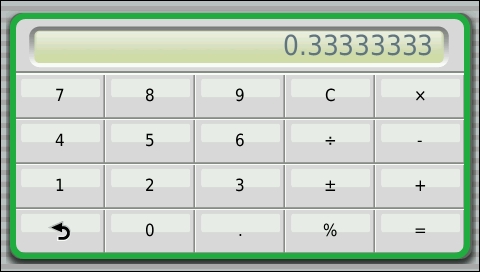

Calculator	Unit Converter

Result of the calculation Keyboard Back	Type of conversion Left input field: Unit and value Right input field: Unit and value Conversion factor Back

List of available data fields:

Arrival Time: Estimated arrival time at final destination*
Distance: Distance to final destination*
Time to Destination: Estimated travel time to final destination*
Via Arrival: Estimated arrival time at next intermediate destination*
Distance to Via: Distance to next intermediate destination*
Time to Via: Estimated travel time to next intermediate destination*
Direction of Travel: Current moving direction
Elevation: Current elevation
Time of Day: Current time
Grade: Current grade

*) Only shown if there is an active route.

To table of contents

Price:

This model has been discontinued; however, you can still order options for the Dezl 560.

To table of contents

Options:

Power supply without USB cable	CHF 17	[Picture and details]
USB cable for data exchange and power supply (One such cable comes with the Dezl 560)	CHF 14	[Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 20	[Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 27	[Picture and details]
Portable friction mount (new design; does not include unit mount)	CHF 35	[Picture and details]
Case	CHF 30	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	[Picture and details]

All options for the GARMIN Dezl 560 in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates for the GARMIN Dezl 560:

Quick start manual as PDF
- English (740 kB)
- French (639 kB)
- German (642 kB)
- Italian (631 kB)
Owner's manual as PDF
- English (1.5 MB)
- French (1.5 MB)
- German (1.5 MB)
- Italian (1.5 MB)
Firmware Upgrade V3.90 (Use WebUpdater to install this version)
List of changes made with firmware upgrades
