TRAMsoft GmbH - GARMIN Camper 660LMT-D (English)

GPS with large color display with touchscreen, auto-routing accounting traffic and vehicle profile, lane assistant, voice guidance and voice commands, integrated worldwide base map, pre-installed detailed map of Europe plus USB and BlueTooth interface. Well suited for all kinds of vehicles, particularly campers and motorhomes. Comprehensive list of campgrounds and RV parks with filter option to find suitable destinations easily. Supports wireless backup camera.

The GARMIN Camper 660 provides very fast automatic route calculation and route optimization by reordering via-points of routes with multiple intermediate destinations. It provides visual and voice guidance and the lane assistant indicates the correct path in great detail if there are multiple lanes. This GPS supports different vehicle profiles and optimizes the calculated route based on length, width, height and weight. The Camper 660 has a large, easy to read 6" color display with touchscreen, an extremely sensitive antenna, an integrated world map (overview) plus a base map of Europe, Africa and the near East. It has a multi-lingual user interface and is easy to use either via the touchscreen or by simply speaking voice commands.

The Camper 660 has 14.2 GB built-in memory to store the pre-installed, detailed map of all of Europe with even more information, such as local roads, restaurants and points of interest. It supports searching addresses and points of interest. There is a comprehensive list of ACSI campgrounds and RV parks (Auto Camper Service International). It provides a filter function to find campgrounds and RV parks with particular features such as a pool, grocery store etc. The GPS shows changes of the speed limit in advance in order to support an economical driving style. Lifetime update for the map is included.

There are approx. 6.06 GB of unused memory to store other data such as waypoints, pictures or additional maps. This model has a speech computer to announce the names of the roads. The package also includes a TMC receiver to incorporate traffic news. The Camper 660 is equipped with a BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the phones. Additionally, the Camper 660 has a slot for an optional microSD memory module to store additional detailed maps or other data such as photos. The Camper 660 supports displaying video from a wireless backup camera.

The model GARMIN Camper 660LMT-D is also known as RV 660LMT.

Contents: Features - Navigation - Overview - Main Pages - Price - Options - Downloads - Order

Features:

Integrated 12 channel receiver with extremely sensitive built-in GPS antenna.
User interface in 36 languages: Afrikaans (South Africa), American English, Brasilian Portuguese, British English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish and seven Asian languages.
Voice prompting in 27 languages: British English, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, European French, European Spanish, Finnish, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Luxembourgish, Norwegian, Polish, Portuguese, Romanian, Serbian, Slovak, Slovenian, Swedish and Turkish.
Easy to operate using the touchscreen or by voice commands (speech recognition).
Integrated world map (overview) with countries of all continents including major cities.
Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps.
14.2 GB built-in memory with pre-installed detailed map of Europe (City Navigator Europe NT) with local roads, addresses and points of interest which occupies approx. 8.14 GB plus slot for micro SecureDigital memory card (µSD memory cards available as options).
Comprehensive list of campgrounds and RV parks. Filter function to search campgrounds and RV parks with particular features.
Lifetime-Update for the map of Europe included. Allows to update the map on the computer and on the GPS device. Updates are usually released on a quarterly basis.
Routing speed: 6.33 (see GPS Routing Speed for details).
Route calculation based on vehicle profile. Supports multiple vehicle profiles. Each profile includes length, width, height and weight of the vehicle. The Camper calculates the route based on the profile and avoids roads which are not suitable for the vehicle of the active profile.
FM traffic news receiver included. Receives and processes traffic news messages broadcasted by radio stations. If the GPS receives a message about a traffic jam, blocked road etc. along the planned route, it can automatically compute a detour. Traffic news messages are broadcasted by many radio stations in various European countries including Austria, France, Germany, Italy and Switzerland. These messages are broadcasted for free and do not require any subscriptions. The TMC receiver works independent from the car radio and finds stations with traffic news messages automatically.
trafficTrends and myTrends. Analyses frequently traveled routes and records driving behavior. The GPS "learns" to avoid certain roads during rush hours and automatically recognizes destinations visited often.
BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the mobile phones. The Camper 660 is equipped with a built-in microphone.
Supports wireless backup camera, included in the pack but also available as an option.
Picture viewer, displays pictures and provides various options, such as zooming, rotation and autoplay slide show.
Suited for all kind of vehicles, but also as hand held device. Comes with power cable and mounting kit with suction cup for quick mounting and dismounting to easily remove the GPS receiver (seamless switching between cars, theft protection etc.), does not require any installation.
Large, illuminated, easy to read LCD display with automatic backlight adjustment, dimension: 136x72 mm (5.4x2.8 inches), resolution: 800x480 pixels, 65536 colors.
Manual or automatic switching of the display between daytime and nighttime, based on time and the current position (changes the colors of the display between sunset and sunrise for more comfortable viewing) Daytime: bright background, nighttime: dark background.
Powered by built-in battery (lasts up to 1 h) or by an external 12/24 V power source, such as car's cigarette lighter. Power cord with a plug for cigarette lighter included.
Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
Data exchange with PC via USB connector (connection cable included).
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures 0 .. 60°C (32 .. 140°F)
Dimensions: 168x94x19 mm (6.6x3.7x0.76 inches)
Weight: 270 g (9.5 ounces)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents

Information for navigation:

Automatic calculation of a route to a user selected destination including one or more optional via-points. The GPS can optimize routes with multiple via-points by reordering the via-points to the shortest possible route.
Various options to control route calculation, especially various vehicle profiles including length, width, height and weight of the vehicle.
Automatic re-calculation of the route when leaving the planned route.
Automatic re-calculation of the route when receiving a message about a traffic jam or a blocked road along the planned route.
Guidance on the display (visual guidance) and voice guidance via the loudspeaker (acoustic guidance). Also announces road names with navigation instructions.
Lane assistant shows exactly which lane to take and when to switch lanes.
Fast route calculation and re-calculation.
Finds routes more 9 times faster than the GARMIN StreetPilot III, see GPS Routing Speed for more information.
Where am I ? Coordinates and address of the current position plus information about the closest important POIs.
trafficTrends and myTrends, the GPS "learns" which routes you prefer depending on the day of week and the time of day and which destinations you visit often. Starts routing to preferred destinations automatically without entering where to.
Records and shows the travelled path (track) including the elevation profile.
World map with zoom function.
Information on the map displayed in 3 levels of details.
Find waypoints, cities and exits.
Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. The Camper 660 comes with pre-loaded detailed maps of all of Europe. Additional maps are available as options.
Search for RV parks and campgrounds. Large list from the directory of the Auto Camper Service International (ACSI).
Stores up to 1000 waypoints with name (up to 30 characters), icon (choice of 46 symbols) and phone number. Supports categories to group waypoints.
Current bearing and elevation.
Current, average and maximum speed.
Trip duration, moving time, stopped time and distance (Odometer).
Time of sunrise and sunset.
Supports metric and U.S. units.

To table of contents

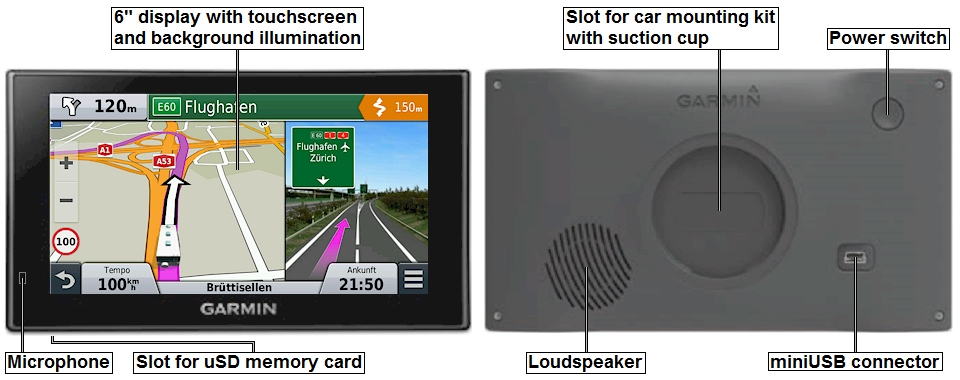

GARMIN Camper 660 overview:

(Image not to scale)

To table of contents

Main pages of the Camper 660:

Note: The image below shows the display of the Camper 660 in true resolution (800x480 pixels). This does not necessarily mean that the display is shown it its true size (136x72 mm). The actual size of the images depends on the properties of your display. All following images have been reduced to improve the appearance of this document. Many of the pages are configurable, these pictures are just examples.

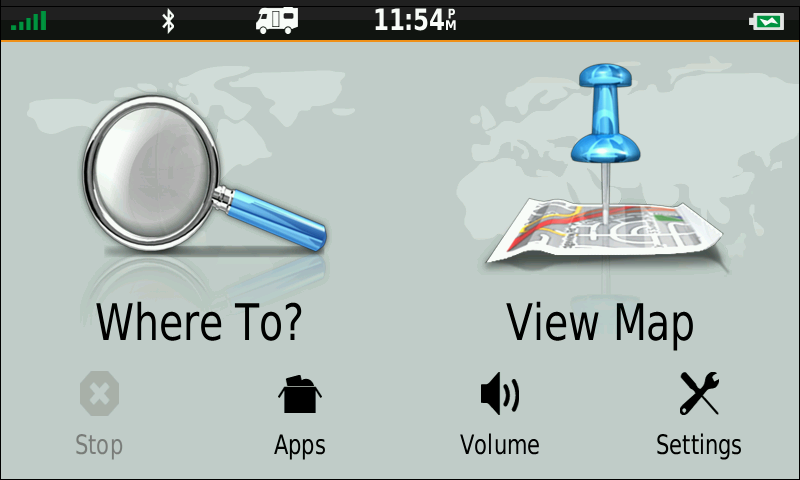

Main Menu

Status bar with GPS signal strength, Blue Tooth status, operation mode, current time and battery charge level
Search destination
View map
Stop navigation (only available if there is an active route)
Applications
Adjust volume
Settings (system settings, information about current position, manage routes, etc., see Settings 1..3 below)

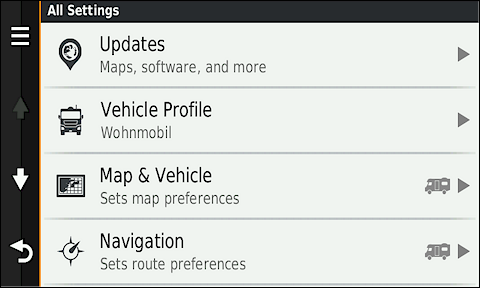

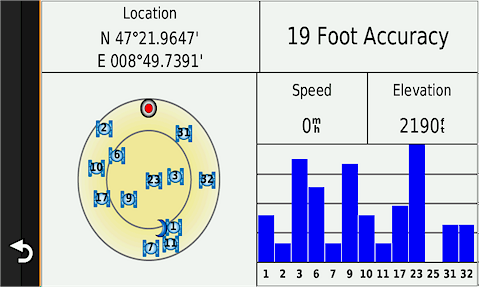

Satellites	Settings (1 of 3)

Coordinates of the current location Accuracy of the current position indication Position of the satellites, the sun and the moon Current speed Current elevation above sea level Strength of the satellites signals To main menu	Updates: Update maps, firmware and software of optional devices such as traffic receiver or backup camera RV Profiles: Length, width, height, gross weight etc. Map settings: Design, level of details, map layers, car icon etc. Navigation settings: Routing preferences, avoidances, GPS simulator etc. Reset To the next settings page To main menu

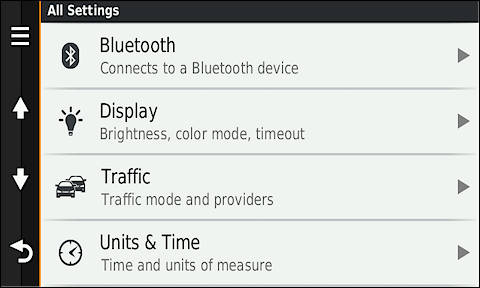

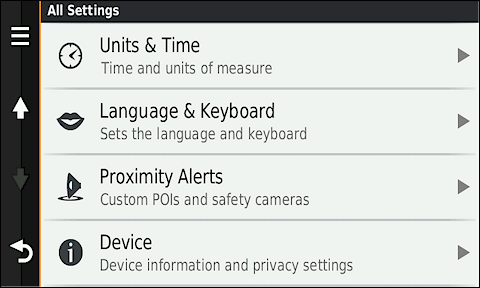

Settings (2 of 3)	Settings (3 of 3)

Bluetooth settings Display settings: Color mode, background illumination etc. Traffic settings Units, time format, position format etc. Reset To the previous settings page To the next settings page To main menu	Units, time format, position format etc. Voice language, text language and keyboard settings Proximity alerts settings Device information including current firmware version and unit ID Reset To the previous settings page To main menu

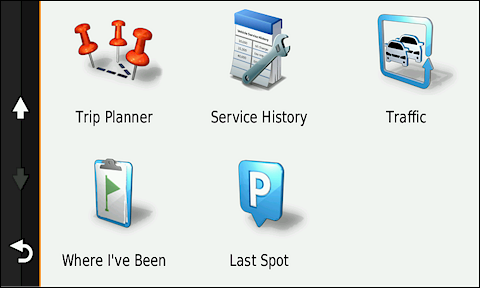

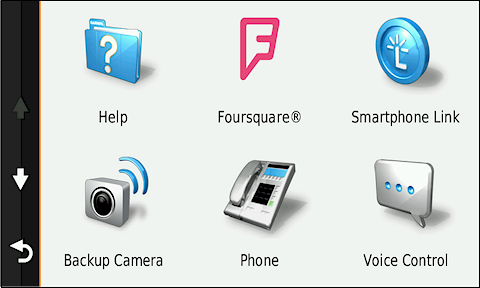

Applications (1 of 2)	Applications (2 of 2)

Help - Description of the device's features Foursquare - Search for points of interest (POIs) listed in Foursquare, see www.foursquare.com Smartphone Link - Access to online services via smartphone using Bluetooth Settings of the backup camera Telephone functions Manage voice commands To the next applications page To main menu	Manage routes Maintain service history Traffic news (congestions, closed roads) Where have I been? - Manage tracks Save the current position when the device is turned off to locate your parked car To the previous applications page To main menu

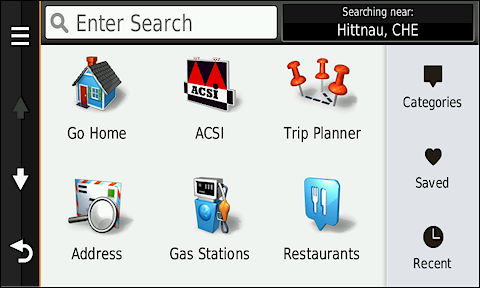

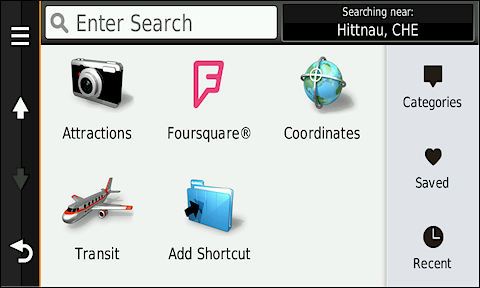

Where to? (1 of 2)	Where to? (2 of 2)

Text search Search near Go Home - Calculate route to a preset address ACSI - Search for campgrounds in the Auto Camper Service International directory, supports filters Navigate along a preset route Search for an address (country, city, street and number) Search for gas stations Search for restaurants Search options To the next where to? page To main menu	Text search Search near Search for attractions Search for points of interest (POIs) listed in Foursquare Search by coordinates Search for transportation (railway stations, airports etc.) Place holder to add another search category General search for points of interest (POIs) Search for saved locations (waypoints) List of recently searched items Search options To the previous where to? page To main menu

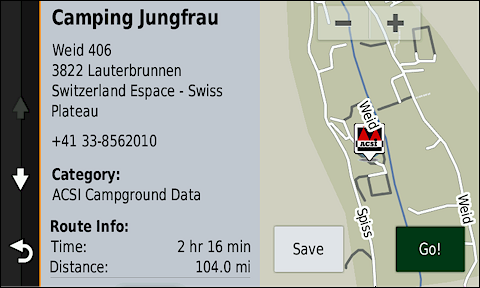

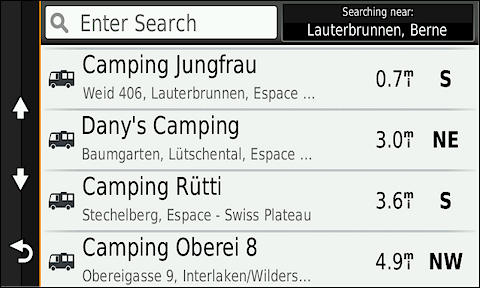

ACSI Campgrounds	ACSI Campground Description (1 of 3)

Text search Search near List of campgrounds which fullfil the search criteria with name, address, distance and direction from the current position (touch for details) Scroll up and down Back Note: The filter feature is exclusively available for the ACSI directory	Name of the campground Adress and phone number Estimated driving time and distance from the current location Map Save as waypoint (favorite) Start navigation to this campground Scroll down Back

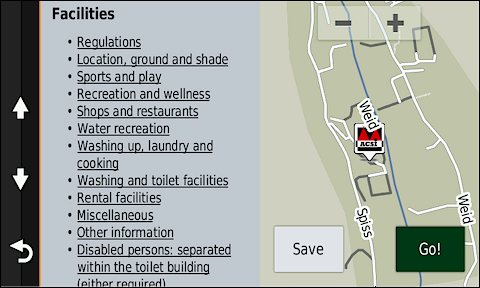

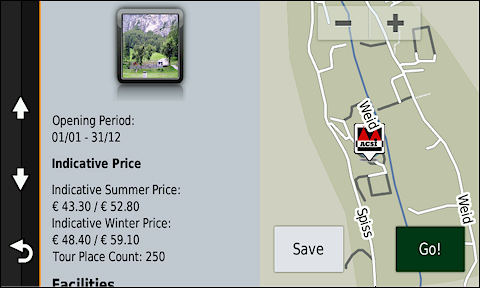

ACSI Campground Description (2 of 3)	ACSI Campground Description (3 of 3)

Picture of the campground (touch to enlarge) Opening period Indicative price Number of sites Map Save as waypoint (favorite) Start navigation to this campground Scroll up Scroll down Back	Detailed description of the facilities Map Save as waypoint (favorite) Start navigation to this campground Scroll up Scroll down Back

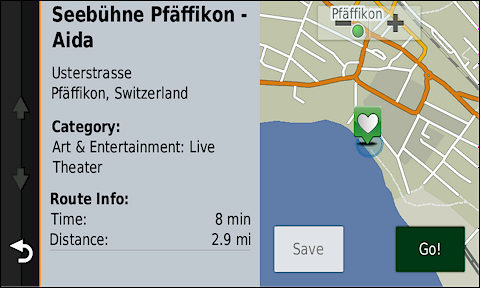

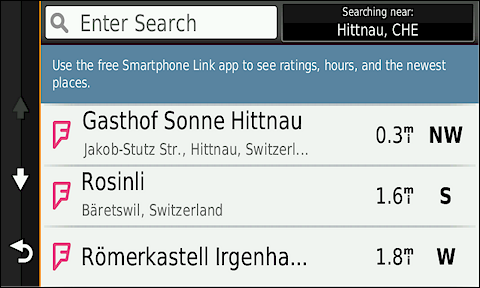

Foursquare POIs	Foursquare POI Details

Text search Search near Description of the points of interest (POIs) with name, address, distance and direction from the current position (touch for details) To the next items Back	Detailed description of the point of interest (POI) Map Save as waypoint (favorite) Start navigation to this POI Back

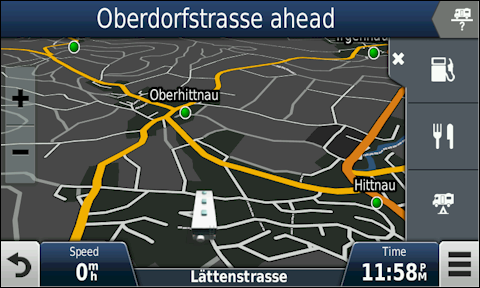

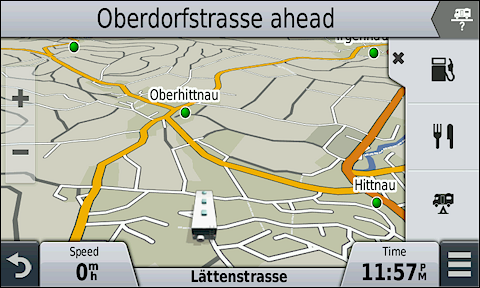

Map (day mode)	Map (night mode)

GPS status 3D-map in day mode with current position (white motorhome) and soft keys to change scale ("+" and "-") Closest gas station, closest restaurant, closes campground (choose up to three categories to show the closest object) Back Current speed (touch for trip computer) Current time¹ (touch to choose other value) Other functions: Stop navigation, points of interest along the route, volume, traffic information etc. ¹) Choose one of the values from this list below to be shown here.	GPS status 3D-map in night mode with current position (white motorhome) and soft keys to change scale ("+" and "-") Closest gas station, closest restaurant, closes campground (choose up to three categories to show the closest object) Back Current speed (touch for trip computer) Current time¹ (touch to choose other value) Other functions: Stop navigation, points of interest along the route, volume, traffic information etc. ¹) Choose one of the values from this list below to be shown here.

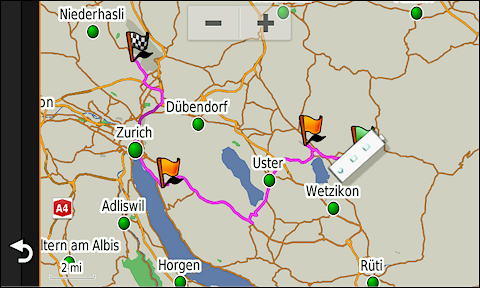

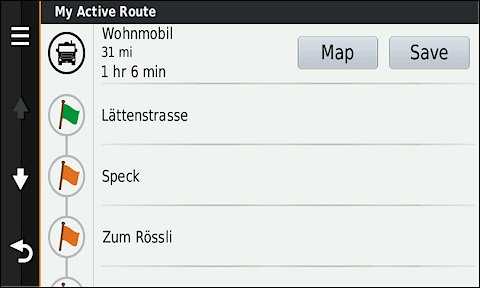

Route	Active Route

Planned route (pink line) with current position (white motorohome), vias (orange flags) and final destination (black and white flag) Change scale ("+" / "-") Back	Active route with type of vehicle, distance and estimated driving time. Show route on the map and save route. Start and Vias Additional functions To the next vias Back

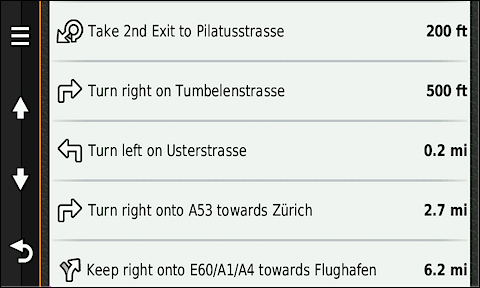

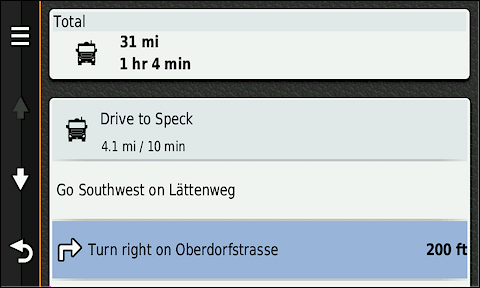

Directions (1 of 2)	Directions (2 of 2)

Type of vehicle, distance and estimated driving time Final destination or next via point with distance and estimated driving time Directions with type of turn, street name and distance to turn Additional functions To the next directions Back to previous page	Type of turns, street names and distances to turns Additional functions To the previous directions To the next directions Back to previous page

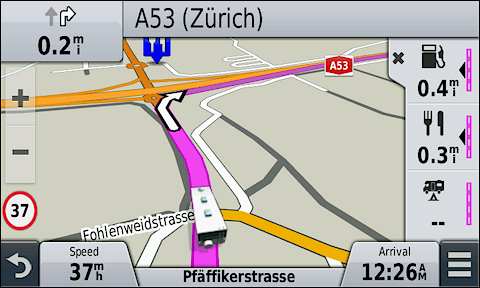

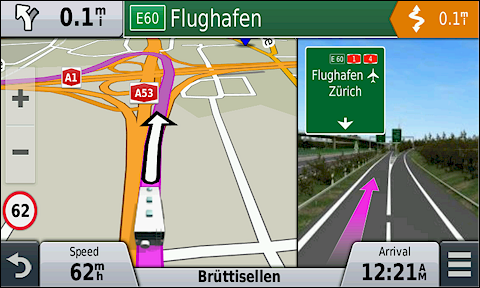

Direction	Lane Assistant

Direction with type of and distance to next turn Name of the road on which you turn to at the next turn Map with current position (white motorhome), planned route (pink line), next turn (white arrow), points of interest (POIs), current speed limit and soft keys to change scale ("+" and "-") Closest gas station, closest restaurant, closes campground (choose up to three categories to show the closest object) Back Current speed Name of the road you are currently driving on Estimated arrival time at final destination¹ Other functions: Stop navigation, points of interest along the route, volume, traffic information etc. ¹) Choose one of the values from this list below to be shown here.	Direction with type of and distance to next turn Name of the road on which you turn to at the next turn Warning about sharp turn Map with current position (white motorhome), planned route (pink line), next turn (white arrow), current speed limit and soft keys to change scale ("+" and "-") Photo-realistic road layout with lane to choose Back Current speed Name of the road you are currently driving on Estimated arrival time at final destination¹ Other functions: Stop navigation, points of interest along the route, volume, traffic information etc. ¹) Choose one of the values from this list below to be shown here.

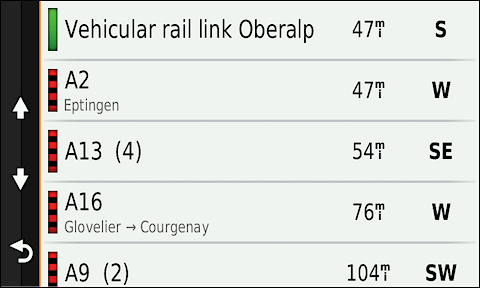

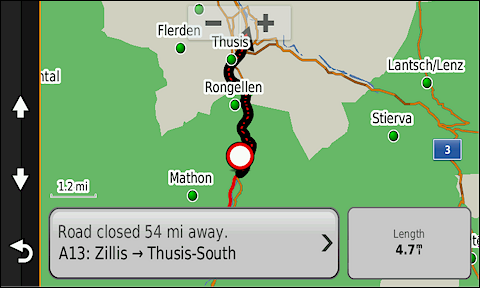

Traffic Messages	Traffic Message

Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped) Name of affected road (touch to display traffic incident on the map) Distance from current location to traffic incident Direction from current location to traffic incident Previous traffic incidents Next traffic incidents Back	Map with traffic incident with color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped) Change scale ("-" and "+") Type of traffic incident with distance and direction from current position to incident and name of affected road Length of incident and estimated delay Previous traffic incident Next traffic incident Back

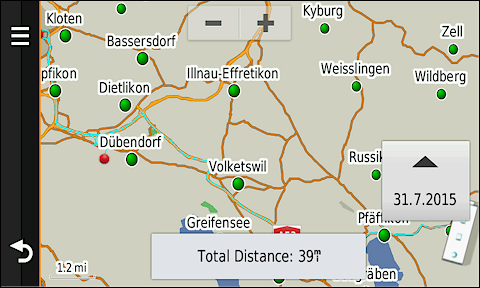

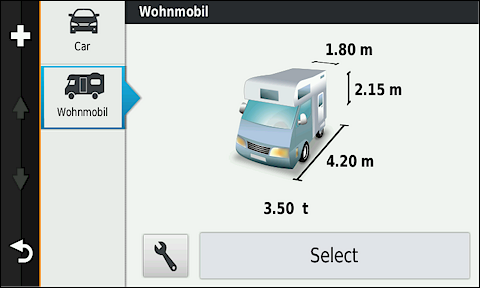

Track	Vehile Profiles

Map with travelled path (track, blue line) Change scale ("+" / "-") List of saved tracks ordered by date Total distance of this track Clear travel history Back	List of vehicle profiles Dimensions and weight of the vehicle Modify profile Select profile Add new profile Back

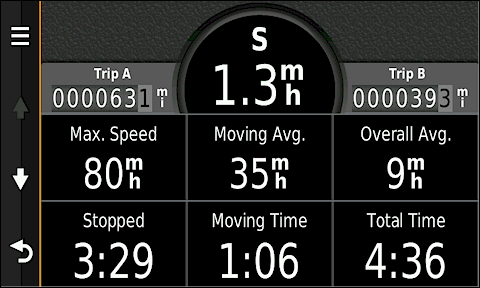

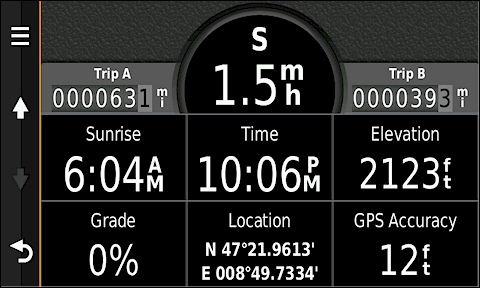

Trip Computer (1 of 2)	Trip Computer (2 of 2)

Travelled distance (Counter A) Current moving direction Current speed Travelled distance (Counter B) Maximum speed since last reset Average speed without stopped time Average speed including stopped time Time without moving (stopped time) Moving time Total time (time moving plus stopped time) Additional functions such as reset trip data (distance, average speed, time) To next data fields Back	Travelled distance (Counter A) Current moving direction Current speed Travelled distance (Counter B) Time of sunrise or sunset at the current location Current time Current elevation above sea level Current grade, computed from elevation change over distance Coordinates of the current position Accuracy of the position indication Additional functions such as reset trip data (distance, average speed, time) To previous data fields Back

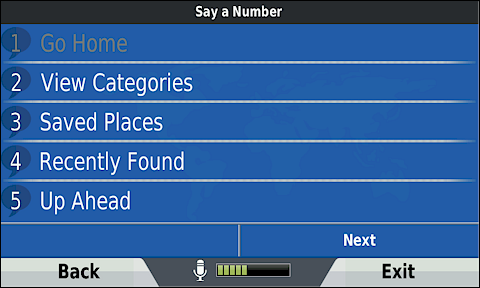

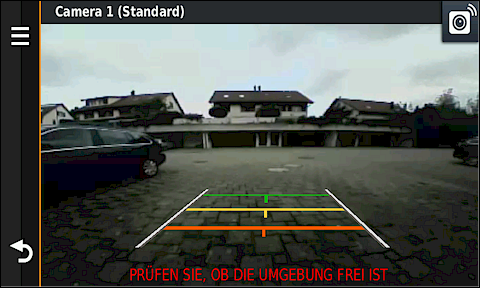

Voice Control	Backup Camera

Voice control - list of options Back Exit	Live image of the backup camera with adjustable guiding lines Show/hide, adjust, reset guiding lines Back Requires backup camera BC30.

List of available data fields:

Arrival Time: Estimated arrival time at final destination*
Arrive in: Estimated travel time to final destination*
Destination Distance: Distance to final destination*
Via Point Arrival Time: Estimated arrival time at next intermediate destination*
Time to Via Point: Estimated travel time to next intermediate destination*
Via Point Distance: Distance to next intermediate destination*
Direction: Current moving direction
Time of Day: Current time
Elevation: Current elevation
Grade: Current grade computed from elevation change over distance (only shown while moving)

*) Only shown if there is an active route.

To table of contents

Price:

This model has been discontinued; however, you can still order options for the Camper 660.

To table of contents

Options:

Power cord for car cigarette lighter	CHF 29	[Picture and details]
Power supply without USB cable	CHF 17	[Picture and details]
USB cable for data exchange and power supply (One such cable comes with the Camper 660)	CHF 14	[Picture and details]
Mounting kit with suction cup including mounting bracket (One such mounting kit comes with the Camper 660)	CHF 29	[Picture and details]
Mounting kit with suction cup (Does not include mounting bracket)	CHF 20	[Picture and details]
Dashboard discs	CHF 23	[Picture and details]
Portable friction mount (new design; does not include mounting bracket)	CHF 35	[Picture and details]
Case	CHF 20	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	[Picture and details]
32.0 GB micro SDHC memory card including µSD to SD adapter	CHF 21	[Picture and details]

All options for the GARMIN Camper 660 in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates for the GARMIN Camper 660:

Owner's manual as PDF
- English (2.9 MB)
- French (1.8 MB)
- German (1.8 MB)
- Italian (1.8 MB)
Firmware Upgrade V4.10 (Use WebUpdater to install this version)
List of changes made with firmware upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for the GARMIN Camper 660 please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
