GARMIN StreetPilot 2610 / 2620 / 2720 |
GPS receiver with fast auto-routing, voice guidance, large color display with touchscreen, infrared remote control, integrated world and Europe/Africa map plus USB interface. Well suited for all kinds of vehicles.
The GARMIN StreetPilot 2610/2620/2720 provides fast automatic route calculation, visual and voice guidance, is easy to use via local controls or infrared remote control, has a large, easy to read color display with touch screen, an extremely sensitive antenna, an integrated world map (overview) plus a base map of Europe, Africa and the near East. The StreetPilot 2610 has a slot for a standard CompactFlash (CF) memory module to store more
detailed information, such as local roads, restaurants and points of interest. The StreetPilot 2620 and 2720 come with approx. 2 GB of built-in memory and pre-loaded maps of all of Europe. The model 2720 is equipped with additional 512 MB of memory to store additional maps, a speech computer to announce road names and with a connector for an optional TMC receiver to accept traffic news. The StreetPilot 2610/2620/2720 provides navigation information outdoors, in a car, in a train or even
in an airplane (see MapSource examples).
Differences between StreetPilot 2610, 2620 and 2720:
All three devices provide basically the same functions and have nearly the same features. The main differences relate to memory and what is pre-loaded:
| Feature / Model |
StreetPilot 2610 |
StreetPilot 2620 |
StreetPilot 2720 |
| Storage |
CompactFlash memory card (256 MB CF memory card included) |
Built-in disk drive (approx. 2 GB) |
Built-in disk drive (approx. 2 GB) plus 512 MB memory for additional maps |
| Pre-installed detailed maps |
All of Switzerland, all of Austria, southern German, northern Italy and southern France |
All of Europe |
All of Europe |
| Display |
305x160 pixels, 256 colors |
305x160 pixels, 256 colors |
454x240 pixels, 256 colors (WQVGA) |
| Speech computer to announce road names |
- |
- |
YES |
| Connector for optional TMC receiver to accept traffic news |
- |
- |
YES |
Contents: Features - Navigation - Prices - Options - Overview - Main Pages - Downloads - Order

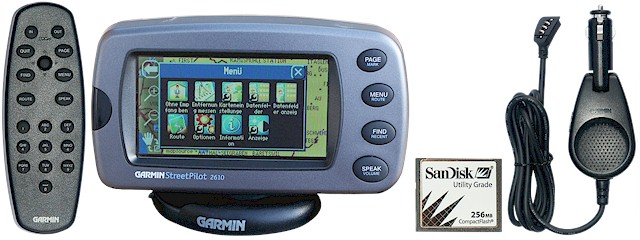

![[ GARMIN StreetPilot 2610/2620 with infrared remote control, 256 MB CF memory card and power cord with loudspeaker ]](garmin_streetpilot-2610.jpg)
(Click on the image for an enlargement)
- Integrated 12 channel receiver with very sensitive built-in antenna, connector for external GPS antenna (external antenna available as an option).
- User interface in 15 languages (Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Norwegian, Polish, Portuguese, Spanish and Swedish).
- Voice prompting in 19 languages (Croatian, Czech, Danish, Dutch, English (UK and US), Finnish, Flemish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Slovenian, Spanish and Swedish).
- Integrated world map (overview) with countries of all continents including major cities.
- Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps. Navigational information are available for the following countries: country list.
- Memory to download additional, even more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC:
- Model 2610: Slot for standard CompactFlash (CF) memory module type I and II
(one 256 MB CF memory module is included in the standard package. Additional modules are available as an option)
- Model 2620: 2 GB of built-in memory, all detailed maps of Europe pre-loaded and unlocked
- Model 2720: 2 GB of built-in memory, all detailed maps of Europe pre-loaded and unlocked plus 512 MB memory for additional maps
- Routing speed: 11.27 (see GPS Routing Speed for details).
- Model 2720 only: Supports optional TMC receiver which can be connected via the USB connector. Processes traffic news messages and re-calculates the current route if there is a traffic jam or blocked road ahead.
- Suited to be used in any kind of vehicles. Comes with power cable with speaker, dash mount kit with adhesive folie and a removable base with shutter for quick mounting and dismounting to easily remove the GPS receiver (seamless switching between cars, theft protection etc.), does not require any installation.
- Large, illuminated, easy to read LCD display with automatic backlight adjustment:
- Model 2610 and 2620: Dimension: 86x45 mm, resolution: 305x160 pixels, 256 colors.
- Model 2720: Dimension: 86x45 mm, resolution: 454x240 pixels, 65536 colors (WQVGA).
- Manual or automatic switching of the display between daytime and nighttime, based on time and the current position (changes the colors of the display between sunset and sunrise for more comfortable viewing) Daytime: bright background, nighttime: dark background.
- Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (conforms to IPX7).
- Powered by an external 12/24 V power source, e.g. from a car's lighter (power cord included). 2 batteries type AA for infrared remote control.
- Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available).
- Supports the following protocols for data exchange with PC: NMEA 0183 with 4800 Baud, GARMIN, GARMIN DGPS, NMEA 0183 V2.30, Text out, RTCM IN, RTCM/NMEA and RTCM/TEXT
- DGPS (Differential GPS) ready (GARMIN differential receiver available as an option)
- Memory gauge
- Firmware stored in Flash-Memory, can be updated by the user
- Operating temperatures -15 .. 70°C (5° .. 158°F)
- USB V1.1 interface (connection cable included)
- Dimensions: 143x80x50 mm (5.6x3.2x2.0 inches)
- Weight: 420 g (0.93 pounds)
¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.
To table of contents
- Automatic computing of a route to a user selected destination including up to 100 via-points.
Various options to control route computation.
- Automatic re-calculation of the route when leaving the planned route.
- Automatic re-calculation of the route when receiving a message about a traffic jam or a closed road along the planned route (StreetPilot 2720 only, requires TMC receiver which is available as an option)
- Guidance on the display (visual guidance) and voice guidance via the loudspeaker (acoustic guidance)
Loudspeaker included. The StreetPilot 2720 also announces road names with navigation instructions.
- Fast route calculation and re-calculation.
Finds routes more than 10 times faster than the GARMIN StreetPilot III, see GPS Routing Speed for more information.
- Information about the position of the GPS satellites and about the quality of the signals
- World map with zoom function in the range of 1200 km to 30 m (800 mi to 120 ft)
- Information on the map displayed in 5 levels of details
- Distance measuring (direct distance)
- Find waypoints, cities and exits
- Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. A CDrom with maps of Europe, a memory module and an unlock code for these maps are included. If you buy additional maps, you have to request an unlock code from GARMIN via Internet. A Windows PC is required to transfer maps to the GPS device.
- Stores up to 500 waypoints (StreetPilot 26xx), rsp. 2000 waypoints (StreetPilot 2720) with name (up to 10 characters), icon (choice of more than 40 symbols), coordinates and altitude.
- Stores up to 50 routes.
- Current position (longitude, latitude, altitude)
- Current accuracy of the position information
- Current time and date
- Current bearing
- Current, average and maximum speed
- Trip duration and distance (Odometer)
- Records the travelled route (track), can be turned off. Stores up to 2'000 track log points.
- Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon
- Supports metric and U.S. units
To table of contents
- GARMIN StreetPilot 2610 / 2620 / 2720: These models have been discontinued; however, you can still order options for the StreetPilot 2610 / 2620 / 2720.
To table of contents
For StreetPilot 2610 only:
For StreetPilot 2720 only:
For StreetPilot 2610, 2620 and 2720:
All options for the GARMIN StreetPilot 2610/2620/2720 in detail.
MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange)

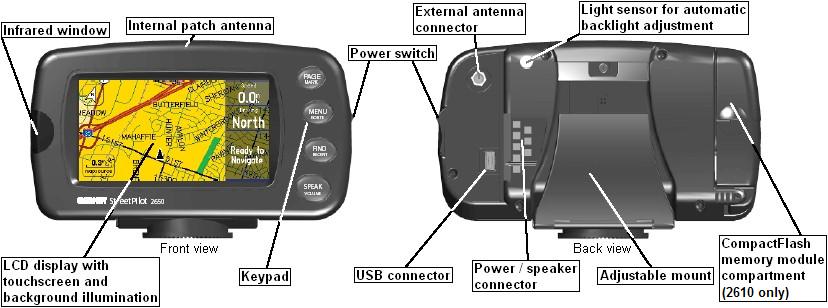

![[ Overview of the GARMIN StreetPilot 2610/2620/2720 ]](garmin_streetpilot-2610_overview_en.jpg)
To table of contents

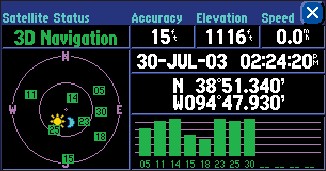

| Satellites |
|

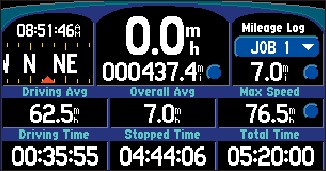

Trip Computer |
![[ GARMIN StreetPilot 2610/2620 satellites info ]](garmin_streetpilot-2610_satellites.jpg) |
![[ GARMIN StreetPilot 2610/2620 trip computer ]](garmin_streetpilot-2610_trip-computer.jpg) |
- Status
- Accuracy of the current position
- Current elevation
- Current speed
- Current position of the satellites in the sky
- Date and time
- Current position (WGS84)
- Signal strength for each satellite
|
- Current direction
- Current speed
- Odometer
- Trip odometer (4 separate counters)
- Average driving speed (while in motion only)
- Average driving speed (including time stopped)
- Maximum speed
- Time while in motion
- Time stopped
- Total time since last reset
|
|

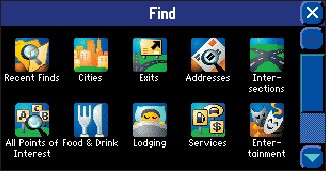

| Find |
|

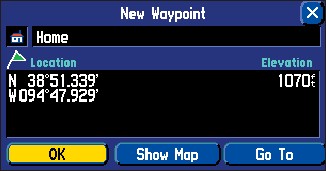

Waypoint |
![[ GARMIN StreetPilot 2610/2620 find ]](garmin_streetpilot-2610_find.jpg) |
![[ GARMIN StreetPoint 2610/2620 waypoint ]](garmin_streetpilot-2610_waypoint.jpg) |
Search for
- Recent finds
- Cities
- Exists
- Addresses
- Intersections
- Points of interest (food, lodging, services, entertainment, attractions, shopping, transportation, emergency and governmental buildings)
- Your own waypoints
|
- Symbol of the waypoint (will be shown on the map), there are more than 40 different symbols available
- Name of the waypoint (up to 10 characters)
- Coordinates of the waypoint
- Elevation
- Functions: Save waypoint; Show on map; Compute route to that waypoint
|
|
| Map |
|

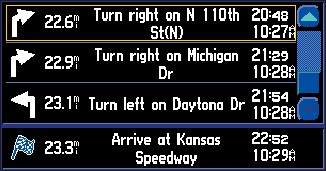

Route |
![[ GARMIN StreetPilot 2610/2620 map ]](garmin_streetpilot-2610_map.jpg) |
![[ GARMIN StreetPilot 2610/2620 route ]](garmin_streetpilot-2610_route.jpg) |

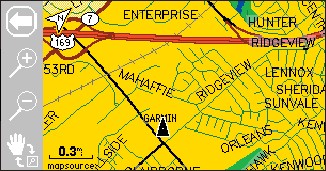

- Map
- Current scale
- Current location (black triangle)
- Touchscreen operations (zoom)
|
- Turns with description, distance and estimated arrival time
- Automatically computes routes, can be optimized for distance, time or computing time
|
To table of contents
Here we provide additional documentation, software updates and language files for the GARMIN StreetPilots:
- StreetPilot 2610:
-
- StreetPilot 2620:
-
- StreetPilot 2720:
-
- StreetPilot 2820:
-
- StreetPilot III:
-
- Quick start guide (in PDF format, 405 kB)
- User's guide (in PDF format, 693 kB)
- Firmware Upgrade V2.80 (Self-extracting ZIP-file, requires a PC and a connection cable, 1.1 MB)
- List of changes made with firmware upgrades
- Voice updates (replaces the language in the first space): (Self-extracting ZIP-file, requires a PC and a connection cable)
- Voice updates (replaces the language in the second space): (Self-extracting ZIP-file, requires a PC and a connection cable)
- StreetPilot Atlantic ColorMap:
-
- StreetPilot Atlantic:
-
![[ Get Acrobat Reader ]](../bilder/get-acrobat-reader.gif) |
If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free. |
To table of contents
You may order the GARMIN StreetPilot 2610/2620/2720 either:
- Click on the price to add this item to the shopping basket
![[ Show shopping basket ]](../warenkorb/warenkorb.gif)
- Via the Internet using this form
- By fax:
Please read our terms and conditions.
To table of contents
Specifications and packaging of the products are subject to change without notice.
![[ HTML 4.01 compliant ]](../bilder/valid-html401.gif) |
TRAMsoft GmbH
Laettenweg 19 / CH-8335 Hittnau / Switzerland
Telephone: +41 44 995 1570 / Contact
Last modification: 01/25/2010 (RA)
(This document was created with TRAMsoft XbCMS V1.3-00, does not require any browser specific features and is compliant with the W3C standard "HTML 4.01 Transitional") |
![[ TRAMsoft Logo ]](../bilder/TRAMsoft_logo.gif) |

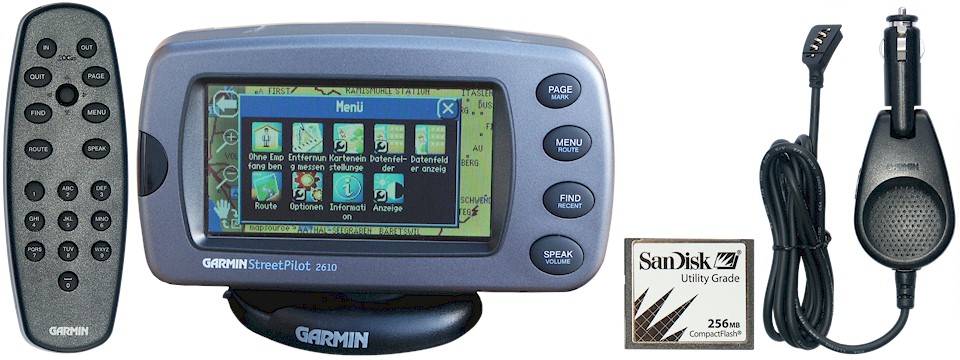

![[ GARMIN StreetPilot 2610/2620 with infrared remote control, 256 MB CF memory card and power cord with loudspeaker ]](garmin_streetpilot-2610_big.jpg)
