The models of the GPSMAP 66 series support the Russian GLONASS and the European GALILEO satellites

Rugged hand held GPS devices with large color display, integrated base map, auto-routing, slot for uSD memory card, high-speed USB interface, electronic compass, barometrical altimeter, support for WiFi and wireless communication with compatible devices. The GPSMAP 66st comes furthermore with pre-installed maps TopoActive Europe East and West. Both models support the US GPS, the Russian GLONASS and the European GALILEO satellites.

The devices of the GARMIN GPSMAP 66 series are very easy to use thanks to their keys, user friendly graphical interface and support for multiple languages. These devices can not only receive the signals of the US GPS satellites, but also those of the Russian GLONASS and the European GALILEO satellites. This provides improved accuracy of the position indication, particularly under difficult conditions such as in cities with tall buildings, in narrow valleys, near steep cliffs and in dens forests. This is especially helpful when searching for geocaches. They consume little power, one set of batteries lasts up to one week in expedition mode. Both models come with a pre-installed world-wide base map. They provide 15 GB rsp. 9 GB free built-in memory to store even more detailed information, such as local roads, restaurants, public buildings and other points of interest. They are equipped with a high-speed USB interface, a tilt-compensated electronic compass, a barometrical altimeter, can receive data from an optional heart rate monitor, an optional speed/cadence sensor, an optional temperature sensor etc., can communicate via WiFi, exchange information wireless with compatible devices and they are equipped with a slot for an optional uSD memory card in the battery compartment.

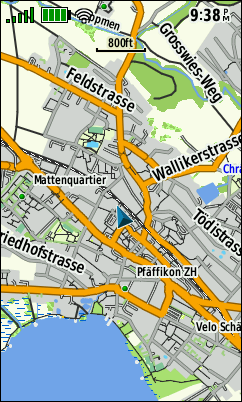

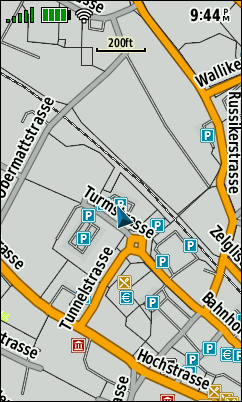

The GPSMAP 66st comes with pre-installed maps TopoActive Europe East and West which support auto-routing. The extremely sensitive antenna provides navigation information outdoors, in cars, in trains or even in airplanes (see MapSource examples).


Contents: Series - Features - Overview - Main Pages - Prices - Options - Downloads - Order


GARMIN GPSMAP 66 series:

Both models provide the same functions; however, the GPSMAP 66st comes with TopoActive Europe East and West installed:

  GARMIN GPSMAP 66s GARMIN GPSMAP 66st
Feature / Model GARMIN GPSMAP 66s GARMIN GPSMAP 66st
Available built-in memory 16 GB 16 GB¹
Slot for optional uSD memory card YES YES
Barometrical altimeter YES YES
Electronic compass YES (3D²) YES (3D²)
Interface High-speed USB Highspeed USB
Wireless data exchange YES YES

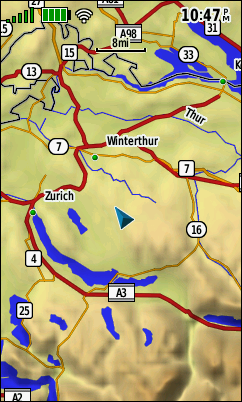

Pre-installed maps Base map Base map plus TopoActive Europe East and West
Receive data from optional ANT sensors YES YES
Price from CHF 448 / EUR 391 from CHF 498 / EUR 435

¹) The pre-installed maps TopoActive Europe East and West occupy approx. 6 GB of the built-in 16 GB, leaving about 9 GB for user data and other maps.
²) Tilt-compensated compass, does not require to hold the device level for accurate readings.

To table of contents To table of contents

Features:

Information for navigation:

Additional features:

To table of contents To table of contents

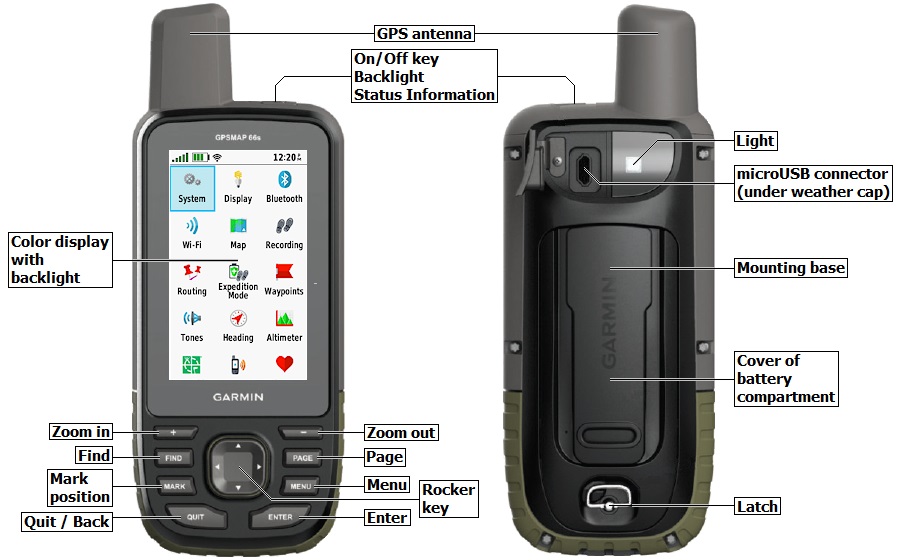

GARMIN GPSMAP 66s/st overview:

Unit features of the GARMIN GPSMAP 66s/st
To table of contents To table of contents

Main pages of the GPSMAP 66s/st:

Note: The images below show the display of the GPSMAP 66s/st in true resolution (240x400 pixels). This does not necessarily mean that the display is shown it its true size (38x63 mm, 1.5x2.5 inches). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures are just examples. For the data fields, there is a choice of 95 values, see selection.

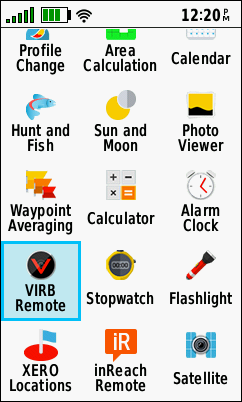

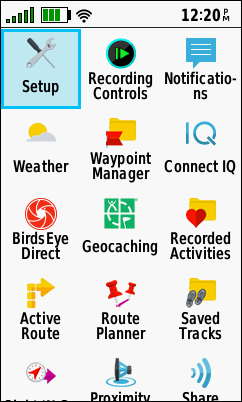

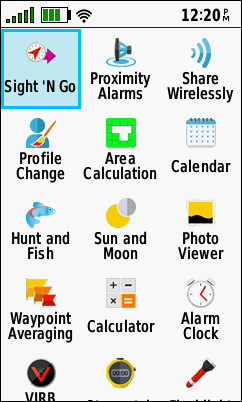

Main Menu 1 (small symbols) Main Menu 2 (small symbols) Main Menu 3 (small symbols) Main Menu as a List
GARMIN GPSMAP 66s/st - Main Menu (small symbols, 1 of 3) GARMIN GPSMAP 66s/st - Main Menu (small symbols, 2 of 3) GARMIN GPSMAP 66s/st - Main Menu (small symbols, 3 of 3) GARMIN GPSMAP 66s/st - Main Menu as a List
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Setup - Manage device settings
  • Information and settings about recording the travelled path (tracking)
  • Notifications
  • Weather forecast
  • Manage waypoints
  • Manage Connect IQ Apps

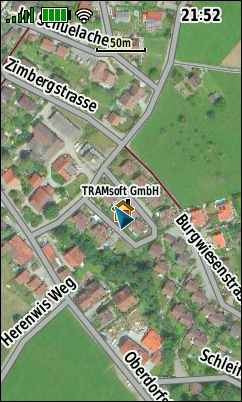

  • Manage BirdsEye satellite imageries
  • Manage geocaches
  • Manage active track
  • Manage active route
  • Manage routes
  • Manage archieved tracks
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Sight and go - Point at target and lock direction
  • Manage proximity alarms
  • Share data wireless with compatible devices
  • Switch profile
  • Size of the area enclosed by the track
  • Calender
  • Information related to hunting and fishing
  • Sunrise/sunset, moonrise/moonset and moon phases
  • Photo viewer
  • Waypoint Averaging: Increase the precision of the position indication by calculating the average position value of multiple measures
  • Calculator with standard operations and trigonometrical functions
  • Alarm clock, can turn on the device
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Remote control for optional VIRB action camera
  • Stopwatch with split times (laps)
  • Flashlight with blinking and SOS function
  • XERO locations of XERO options
  • Remote control for optional inReach devices
  • Signal strength and position of the satellites

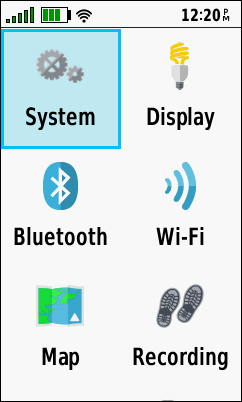

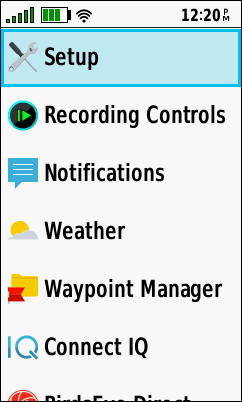

The Main Menu can also be set to large symbols like the Setup shown below.
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Setup - Manage device settings
  • Information and settings about recording the travelled path (tracking)
  • Notifications
  • Weather forecast
  • Manage waypoints
  • Manage Connect IQ Apps

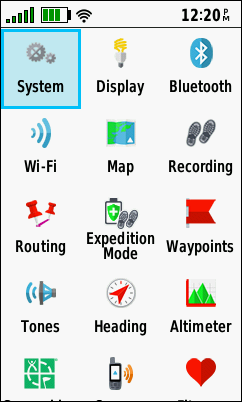

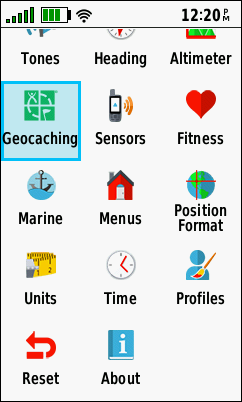

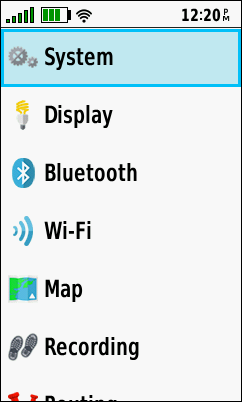

Setup 1 (small symbols) Setup 2 (small symbols) Setup (large symbols) Setup as a List
GARMIN GPSMAP 66s/st - Setup (small symbols, 1 of 2) GARMIN GPSMAP 66s/st - Setup (small symbols, 2 of 2) GARMIN GPSMAP 66s/st - Setup (large symbols) GARMIN GPSMAP 66s/st - Setup as a List
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • System settings: GPS mode, language, communication configuration, etc.
  • Display settings: Backlight, battery save mode, appearance, etc.
  • Pair with other BlueTooth devices
  • WiFi settings and manage networks
  • Map settings: Orientation, dashboard, level of details, enable and disable maps, etc.
  • Track settings (recording the travelled path): Interval, archiving, color, etc.
  • Routing settings: Activity, calculation method, avoidances, etc.
  • Configure expedition mode
  • Configure naming of saved waypoints
  • Configure tones
  • Configure heading indication
  • Altimeter settings: Mode (barometer or altimeter), profile type, calibrate altitude, etc.
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Geocache settings: Appearance, manage found caches, configure filters, program chirp devices, etc.
  • Configure ANT- and XERO sensors: Pair with and manage heart rate monitors, speed and cadence sensors, etc.
  • Fitness settings: Auto lap, type of activity, manage user profile, etc.
  • Marine settings: Marine chart mode, appearance, manage alarms
  • Menu settings: Manage style, items, order, etc.
  • Position format settings: Select map datum and spheroid
  • Configure units
  • Time settings: 12 or 24 hours format, select time zone
  • Create and manage profiles
  • Reset trip data, delete waypoints and tracks, reset settings, etc.
  • System info: Software version, unit ID, etc.
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • System settings: GPS mode, language, communication configuration, etc.
  • Display settings: Backlight, battery save mode, appearance, etc.
  • Pair with other BlueTooth devices
  • WiFi settings and manage networks
  • Map settings: Orientation, dashboard, level of details, enable and disable maps, etc.
  • Track settings (recording the travelled path): Interval, archiving, color, etc.
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • System settings: GPS mode, language, communication configuration, etc.
  • Display settings: Backlight, battery save mode, appearance, etc.
  • Pair with other BlueTooth devices
  • WiFi settings and manage networks
  • Map settings: Orientation, dashboard, level of details, enable and disable maps, etc.
  • Track settings (recording the travelled path): Interval, archiving, color, etc.

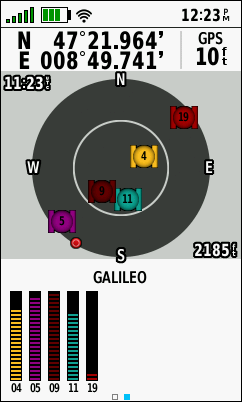

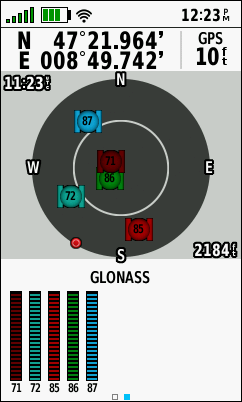

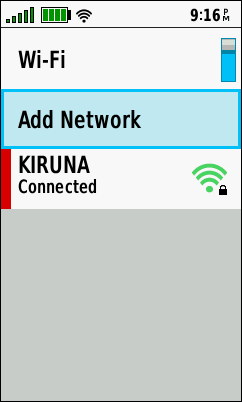

GPS Satellites GLONASS Satellites GALILEO Satellites WiFi Settings
GARMIN GPSMAP 66s/st - GPS Satellites GARMIN GPSMAP 66s/st - GLONASS Satellites GARMIN GPSMAP 66s/st - GALILEO Satellites GARMIN GPSMAP 66s/st - WiFi Settings

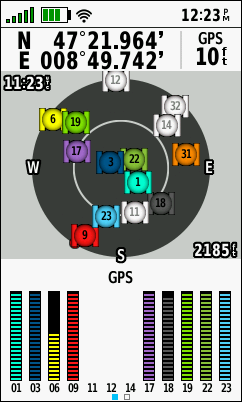

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Coordinates of the current location
  • Accuracy of the position indication
  • Current time (UTC)
  • Position of the satellites in the sky
  • Current elevation above sea level
  • Strength of the GPS satellites signals
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Coordinates of the current location
  • Accuracy of the position indication
  • Current time (UTC)
  • Position of the satellites in the sky
  • Current elevation above sea level
  • Strength of the GLONASS satellites signals
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Coordinates of the current location
  • Accuracy of the position indication
  • Current time (UTC)
  • Position of the satellites in the sky
  • Current elevation above sea level
  • Strength of the GALILEO satellites signals
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • WiFi status
  • Add new network
  • Manage known networks

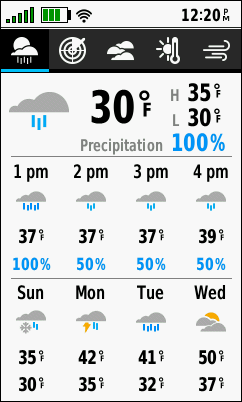

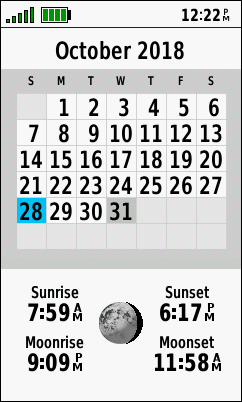

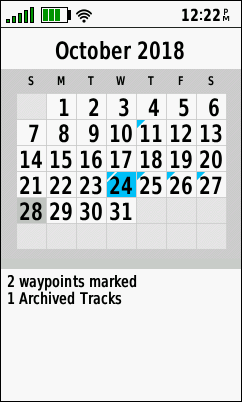

Calculator Calender Sun / Moon Weather Forecast
GARMIN GPSMAP 66s/st - Calculator GARMIN GPSMAP 66s/st - Calender GARMIN GPSMAP 66s/st - Sun / Moon GARMIN GPSMAP 66s/st - Weather Forecast

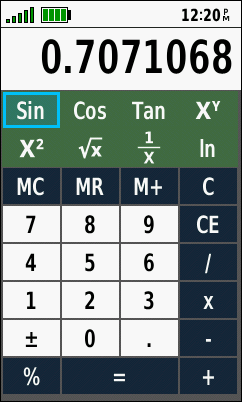

  • Status line with GPS signal strength, battery status and current time

  • Result
  • Mathematical functions
  • Memory operations
  • Numbers and operations
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Month and year
  • Calender with current day (gray), highlighted day (blue) and days with events (blue icon at top left corner)
  • Events at the highlighted date
  • Status line with GPS signal strength, battery status and current time

  • Calender with current day (gray) and highlighted day (blue)
  • Time of sunrise/sunset and moonrise/moonset plus moon phase at the highlighted date
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Current weather forecast / change location for forecast / weather radar / cloud cover / wind conditions
  • Current weather
  • Hourly forecast
  • Daily forecast
  • Requires working WiFi connection

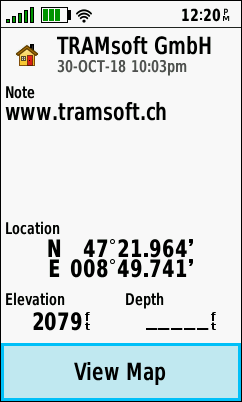

Waypoints Waypoint Waypoint Averaging Stop Watch
GARMIN GPSMAP 66s/st - Waypoints GARMIN GPSMAP 66s/st - Waypoint GARMIN GPSMAP 66s/st - Waypoint Averaging GARMIN GPSMAP 66s/st - Stop Watch

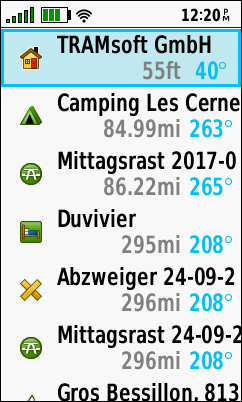

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • List of waypoints with symbol, name, distance and direction from the current location
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Symbol, name and date of last modification
  • Note
  • Coordinates
  • Elevation above sea level
  • Depth
  • View waypoint on map

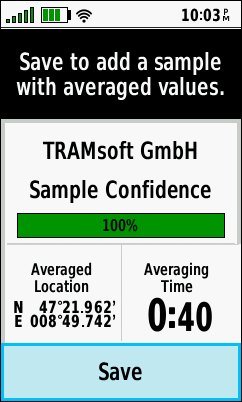

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Increases the accuracy of the waypoint's position by averaging multiple readings
  • Name of the waypoint
  • Accuracy (progress)
  • Coordinates of the averaged position
  • Elapsed time
  • Save averaged coordinates of the waypoint

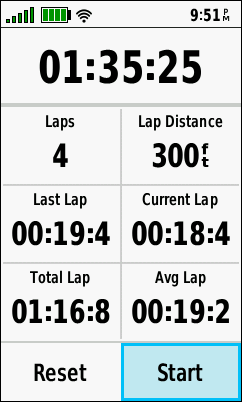

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Elapsed time (stop watch)
  • Number of completed laps
  • Distance travelled during the current lap
  • Duration of the last completed lap
  • Elapsed time for the current lap
  • Elapsed time until last completed lap
  • Average lap time
  • Mark lap / Reset watch
  • Start / stop watch

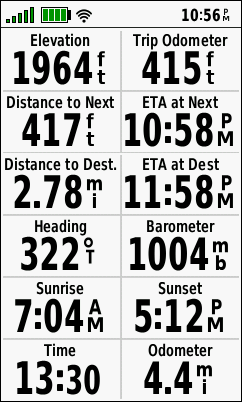

Trip Computer
Small Data Fields
Trip Computer
Mixed Data Fields
Trip Computer
Large Data Fields
Elevation Profile
GARMIN GPSMAP 66s/st - Trip Computer (small data fields) GARMIN GPSMAP 66s/st - Trip Computer (mixed data fields) GARMIN GPSMAP 66s/st - Trip Computer (large data fields) GARMIN GPSMAP 66s/st - Elevation Profile
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Current elevation above sea level
  • Distance travelled (trip odometer)
  • Current distance to the next waypoint or turn
  • Estimated arrival time at the next turn
  • Current distance to the final destination
  • Estimated arrival time at the final destination
  • Direction in which you are currently moving
  • Calibrated current air pressure (barometer)
  • Time of sunrise at the current position
  • Time of sunset at the current position
  • Trip time since last reset
  • Total distance travelled since last reset

For each data field, you can choose from 95 different values1)

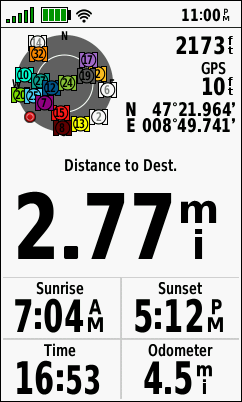

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Satellite dashboard with position of the satellites in the sky, current elevation above sea level, accuracy of the position indication, coordinates of the current location
  • Current distance to the final destination
  • Time of sunrise at the current position
  • Time of sunset at the current position
  • Trip time since last reset
  • Total distance travelled since last reset

For each data field, you can choose from 95 different values1)

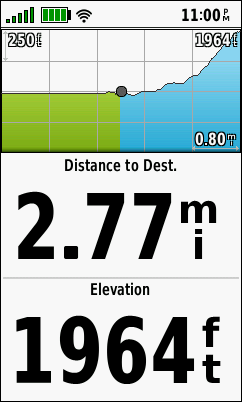

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Höhenprofil-Anzeige mit Höhenprofil der zurückgelegten Wegstrecke (grün), Höhenprofil der geplanten Route (blau) und Massstäben
  • Current distance to the final destination
  • Current elevation above sea level

For each data field, you can choose from 95 different values1)

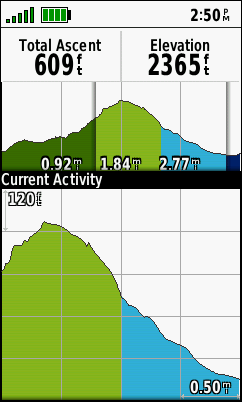

  • Status line with GPS signal strength, battery status and current time

  • Total distance ascended
  • Current elevation above sea level
  • Elevation profile of the travelled path (green) and the planned route (blue) plus distances
  • Enlarged elevation profile with scales

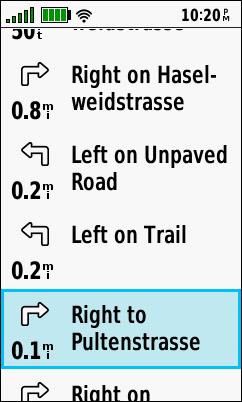

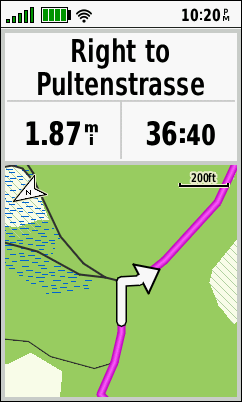

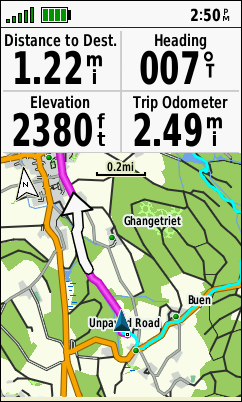

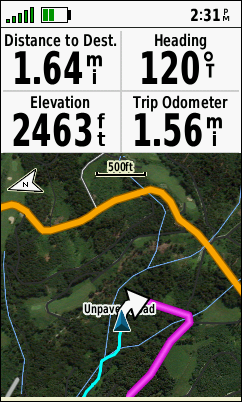

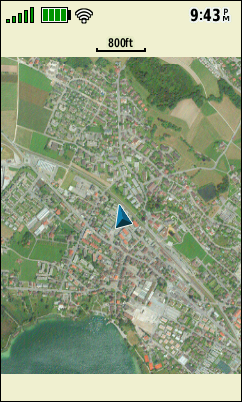

Route on BirdsEye Route on Map Zoom Directions
GARMIN GPSMAP 66s/st - Route on BirdsEye GARMIN GPSMAP 66s/st - Route on Map GARMIN GPSMAP 66s/st - Zoom GARMIN GPSMAP 66s/st - Directions
Note: These features require a map product which supports routing, e.g. the pre-installed map TopoActive Europe (GPSMAP 66st only) or an optional map such as Topo Switzerland or City Navigator Europe NT, see MapSource.
  • Status line with GPS signal strength, battery status and current time

  • Current distance to the final destination
  • Direction in which you are currently moving
  • Current elevation above sea level
  • Distance travelled (trip odometer)

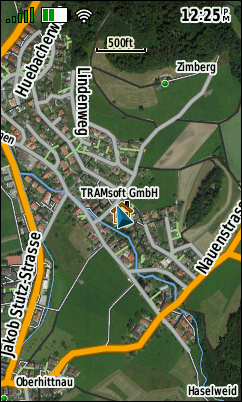

  • BirdsEye satellite image with current position (blue triangle), travelled path (blue line), planned route (violet line) and turn (white arrow)

For each data field, you can choose from 95 different values1)

  • Status line with GPS signal strength, battery status and current time

  • Current distance to the final destination
  • Direction in which you are currently moving
  • Current elevation above sea level
  • Distance travelled (trip odometer)
  • Map TopoActive Europe with current position (blue triangle), travelled path (blue line), planned route (violet line) and turn (white arrow)

For each data field, you can choose from 95 different values1)

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Direction
  • Distance to this turn
  • Estimated travel time to this turn
  • Enlarged map (zoom) with planned route (violet line) and turn (white arrow)
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Type of turn, distance between turns and directions

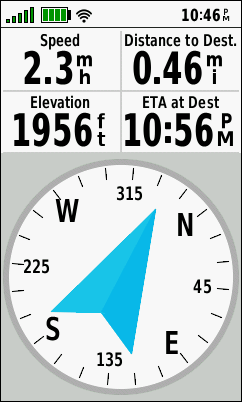

Compass Track - Info Track - Map Track - Elevation Profile
GARMIN GPSMAP 66s/st - Compass GARMIN GPSMAP 66s/st - Track (Info) GARMIN GPSMAP 66s/st - Track (Map) GARMIN GPSMAP 66s/st - Track (Elevation Profile)
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Current speed
  • Current distance to the final destination
  • Current elevation above sea level
  • Estimated arrival time at the final destination
  • Compass with direction to next turn

For each data field, you can choose from 95 different values1)

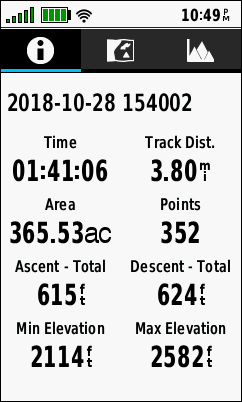

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Info / Map / Elevation Profile
  • Name of the track
  • Duration
  • Travelled distance
  • Area enclosed by the travelled path
  • Number of track points
  • Total distance ascended
  • Total distance descended
  • Lowest altitude above sea level during the trip
  • Highest altitude above sea level during the trip

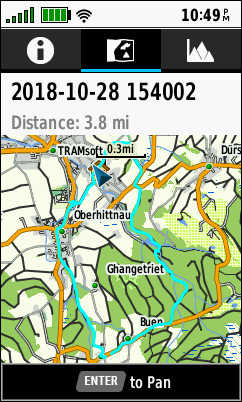

  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Info / Map / Elevation Profile
  • Name of the track with distance
  • Map with current position (blue triangle), waypoint (house icon) and travelled path (blue line)
  • Status line with GPS signal strength, battery status, WiFi indicator and current time

  • Info / Map / Elevation Profile
  • Date and start time of the trip
  • Altitude at the marked location (red rsp. gray dot)
  • Elevation profile with distances
  • Enlarged elevation profile with scales
Switzerland
(Base Map)

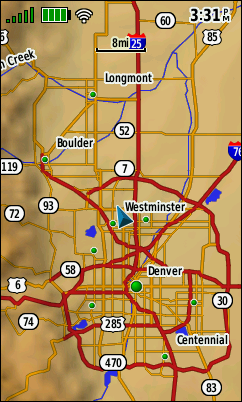

USA
(Base Map)

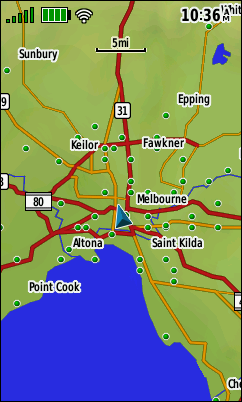

Australia
(Base Map)

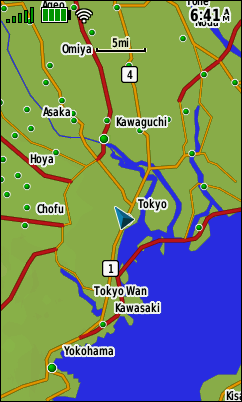

Japan
(Base Map)
GARMIN GPSMAP 66s/st - Base Map Example Switzerland GARMIN GPSMAP 66s/st - Base Map Example USA GARMIN GPSMAP 66s/st - Base Map Example Australia GARMIN GPSMAP 66s/st - Base Map Example Japan
Examples of pre-installed base map (both models)
TopoActive Europe TopoActive Europe Details Topo Switzerland - Vector View Topo Switzerland - Pattern View
GARMIN GPSMAP 66st - TopoActive Europe GARMIN GPSMAP 66st - TopoActive Europe Details GARMIN GPSMAP 66s/st - Topo Switzerland (Vector View) GARMIN GPSMAP 66s/st - Topo Switzerland (Pattern View)
Examples pre-installed maps TopoActive Europe (GPSMAP 66st only)

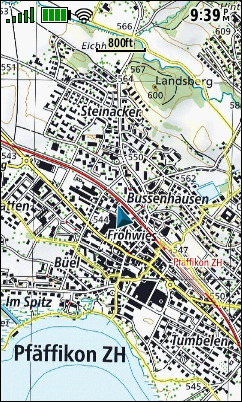

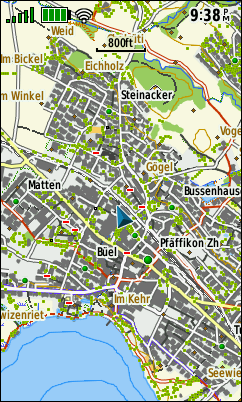

Example Topo Switzerland in vector view Example Topo Switzerland in pattern view
These screenshots were taken with the optional map Topo Switzerland.

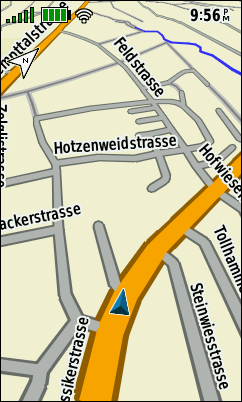

City Navigator Europe
Automotive Mode
BirdsEye (1 of 3) BirdsEye (2 of 3) BirdsEye (3 of 3)
GARMIN GPSMAP 66s/st - City Navigator Europe (Automotive Mode) GARMIN GPSMAP 66s/st - BirdsEye (1 of 3) GARMIN GPSMAP 66st - BirdsEye (2 of 3) GARMIN GPSMAP 66st - BirdsEye (3 of 3)
Example taken with the optional map City Navigator Europe in automotive mode, see MapSource
Examples of BirdsEye satellite images at different scales

Data fields selection on pages with user selectable data fields:

No Name Explanation
1 24 hr. Max. Temperature Maximum ambient temperature during the last 24 hours (requires optional temperature sensor).
2 24 hr. Min. Temperature Minimum ambient temperature during the last 24 hours (requires optional temperature sensor).
3 Accuracy of GPS Current accuracy of your GPS determined position.
4 Activity Distance Distance travelled during the current activity.
5 Alarm Timer Time of the countdown timer
6 Ambient Pressure Uncalibrated current pressure.
7 Ascent - Average Average vertical distance of ascent since the last reset.
8 Ascent - Maximum Maximum ascent rate.
9 Ascent - Total Total vertical distance of ascent since the last reset.
10 Automotive Turn Direction of the next turn in the route.
11 Average Cadence Average number of revolutions of the crank arm per minute (requires optional bike speed and cadence sensor).
12 Average HR %Max. Average percentage of maximum heart rate for the current activity (heart beats per minute, requires optional heart rate monitor).
13 Average Lap Average time for all completed laps for the current activity.
14 Avg. HR Average heart rate for the current activity (heart beats per minute, requires optional heart rate monitor).
15 Barometer Calibrated current pressure.
16 Battery Level Battery charge level.
17 Bearing Compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
18 Cadence Revolutions of the crank arm per minute (requires optional bike speed and cadence sensor).
19 Calories Calories burned during the current activity (requires optional power meter).
20 Compass Heading Direction the device is pointing to based on the built in electronic compass.
21 Course Direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
22 Current Lap Elapsed time for the current lap.
23 Date Current date.
24 Depth Depth of water (requires NMEA input from a sonar device).
25 Descent - Average Average vertical distance of descents.
26 Descent - Maximum Maximum descent rate.
27 Descent - Total Total distance descended.
28 Distance to Dest. Current distance to the final destination.
29 Distance to Next Current distance to the next waypoint or turn.
30 Elapsed Activity Time Elapsed time for the current activity including rest periodes.
31 Elevation Current altitude above sea level.
32 Elevation Above Ground Current elevation above ground.
33 Elevation - Maximum Highest altitude above sea level since last reset.
34 Elevation - Minimum Lowest altitude above sea level since last reset.
35 ETA at Destination Estimated arrival time at the final destination.
36 ETA at Next Estimated arrival time at the next turn.
37 Glide Ratio Ratio of horizontal distance travelled to vertical distance.
38 Glide Ratio to Dest. Glide ratio required to ascend rsp. descend from your current position and elevation to the destination's elevation.
39 GPS Elevation Current altitude above sea level based on GPS.
40 GPS Heading Direction in which you are currently moving based on GPS.
41 GPS Signal Strength Strength of satellites' signals.
42 Grade Current grade computed from elevation change over distance.
43 Heading Direction in which you are currently moving.
44 Heart Rate Current heart rate (heart beats per minute, requires optional heart rate monitor).
45 Heart Rate - %Max. Percentage of maximum heart rate (heart beats per minute, requires optional heart rate monitor).
46 Heart Rate Zone Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires optional heart rate monitor).
47 Lap Ascent Total vertical distance of ascent for the current lap.
48 Lap Cadence Average number of revolutions of the crank arm per minute (cadence) for the current lap (requires optional bike speed and cadence sensor).
49 Lap Descent Total vertical distance of descent for the current lap.
50 Lap Distance Distance travelled during the current lap.
51 Lap Heart Rate Percent Average percentage of maximum heart rate for the for lap (heart beats per minute, requires optional heart rate monitor).
52 Lap HR Average heart rate for the for the current lap (heart beats per minute, requires optional heart rate monitor).
53 Laps Number of completed laps during the current activity.
54 Lap Speed Average speed for the current lap.
55 Last Lap Ascent Total vertical distance of ascent for the last completed lap.
56 Last Lap Cadence Average number of revolutions of the crank arm per minute (cadence) for the last completed lap (requires optional bike speed and cadence sensor).
57 Last Lap Descent Total vertical distance of descent for the last completed lap.
58 Last Lap Distance Distance travelled during the last completed lap.
59 Last Lap HR Average heart rate for the for the last completed lap (heart beats per minute, requires optional heart rate monitor).
60 Last Lap Speed Average speed for the last completed lap.
61 Last Lap Time Duration of the last completed lap.
62 Location (lat/lon) Current location as latitude/longitude coordinates.
63 Location (selected) Current location indicated in the selected format (datum).
64 Location of Destination Coordinates of the final destination of the current route.
65NoneBlank data field.
66 Odometer Total distance travelled since last reset*).
67 Off Course The distance you are off the desired course.
68 Pointer Arrow that indicates the direction to travel to the next point on a route.
69 Speed Current speed.
70 Speed Limit Current speed limit based on the information provided by the map (requires optional map with speed data).
71 Speed - Maximum Maximum speed since last reset*).
72 Speed - Moving Avg. Average speed without the time with no motion since the last reset*).
73 Speed - Overall Avg. Average speed including the time with no motion since the last reset*).
74 Stopwatch Timer Elapsed time for the current activity.
75 Sunrise Time of sunrise at the current position.
76 Sunset Time of sunset at the current position.
77 Temperature Current ambient temperature (requires optional temperature sensor).
78 Temperature - Water Temperature of the water (requires an external data acquisition device).
79 Time of Day Current time.
80 Time to Destination Estimated travel time to the final destination.
81 Time to Next Estimated travel time to the next waypoint (turn, crossing etc.).
82 To Course Direction to the planned course.
83 Total Lap Elapsed time for all completed laps.
84 Trip Odometer Travelled distance since last reset*).
85 Trip Time Total elapsed time including the time with no motion since last reset*).
86 Trip Time - Moving Time with motion since last reset*).
87 Trip Time - Stopped Time without motion since last reset*).
88 Turn Direction of and distance to the next turn on a route.
89 Velocity Made Good Rate of closure to the destination, based upon your current speed and course.
90 Vertical Dist. to Dest. Elevation difference between the current position and the final destination of the current route.
91 Vertical Dist. to Next Elevation difference between the current position and the next turn along the current route.
92 Vertical Speed Current ascending or descending speed.
93 Vertical Speed to Dest. Required rate of ascent or descent to reach the final destination.
94 Waypoint at Dest. Name of the waypoint at the final destination.
95 Waypoint at Next Name of the next waypoint along the current route.

*) You may reset the trip-counters, the Odometer and the Maximum Speed separately.

To table of contents To table of contents

Prices:

GARMIN GPSMAP 66s Add item to shopping basket CHF 448 | EUR 391
the package includes the following items:
  • GARMIN GPSMAP 66s
  • USB connection cable for data exchange with a PC
  • Carabiner
  • Printed quick start guides in different languages including English, French, German and Italian
  • Owner's manuals and quick start guides in various languages are available for download either from here or from www.garmin.com
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
Swiss Flag  GARMIN GPSMAP 66s plus µSD memory card Topo Switzerland Pro Add item to shopping basket CHF 698 | EUR 610
the package includes the following items:
  • Everything listed above under GPSMAP 66s
  • Topographic Swiss map on µSD memory card (full coverage) [examples and details]
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
GARMIN GPSMAP 66st Add item to shopping basket CHF 498 | EUR 435
the package includes the following items:
  • GARMIN GPSMAP 66st
  • Pre-installed map TopoActive Europe, see description
  • USB connection cable for data exchange with a PC
  • Carabiner
  • Printed quick start guides in different languages including English, French, German and Italian
  • Owner's manuals and quick start guides in various languages are available for download either from here or from www.garmin.com
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
Swiss Flag  GARMIN GPSMAP 66st plus µSD memory card Topo Switzerland Pro Add item to shopping basket CHF 748 | EUR 653
the package includes the following items:
  • Everything listed above under GPSMAP 66st
  • Topographic Swiss map on µSD memory card (full coverage) [examples and details]
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
To table of contents To table of contents

Options:

Car mounting kit, including:
  • Mounting kit with suction cup
  • Adhesive disk to be fixed on the dashboard
  • Power cord for car cigarette lighter
Add item to shopping basket CHF 64 | EUR 56 [Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard
(Does not include mounting bracket)
Add item to shopping basket CHF 18 | EUR 16 [Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard
(Does not include mounting bracket)
Add item to shopping basket CHF 21 | EUR 18 [Picture and details]
Power cord for car cigarette lighter
(one such power cord comes with the car navigation pack)
Add item to shopping basket CHF 29 | EUR 25 [Picture and details]
Power supply without USB cable Add item to shopping basket CHF 22 | EUR 19 [Picture and details]
USB cable for data exchange with PC
(one such USB cable comes with the GPSMAP 66s/st)
Add item to shopping basket CHF 15 | EUR 13 [Picture and details]
Power/NMEA data cable with mini-USB connector and open ends Add item to shopping basket CHF 45 | EUR 39 [Picture and details]
Rechargeable NiMH battery pack Add item to shopping basket CHF 36 | EUR 31 [Picture and details]
Carabiner
(one such carabiner comes with the GPSMAP 66s/st)
Add item to shopping basket CHF 16 | EUR 14 [Picture and details]
Belt clip Add item to shopping basket CHF 13 | EUR 11 [Picture and details]
Retractable lanyard Add item to shopping basket CHF 37 | EUR 32 [Picture and details]
Backpack mount (tether) Add item to shopping basket CHF 30 | EUR 26 [Picture and details]
Bike mounting kit Add item to shopping basket CHF 15 | CHF 15 [Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 9 | EUR 8 [Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 16 | EUR 14 [Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 19 | EUR 17 [Picture and details]
Replacement strap for heart rate monitor Add item to shopping basket CHF 16 | EUR 14 [Picture and details]
Premium chest belt with heart rate monitor (soft fabric strap for more comfort) Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Replacement strap for premium heart rate monitor Add item to shopping basket CHF 65 | EUR 57 [Picture and details]
Speed sensor Add item to shopping basket CHF 59 | EUR 52 [Picture and details]
Cadence sensor Add item to shopping basket CHF 59 | EUR 52 [Picture and details]
Speed and cadence sensor Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Wireless Tempe temperature sensor Add item to shopping basket CHF 44 | EUR 38 [Picture and details]
Chirp geocaching beacon Add item to shopping basket CHF 25 | EUR 22 [Picture and details]

All options for the GARMIN GPSMAP 66s/st in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents To table of contents

Downloads:

Here we provide additional documentation and software updates:

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.
To table of contents To table of contents

Order:

To order the GARMIN GPSMAP 66s/st as well as options please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents To table of contents

Specifications and packaging of the products are subject to change without notice.


Home | GPS | Special Offers | Deutsch
