The models GPSMAP 276Cx support the Russian GLONASS satellites

Very rugged, portable, multi-functional GPS devices with brilliant 5 inch color display, GLONASS support, electronic 3D compass, barometrical altimeter, integrated base map, pre-installed recreational map of Europe, slot for µSD memory card, Blue Tooth, WLAN and USB interface, successor of the legendary GARMIN GPSMAP 276.

The GARMIN GPSMAP 276Cx is equipped with an integrated base map, a pre-installed recreational map of Europe, an electronic 3D compass (3D = tilt-compensated compass which means the device doesn't have to be held level for accurate reading of the heading), a barometrical altimeter, 7.2 GB of memory and a slot for an µSD memory card. It can communicate via Blue Tooth and WLAN and has an USB connector plus connectors for external power supply and an external GPS antenna. It supports autorouting - an optional map is required - and wireless data exchange with compatible devices. This device is suitable for outdoor activities (hiking, biking etc.) and thanks to its voice guidance also for navigation in vehicles - optional car mounting kit with built-in loudspeaker or optional headphone required for voice guidance. In addition, there is a marine mode for navigation on boats. It is easy to operate using keys, has a graphical interface in various languages plus a very sensitive GPS antenna. The display is easy to read and can be configured in many ways. The GPSMAP 276Cx is powered either by a rechargeable battery (included, lasts for up to 16 hours), three standard AA batteries (last for up to 8 hours) or by an external 12V source. This device can not only receive the signals of the U.S. GPS satellites, but also of the Russian GLONASS satellites. This provides improved accuracy of the position indication, particularly under difficult conditions such as in cities with tall buildings, in narrow valleys, near steep cliffs and in dens forests.


Contents: Features - Overview - Main Pages - Prices - Options - Downloads - Order


Features:

GARMIN GPSMAP 276Cx

Information for navigation:

Additional features:

To table of contents To table of contents

GARMIN GPSMAP 276Cx overview:

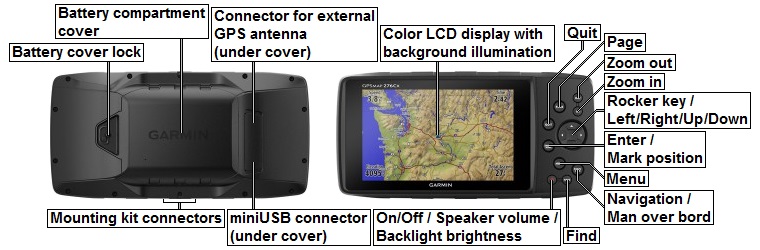

Unit features of the GARMIN GPSMAP 276Cx
To table of contents To table of contents

Main pages of the GPSMAP 276Cx:

The image below shows the display of the GPSMAP 276Cx in true resolution (800x480 pixels). This does not necessarily mean that the display is shown it its true size (110x66 mm). The actual size of this image depends on the properties of your display. All following images have been reduced to improve the appearance of this document. You can enlarge the images showing maps to their original size by clicking on them. Many of the pages are configurable, the pictures shown are just examples. For the data fields, there is a choice of 85 different values, see selection.

Main Menu
GARMIN GPSMAP 276Cx - Main Menu
  • Applications: GPS, Route, Waypoints, Track, Weather, Alarms, Calendar, Celestial, Messages and Setup.

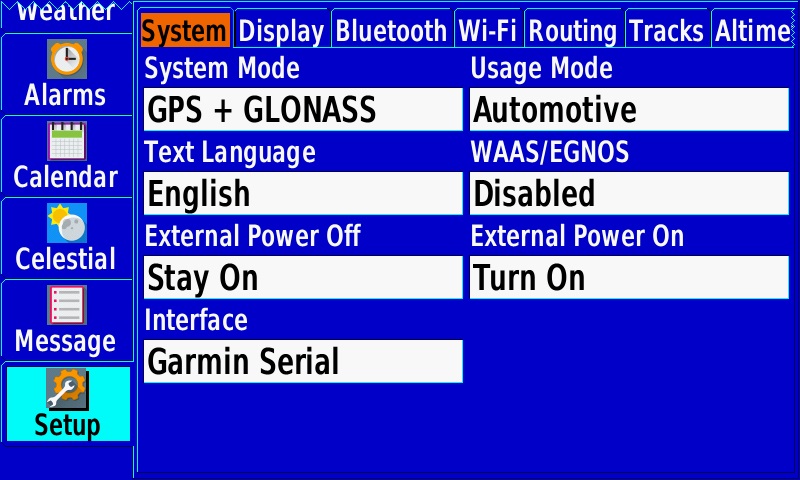

  • Setup: System, Display, Bluetooth, Wi-Fi, Routing, Tracks, Altimeter, Sound, ANT Sensors, Timer, Time, Units and Location.



Satellites Wi-Fi Settings Text Entry
GARMIN GPSMAP 276Cx - Satellites GARMIN GPSMAP 276Cx - Wi-Fi Settings GARMIN GPSMAP 276Cx - Text Entry
  • Applications (left column)

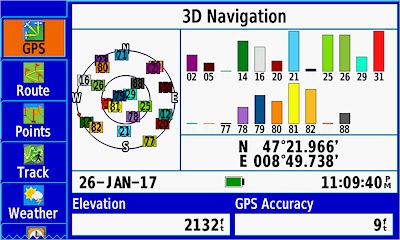

  • GPS status
  • Position of the satellites in the sky
  • Strength of the satellites' signals. Satellites with numbers between 65 and 96 indicate GLONASS satellites.
  • Coordinates of the current location
  • Current date, status of the rechargeable battery rsp. of the batteries, current time
  • Current elevation above sea level
  • Accuracy of the position indication
  • Applications (left column)

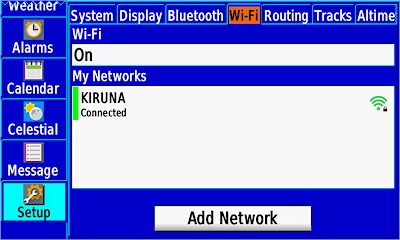

  • Wi-Fi status
  • List of the known networks with connection status, signal strength and encryption status
  • Add network

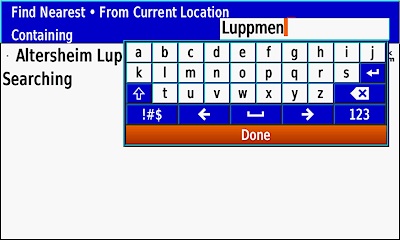

  • Example of text input

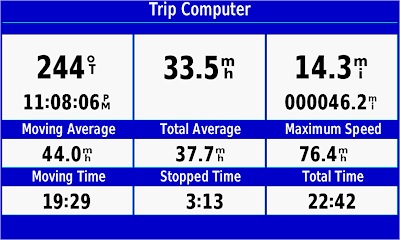

Trip Computer Two Columns Four Big Fields
GARMIN GPSMAP 276Cx - Trip Computer GARMIN GPSMAP 276Cx - Two Columns GARMIN GPSMAP 276Cx - Four Big Fields
  • Heading and time of day
  • Current speed
  • Trip odometer and accumulated travelled distance
  • Average speed without stopped time
  • Average speed including stopped time
  • Maximum speed
  • Time moving
  • Stopped time
  • Overall travel time

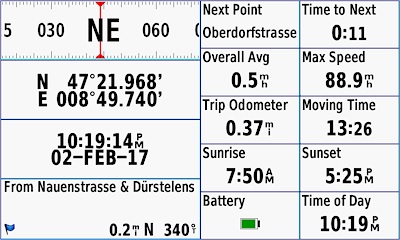

  • Current heading
  • Coordinates of the current location
  • Current time and date
  • Description, distance and direction to the next turn
  • Name of the next point
  • Average speed including stopped time
  • Trip odometer
  • Time of sunrise at the current location
  • Status of the rechargeable battery rsp. of the batteries
  • Time to next turn
  • Maximum speed since last reset
  • Time moving
  • Time of sunset at the current location
  • Current time

For the data fields, there is a choice of 85 different values, see selection.

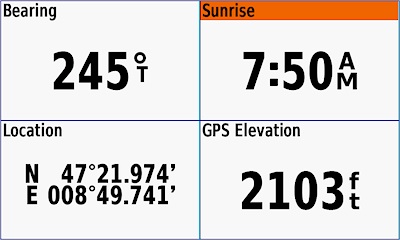

  • Direction to the final destination
  • Time of sunrise at the current location
  • Coordinates of the current location
  • Current elevation based on the GPS data

For the data fields, there is a choice of 85 different values, see selection.

Recreational Map of Europe - Gällivare Recreational Map of Europe - Hittnau Recreational Map of Europe - Pisa
GARMIN GPSMAP 276Cx - Recreational Map of Europe - Gaellivare GARMIN GPSMAP 276Cx - Recreational Map of Europe - Hittnau GARMIN GPSMAP 276Cx - Recreational Map of Europe - Pisa

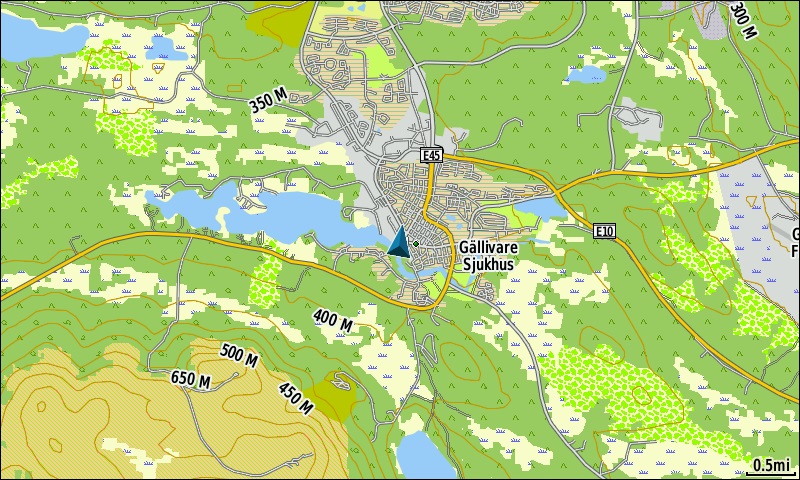

  • Map of Gällivare, Sweden
    (Click on the image to enlarge it to its original size)

(This picture was taken with the pre-installed recreational map of Europe)

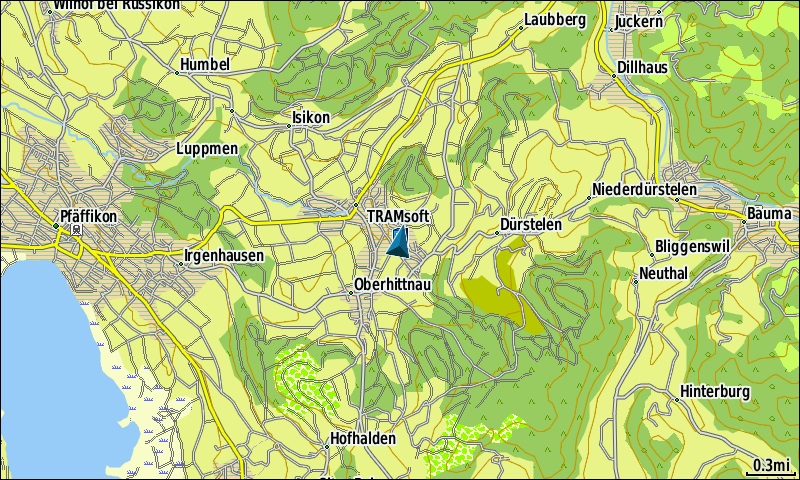

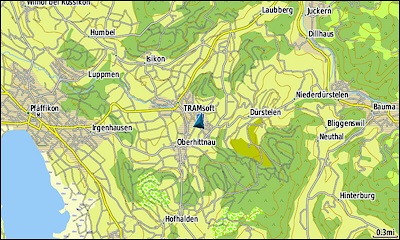

  • Map of Hittnau, Switzerland
    (Click on the image to enlarge it to its original size)

(This picture was taken with the pre-installed recreational map of Europe)

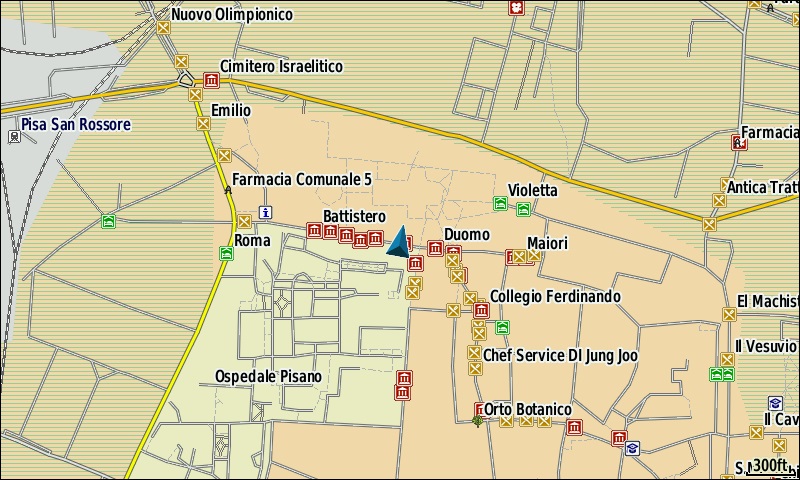

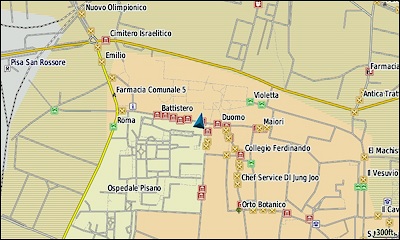

  • Map of Pisa, Italy
    (Click on the image to enlarge it to its original size)

(This picture was taken with the pre-installed recreational map of Europe)

Topo Switzerland - Pattern View Topo Switzerland - Vector View Compass
GARMIN GPSMAP 276Cx - Topo Switzerland - Pattern View GARMIN GPSMAP 276Cx - Topo Switzerland - Vector View GARMIN GPSMAP 276Cx - Compass

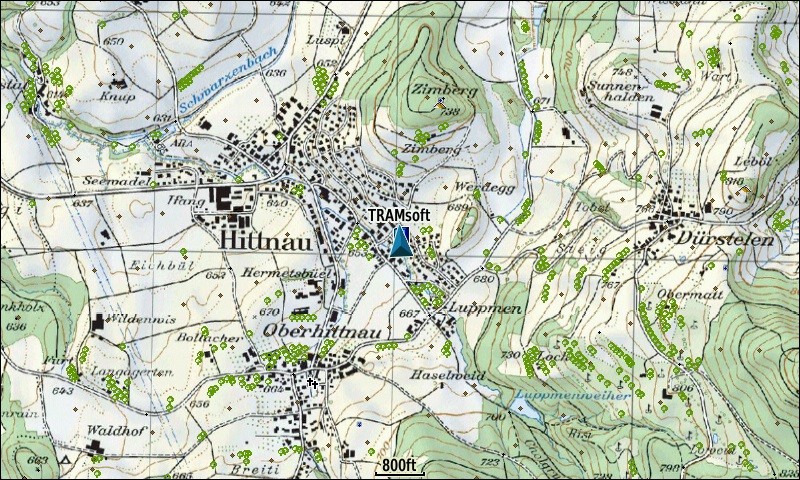

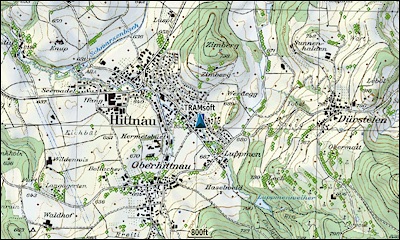

  • Map of Hittnau, Switzerland in pattern view - equivalent to the printed 1:25000 map
    (Click on the image to enlarge it to its original size)

(This picture was taken with the optional map Topo Switzerland Pro)

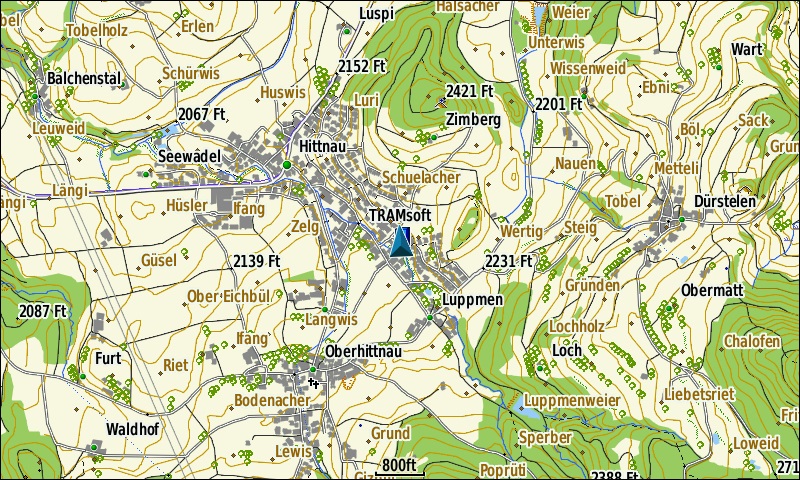

  • Map of Hittnau, Switzerland in vector view
    (Click on the image to enlarge it to its original size)

(This picture was taken with the optional map Topo Switzerland Pro)

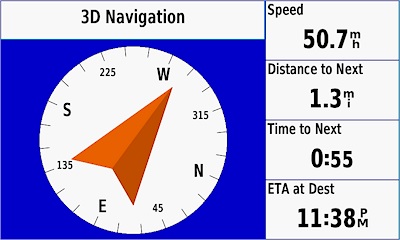

  • GPS status
  • Direction to destination
  • Current speed
  • Distance to next turn
  • Estimated travel time to next turn
  • Estimated arrival time at final destination

For the data fields, there is a choice of 85 different values, see selection.

Map of the Swiss Lakes - Luzern Map of the Swiss Lakes - Seedamm Marine Mode Map Settings
GARMIN GPSMAP 276Cx - Map of the Swiss Lakes - Luzern GARMIN GPSMAP 276Cx - Map of the Swiss Lakes - Seedamm GARMIN GPSMAP 276Cx - Marine Mode Map Settings

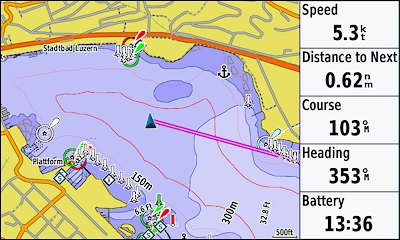

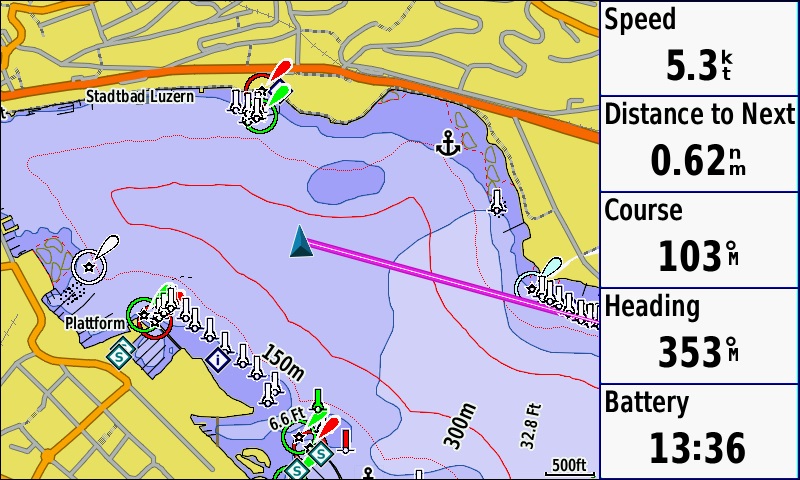

  • Map of the lake near Luzern, Switzerland
    (Click on the image to enlarge it to its original size)

(This picture was taken with the optional map of the Swiss Lakes)

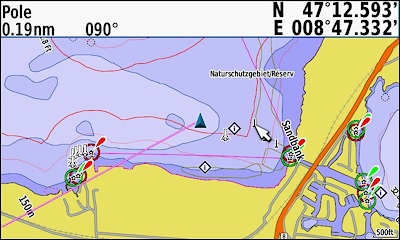

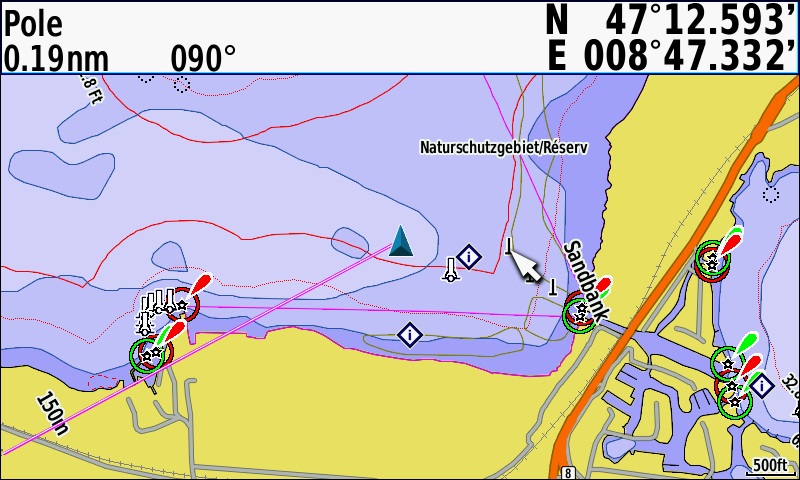

  • Map of the lake near the Seedamm Pfäffikon SZ, Switzerland
    (Click on the image to enlarge it to its original size)

(This picture was taken with the optional map of the Swiss Lakes)

  • Map of the Greifensee

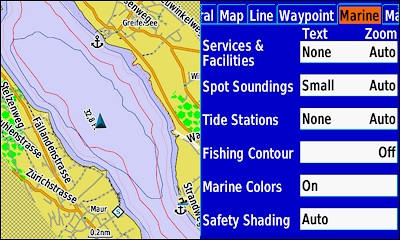

  • Map settings in marine mode

(This picture was taken with the optional map of the Swiss Lakes)

Street Map (Day Mode) Street Map (Night Mode) Street Map Auto Mode
GARMIN GPSMAP 276Cx - Street Map in Day Mode GARMIN GPSMAP 276Cx - Street Map in Night Mode GARMIN GPSMAP 276Cx - Street Map in Auto Mode

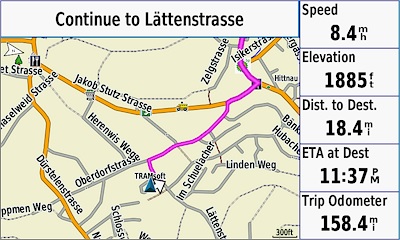

  • Direction
  • Map in day mode with current position (blue triangle), planned route (pink line) and next turn (white arrow)
    (Click on the image to enlarge it to its original size)
  • Current speed
  • Current elevation above sea level
  • Distance to final destination
  • Estimated arrival time at final destination
  • Trip odometer

For the data fields, there is a choice of 85 different values, see selection.

(This picture was taken with the optional map City Navigator Europe)

  • Direction

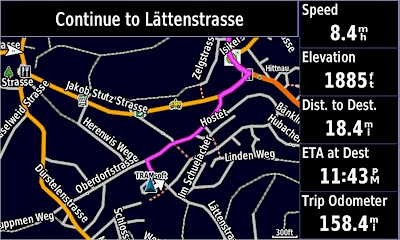

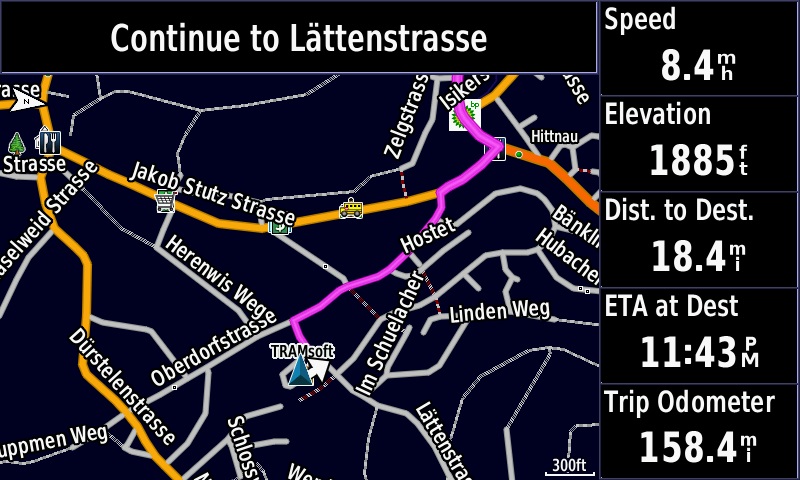

  • Map in night mode with current position (blue triangle), planned route (pink line) and next turn (white arrow)
    (Click on the image to enlarge it to its original size)
  • Current speed
  • Current elevation above sea level
  • Distance to final destination
  • Estimated arrival time at final destination
  • Trip odometer

For the data fields, there is a choice of 85 different values, see selection.

(This picture was taken with the optional map City Navigator Europe)

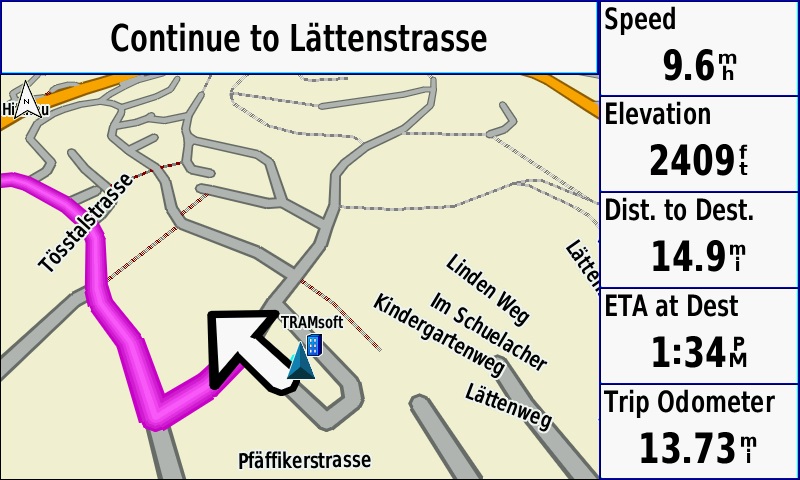

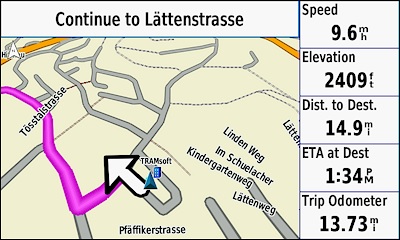

  • Direction
  • Map in auto mode with current position (blue triangle), planned route (pink line) and next turn (white arrow)
    (Click on the image to enlarge it to its original size)
  • Current speed
  • Current elevation above sea level
  • Distance to final destination
  • Estimated arrival time at final destination
  • Trip odometer

For the data fields, there is a choice of 85 different values, see selection.

(This picture was taken with the optional map City Navigator Europe)

Zoom Route - Directions Waypoint
GARMIN GPSMAP 276Cx - Zoom GARMIN GPSMAP 276Cx - Route - Directions GARMIN GPSMAP 276Cx - Waypoint

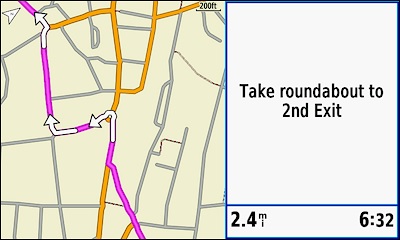

  • Enlargement of next turn (zoom)
  • Direction, distance and estimated travel time to next turn

(This picture was taken with the optional map City Navigator Europe)

  • Applications (left column)

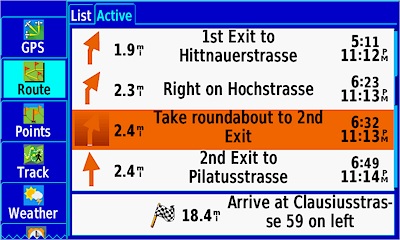

  • List of turns with type of turn, distance to turn, direction, estimated travel time to and estimated time of arrival at next turn
  • Final destination with distance from current location and description

(This picture was taken with the optional map City Navigator Europe)

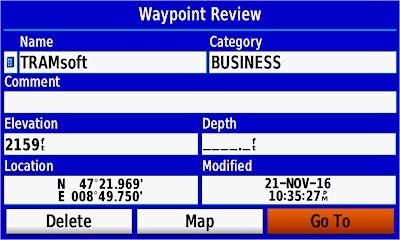

  • Symbol
  • Name of the waypoint
  • Category
  • Comment
  • Elevation
  • Depth
  • Coordinates of the waypoint
  • Date and time of the last modification
  • Delete waypoint
  • Show waypoint on map
  • Navigate to waypoint
Track - Summary Track - Map Elevation Profile
GARMIN GPSMAP 276Cx - Track - Summary GARMIN GPSMAP 276Cx - Track - Map GARMIN GPSMAP 276Cx - Elevation Profile

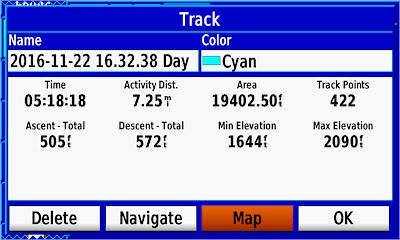

  • Name of the track
  • Color of the track on the map
  • Duration
  • Distance travelled
  • Area enclosed by the path
  • Number of trackpoints
  • Accumulated ascent
  • Accumulated descent
  • Minimum elevation
  • Maximum elevation

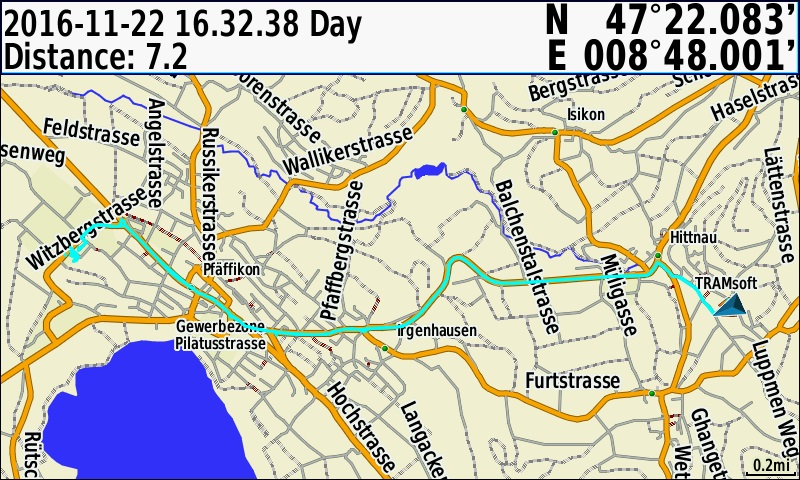

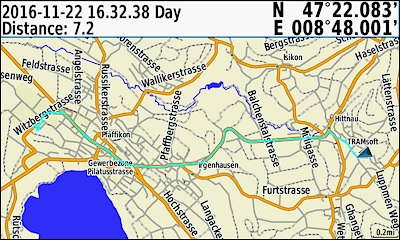

  • Name of the track, distance travelled, coordinates of the current location
  • Map with travelled path (track, blue line)
    (Click on the image to enlarge it to its original size)

(This picture was taken with the optional map City Navigator Europe)

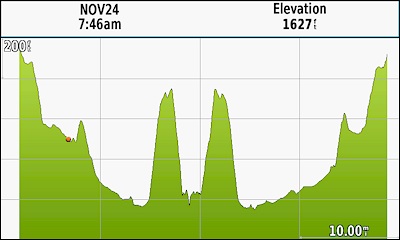

  • Date, time and elevation at the marked position (red dot)
  • Elevation profile with scales
Weather Sun and Moon Hunt and Fish
GARMIN GPSMAP 276Cx - Weather GARMIN GPSMAP 276Cx - Sun and Moon GARMIN GPSMAP 276Cx - Hunt and Fish
  • Applications (left column)

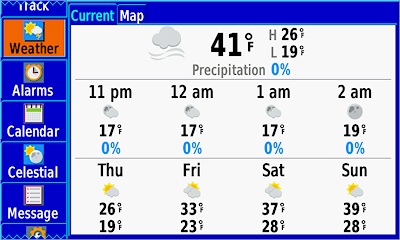

  • Weather forecast for the next four hours and the next four days

Note: This function requires an active Wi-Fi connection.

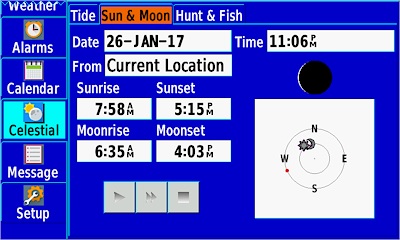

  • Applications (left column)
  • Date, time and location of the sun-earth-moon constellation
  • Sun-earth-moon constellation at the selected location at the selected time
  • Time of sunrise and sunset
  • Time of moonrise and moonset
  • Animation of the sun-earth-moon constellation

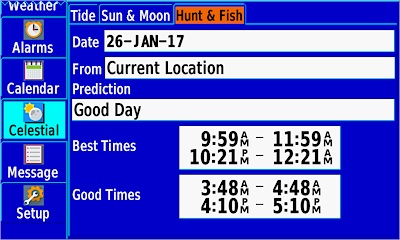

  • Applications (left column)
  • Date
  • Location
  • Prediction for hunting and fishing at the selected date for the selected location
  • Best times for hunting and fishing
  • Good times for hunting and fishing

Data fields selection:

No Name Explanation
1 24 hr. Max. Temperature Maximum ambient temperature during the last 24 hours (requires optional temperature sensor)
2 24 hr. Min. Temperature Minimum ambient temperature during the last 24 hours (requires optional temperature sensor)
3 Accuracy of GPS The current accuracy of your GPS determined position
4 Activity Distance Distance travelled during the current activity
5 Alarm Timer Current time of the countdown (set and start countdown on the alarm clock page)
6 Ambient Pressure The uncalibrated current pressure
7 Ascent - Average The average vertical distance of ascents
8 Ascent - Maximum The maximum ascent rate
9 Ascent - Total The total distance ascended
10 Automotive Turn Arrow symbol indicating the next turn
11 Average Cadence Average number of revolutions of the crank arm per minute (requires optional bike speed and cadence sensor)
12 Average HR %Max. Average heart rate in percentage of the maximum heart rate for the current activity (requires optional heart rate monitor)
13 Average HR Average heart rate for the current activity (requires optional heart rate monitor)
14 Barometer The calibrated current pressure
15 Battery Level Charge level of the recharchable battery rsp. the batteries
16 Battery Timer Estimated remaining operation time of the recharchable battery rsp. the batteries
17 Bearing The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
18 Cadence Revolutions of the crank arm per minute (requires optional bike speed and cadence sensor)
19 Calories Calories burned during the current activity
20 Compass Heading Current heading based on the electronic compass
21 Course The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment
22 Date Current date
23 Depth Depth of water (requires NMEA input from a sonar device)
24 Descent - Average The average vertical distance of descents
25 Descent - Maximum The maximum descent rate
26 Descent - Total The total distance descended
27 Distance to Destination Current distance to the final destination
28 Distance to Next Current distance to the next waypoint
29 Distance to Point Distance to next turn
30 Elapsed Activity Time Duration of the current activity
31 Elevation Current altitude above sea level
32 Elevation - Maximum Highest altitude above sea level since last reset
33 Elevation - Minimum Lowest altitude above sea level since last reset
34 Elevation Above Ground Current elevation above ground (requires a map with sufficiant elevation data)
35 Estimated Time to VNAV Estimated time to vertical navigation
36 ETA at Destination Estimated arrival time at the final destination
37 ETA at Next Estimated arrival time at the next turn
38 Glide Ratio The ratio of horizontal distance travelled to vertical distance
39 Glide Ratio to Destination The glide ratio required to descend from your current position and elevation to the destination's elevation
40 GPS Elevation Current elevation based on GPS data
41 GPS Heading Current heading based on GPS data
42 GPS Status Strength of satellites' signals
43 Grade Current grade, computed based on distance and elevation gain or loss (must be moving)
44 Heading The direction in which you are currently moving
45 Heart Rate Current heart rate (heart beats per minute, requires optional heart rate monitor)
46 Heart Rate - %Max. Current heart rate in percentage of the maximum heart rate (heart beats per minute, requires optional heart rate monitor)
47 Heart Rate Zone Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires optional heart rate monitor)
48 Location (lat/lon) Current location as latitude/longitude coordinates
49 Location (selected) Current location indicated in the selected format (datum)
50 Location of Destination Coordinates of the final destination
51 Next Course Direction to the next waypoint along the current route
52 Next Turn Required change to the current heading to get to the next waypoint on the current route
53 None Empty field
54 Odometer Total distance travelled since last reset*)
55 Off Course The distance you are off the desired course
56 Pointer Arrow that indicates the direction to travel to the next point on a route
57 Speed Current speed
58 Speed - Maximum Maximum speed since last reset*)
59 Speed - Moving Avg. Average speed without the time with no motion since the last reset*)
60 Speed - Overall Avg. Average speed including the time with no motion since the last reset*)
61 Speed Limit Current speed limit (requires a map which provides this information)
62 Sunrise Time of sunrise at the current position
63 Sunset Time of sunset at the current position
64 Temperature Current ambient temperature (requires optional temperature sensor)
65 Temperature - Water Temperature of the water (requires an external data acquisition device)
66 Time (UTC) Current time based on UTC (Universal Time Coordinated)
67 Time of Day Current time
68 Time to Destination Estimated travel time to the final destination
69 Time to Next Estimated travel time to the next waypoint
70 Time to Point Estimated travel time to the next turn
71 To Course Direction to the planned course
72 Trip Odometer Travelled distance since last reset*)
73 Trip Time Total elapsed time since last reset*)
74 Trip Time - Moving Time with motion since last reset*)
75 Trip Time - Stopped Time without motion since last reset*)
76 Turn The direction of and the distance to the next turn on a route
77 User Timer User timer
78 Velocity Made Good The rate of closure to the destination, based upon your current speed and course
79 Vertical Distance to Destination Elevation difference between current position and final destination
80 Vertical Distance to Next Elevation difference between current position and next turn
81 Vertical Speed Current ascending or descending speed
82 Vertical Speed to Destination The measurement of your rate of ascent to a predetermined elevation
83 Voltage Current voltage of the recharchable battery rsp. the batteries
84 Waypoint at Destination Name of the waypoint at the final destination
85 Waypoint at Next Name of the next waypoint

*) You may reset the trip-counters, the Odometer and the Maximum Speed separately.

To table of contents To table of contents

Prices:

GARMIN GPSMAP 276Cx Add item to shopping basket CHF 828 | EUR 723
the package includes the following items:
  • GARMIN GPSMAP 276Cx
  • Pre-installed recreational map of Europe
  • Power supply (100..240 V)
  • Rechargeable battery
  • Marine mounting kit
  • USB connection cable for data exchange with a PC
  • Printed quick start guides in different languages including English, French, German and Italian
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
GARMIN GPSMAP 276Cx Marine-Pack Add item to shopping basket CHF 958 | EUR 837
the package includes the following items:
  • GARMIN GPSMAP 276Cx
  • Pre-installed recreational map of Europe
  • Map of the Swiss lakes on µSD memory card
  • Power supply (100..240 V)
  • Rechargeable battery
  • Marine mounting kit
  • USB connection cable for data exchange with a PC
  • Printed quick start guides in different languages including English, French, German and Italian
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
GARMIN GPSMAP 276Cx TRAMsoft Auto-Pack Add item to shopping basket CHF 988 | EUR 863
the package includes the following items:
  • GARMIN GPSMAP 276Cx
  • Pre-installed recreational map of Europe
  • Car mounting kit with extra large suction cup and power cord for car cigarette lighter
  • Street map City Navigator Europe on µSD memory card
  • Power supply (100..240 V)
  • Rechargeable battery
  • Marine mounting kit
  • USB connection cable for data exchange with a PC
  • Printed quick start guides in different languages including English, French, German and Italian
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
GARMIN GPSMAP 276Cx TRAMsoft Auto-Pack with Lifetime Update Add item to shopping basket CHF 1098 | EUR 959
the package includes the following items:
  • GARMIN GPSMAP 276Cx
  • Pre-installed recreational map of Europe
  • Car mounting kit with extra large suction cup and power cord for car cigarette lighter
  • 16 GB µSD memory card with street map City Navigator Europe plus Lifetime Update
  • Power supply (100..240 V)
  • Rechargeable battery
  • Marine mounting kit
  • USB connection cable for data exchange with a PC
  • Printed quick start guides in different languages including English, French, German and Italian
  • We will install the most recent version of the firmware available at the time of shipment
  • We configure the GPS before shipping, so it comes ready to use
To table of contents To table of contents

Options:

Car mounting kit with suction cup, including:
  • Mounting kit with suction cup and built-in speaker
  • Power cord for car cigarette lighter
(one such mounting kit comes with the TRAMsoft-Packs)
Add item to shopping basket CHF 98 | EUR 86 [Picture and details]
Car mounting kit with friction mount, including:
  • Mounting kit with built-in speaker
  • Friction mount
  • Power cord for car cigarette lighter
Add item to shopping basket CHF 139 | EUR 121 [Picture and details]
Marine mounting kit (one such mounting kit comes with the GPSMAP276Cx) Add item to shopping basket CHF 65 | EUR 57 [Picture and details]
Motorcycle mounting bracket with power and audio cable including screen protectors
(Mounting kit not included)
Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Mounting kit for motorcycle mounting bracket Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Handlebar mounting kit including screen protectors Add item to shopping basket CHF 42 | EUR 37 [Picture and details]
Mounting kit with extra large suction cup including adhesive disk to be fixed on the dashboard
(Does not include mounting bracket)
(one such suction cup comes with the TRAMsoft-Packs)
Add item to shopping basket CHF 22 | EUR 19 [Picture and details]
Dashboard discs Add item to shopping basket CHF 17 | EUR 15 [Picture and details]
Rechargeable battery
(one such battery comes with the GPSMAP 276Cx)
Add item to shopping basket CHF 48 | EUR 42 [Picture and details]
Power cord for car cigarette lighter fitting car mounting kit
(one such power cord comes with the TRAMsoft-Packs)
Add item to shopping basket CHF 24 | EUR 21 [Picture and details]
Power cord for car cigarette lighter with USB connector Add item to shopping basket CHF 29 | EUR 25 [Picture and details]
Power supply without USB cable Add item to shopping basket CHF 22 | EUR 19 [Picture and details]
Power supply with USB cable
(One such power supply comes with the GPSMAP 276Cx)
Add item to shopping basket CHF 24 | EUR 21 [Picture and details]
USB cable for data exchange with PC
(one such USB cable comes with the GPSMAP 276Cx)
Add item to shopping basket CHF 15 | EUR 13 [Picture and details]
Power/NMEA data cable with mini-USB connector and open ends Add item to shopping basket CHF 45 | EUR 39 [Picture and details]
Protective cover Add item to shopping basket CHF 32 | EUR 28 [Picture and details]
Screen protectors Add item to shopping basket CHF 22 | EUR 19 [Picture and details]
Case Add item to shopping basket CHF 39 | EUR 34 [Picture and details]
Premium chest belt with heart rate monitor (soft fabric strap for more comfort) Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Replacement strap for premium heart rate monitor Add item to shopping basket CHF 65 | EUR 57 [Picture and details]
Speed sensor Add item to shopping basket CHF 59 | EUR 52 [Picture and details]
Cadence sensor Add item to shopping basket CHF 59 | EUR 52 [Picture and details]
Speed and cadence sensor Add item to shopping basket CHF 79 | EUR 69 [Picture and details]
Foot-Pod Add item to shopping basket CHF 89 | EUR 78 [Picture and details]
Wireless Tempe temperature sensor Add item to shopping basket CHF 44 | EUR 38 [Picture and details]
External GPS antenna Add item to shopping basket CHF 44 | EUR 38 [Picture and details]
Extension cable for external GPS antenna Add item to shopping basket CHF 45 | EUR 39 [Picture and details]
Adapter cable BNC to MCX for external GPS antenna Add item to shopping basket CHF 29 | EUR 25 [Picture and details]
Adapter cable MCX to BNC for external GPS antenna Add item to shopping basket CHF 39 | EUR 34 [Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 9 | EUR 8 [Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 16 | EUR 14 [Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 19 | EUR 17 [Picture and details]
32.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 21 | EUR 18 [Picture and details]

All options for the GARMIN GPSMAP 276Cx in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents To table of contents

Downloads:

Here we provide additional documentation and software updates:

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.
To table of contents To table of contents

Order:

To order the GARMIN GPSMAP 276Cx as well as options please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents To table of contents

Specifications and packaging of the products are subject to change without notice.


Home | GPS | Special Offers | Deutsch
